Model NO.
MB15X301

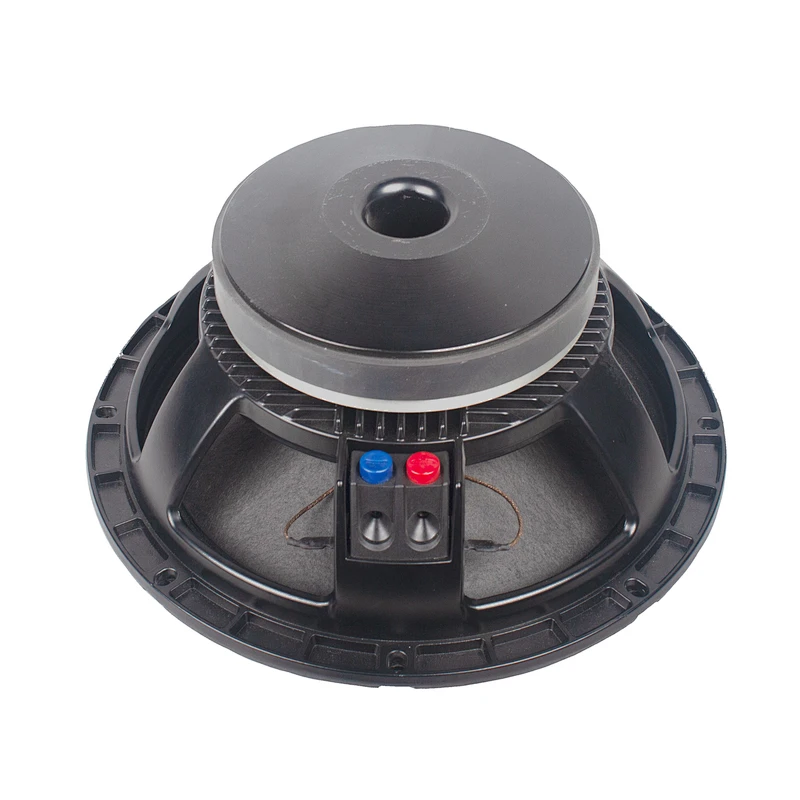

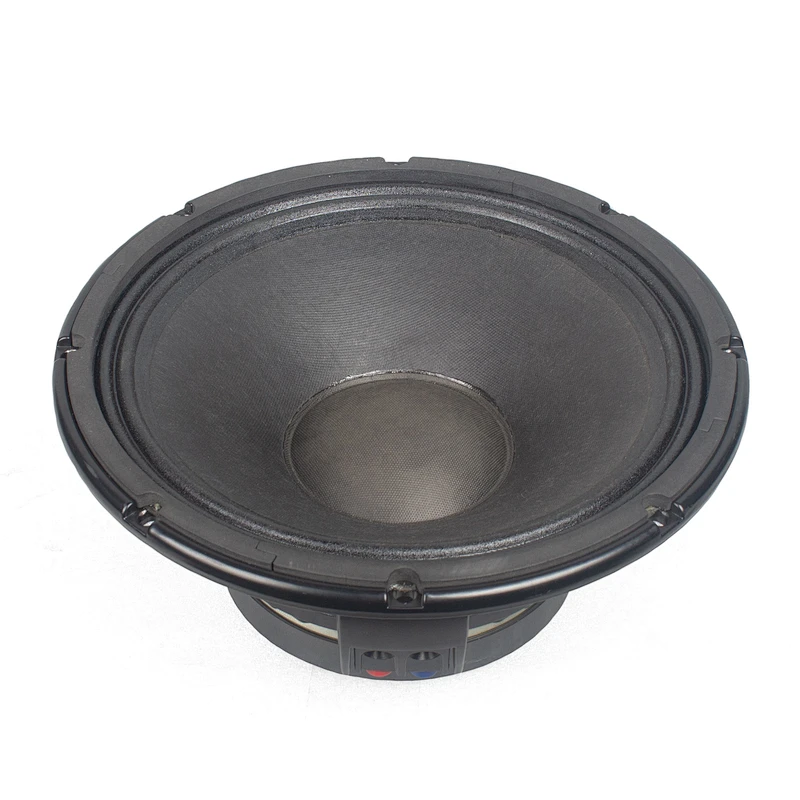

MB15X301 15" Professional Woofer 8 Ohm
Quantity:

MB15X301 15"Professional Woofer 8 Ohm

The Speakers MB15X301 15"midbass driver boasts a blisteringly loud sensitivity rating of 99dB 1W/1m, which combined with its substantial 700 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 380 mm/ 15 in nominal diameter
  • 1400w continuous program power capacity
  • 76 mm/ 3 in LF vioce coil
  • 99 dB sensitivity

SPECIFICATIONS

ModelMB15X301
Nominal Diameter380 mm / 15 in
Nominal Impedance8 Ω
Rated Power AES700 W
Continuous Program Power1400 W
Sensitivity @ 1W/1M99 dB
Frequency Range45 - 2500 Hz
Voice Coil Diameter76 mm / 3 in
Voice Coil Winding Depth19 mm / 0.74 in
Magnetic Gap Depth10 mm / 0.39 in

Constructive Characteristics

MagnetFerrite
Basket MaterialStamp steel frame
Voice Coil Winding MaterialCCA-W
Voice Coil Former MaterialCopper

Cone Material

Paper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter394 mm (15.51 in)
Bolt Circle Diameter372 mm (14.65 in)
Baffle Cutout Diameter354 mm (13.94 in)
Depth150 mm (5.91 in)
Net Weight8.2 kg / 18.04 lbs
Shipping Weight9.0 kg / 19.80 lbs
Shipping Box

404x404x165mm(0.027m³)

15.91x15.91x6.50 in
