Model NO.
HKE-3206

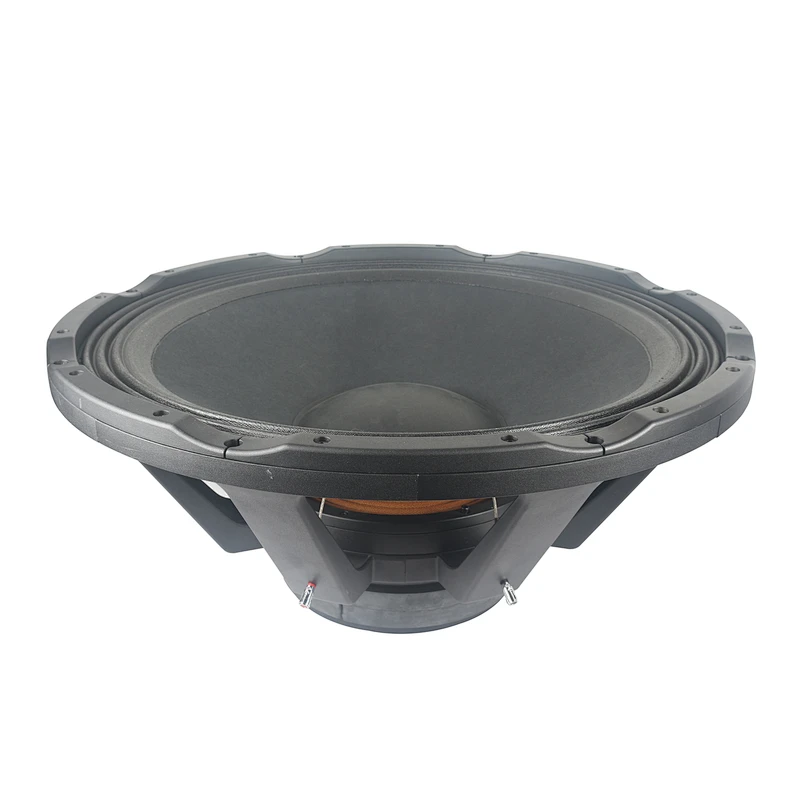

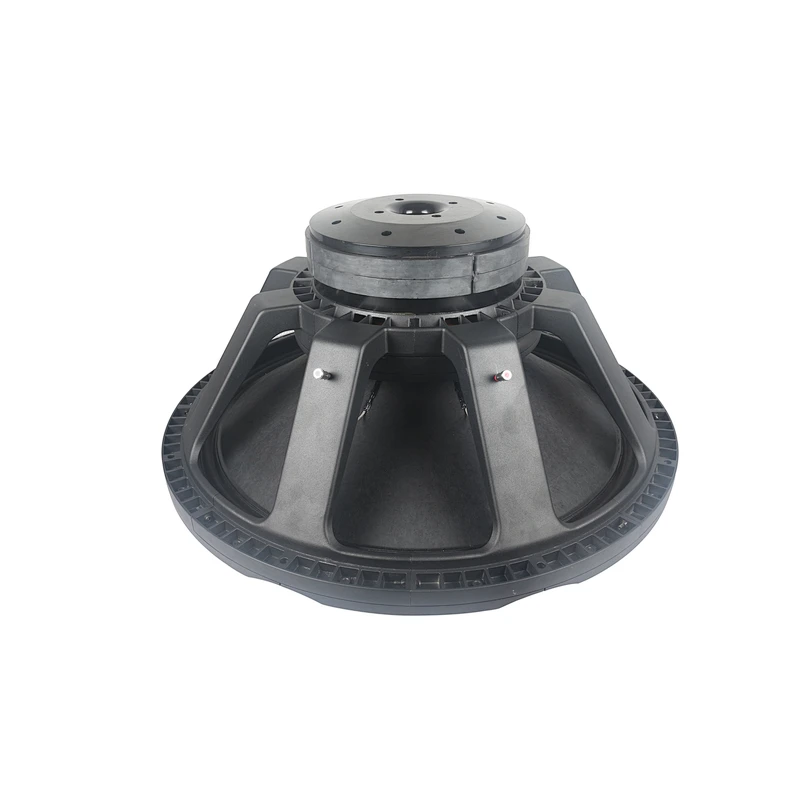

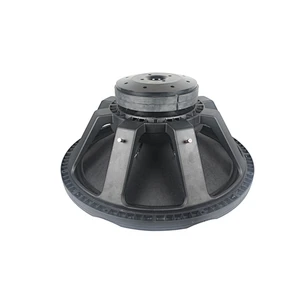

HKE-3206 32" Professional Woofer 8 Ohm
Quantity:

HKE-3206 32"Professional Woofer 8 Ohm

The Speakers HKE-3206 32"midbass driver boasts a blisteringly loud sensitivity rating of 95.5 dB 1W/1m, which combined with its substantial 3000 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 840 mm/ 32 in nominal diameter
  • 6000 w continuous program power capacity
  • 152 mm/ 6 in voice coil
  • 95.5 dB sensitivity

SPECIFICATIONS

ModelHKE-3206
Nominal Diameter840 mm / 32 in
Nominal Impedance8 Ω
Rated Power AES3000 W
Continuous Program Power6000 W
Sensitivity @ 1W/1M95.5 dB
Frequency RangeFs-600 Hz
Voice Coil Diameter152 mm / 6 in
Number of Layer2
Kind of LayerOutside/inside

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialGlass Fibre

Cone Material

Paper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter840 mm (33.07 in)
Bolt Circle Diameter810 mm (31.89 in)
Baffle Cutout Diameter765 mm (30.12 in)
Depth330 mm (12.99 in)
Net Weight57.5 kg / 126.88 lbs
Shipping Weight67.5 kg / 148.94 lbs
Shipping Box

885x885x390mm(0.305m³)

34.84x34.84x15.35 in
