GST-181200
GST-181200
GST-181200
GST-181200
GST-181200

GST-181200

Model NO.
GST-181200

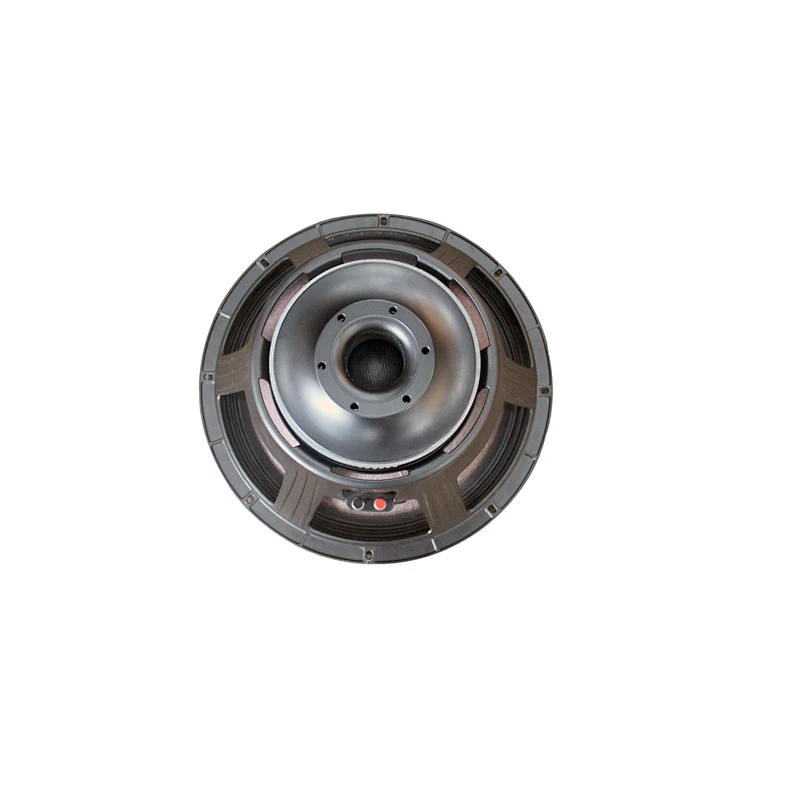

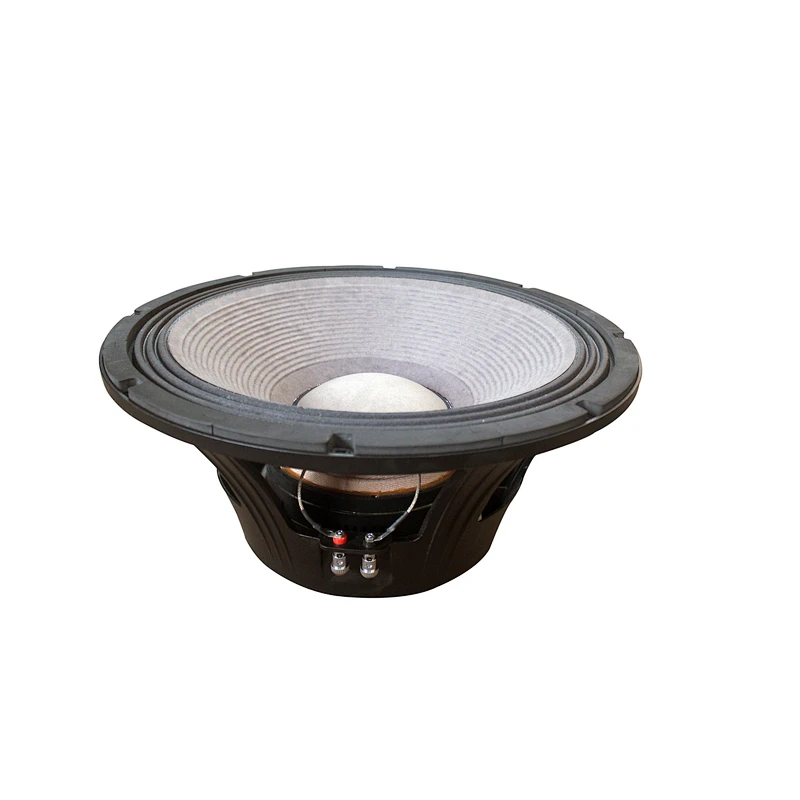

GST Series Big Power 18 Inch Woofer With 1000W
Quantity:

GST Series Big Power 18 Inch Woofer With 1000W

The GST-181200 features an aluminum die cast chassis that includes P Audio Auto Balanced Cooling design that minimizes coil and magnet structure heating, and further improves system performance.

FEATURES

  • 4 Inch Medium Format Voice Coil
  • 2000 Watts Peak Power Handling
  • Active Balanced Cooling
  • Ferrite Magnetics
  • Aluminum wire Inside/Outside Coil Design
  • Single Spider Suspension
  • Integrated Demodulation Rings
  • Die Cast Aluminum Chassis

SPECIFICATIONS

ModelGST-181200
Nominal Diameter457 mm / 18 in
Nominal Impedance8 Ω
Rated Power AES1200 W
Continuous Program Power2400 W
Sensitivity @ 1W/1M96 dB
Frequency Range30 - 1000 Hz
Voice Coil Diameter101.6 mm / 4 in
Voice Coil Winding Depth27 mm / 1.06 in
Magnetic Gap Depth15 mm / 0.59 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCoppor wire
Voice Coil Former MaterialGlass Fibre
Cone MaterialPaper
Surround MaterialCloth
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter477 mm (18.78 in)
Bolt Circle Diameter456 mm (17.95 in)
Baffle Cutout Diameter426 mm (16.77 in)
Depth231.5 mm (9.11 in)
Net Weight16 kg / 35.3 lbs
Shipping Weight18.2 kg / 40.1 lbs
Shipping Box487x487x247mm(0.059m³)19.17x19.17x9.72 in
