Model NO.
18PS100

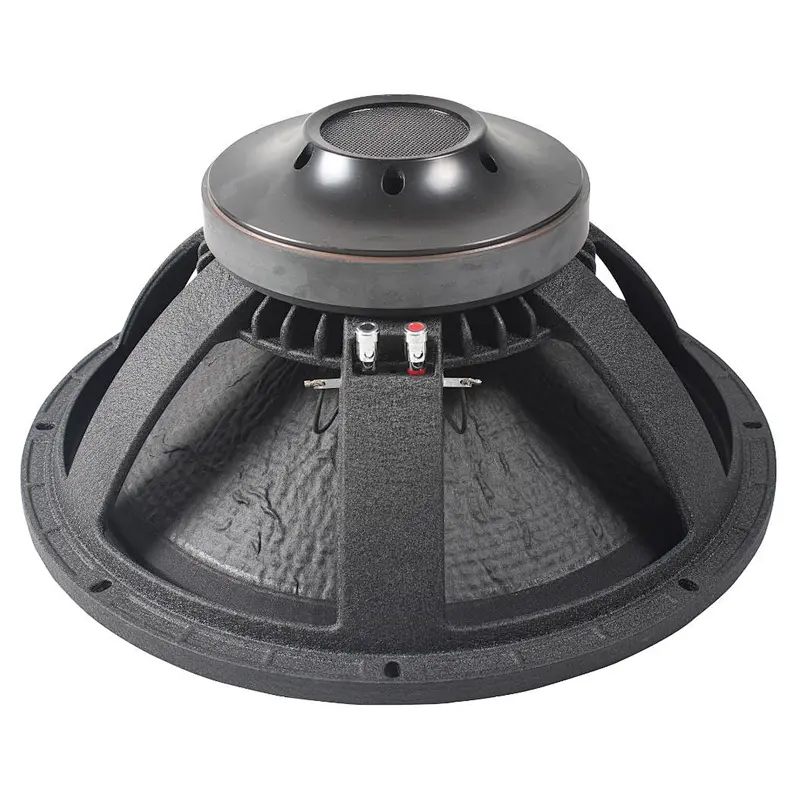

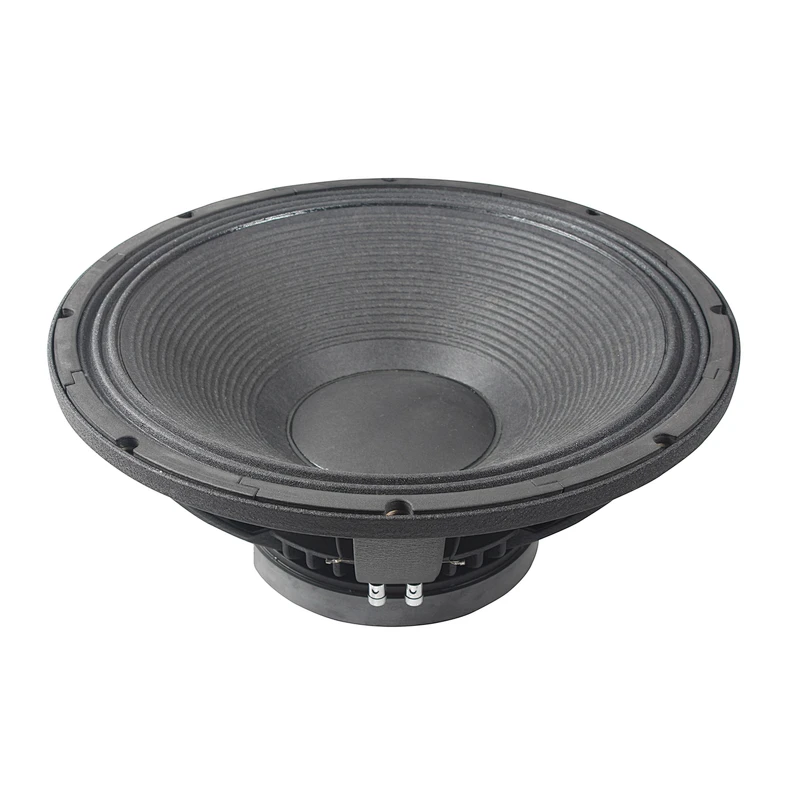

18PS100 18" Professional Woofer 8 Ohm
Quantity:

18PS100 18"Professional Woofer 8 Ohm

The Speakers 18PS100 18"midbass driver boasts a blisteringly loud sensitivity rating of 95.5dB 1W/1m, which combined with its substantial 700 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 460 mm/ 18 in nominal diameter
  • 1400 w continuous program power capacity
  • 100 mm/ 4 in voice coil
  • 95.5 dB sensitivity

SPECIFICATIONS

Model18PS100 18
Nominal Diameter460 mm / 18 in
Nominal Impedance8 Ω
Rated Power AES700 W
Continuous Program Power1400 W
Sensitivity @ 1W/1M95.5 dB
Frequency Range30 - 1000 Hz
Voice Coil Diameter100 mm / 4 in
Voice Coil Winding Depth21 mm / 0.83 in
Magnetic Gap Depth10.5 mm / 0.41 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialGlass Fibre

Cone Material

Paper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter460 mm (18.11 in)
Bolt Circle Diameter441 mm (17.36 in)
Baffle Cutout Diameter421 mm (16.57 in)
Depth213 mm (8.39 in)
Net Weight10.5 kg / 23.1 lbs
Shipping Weight11.9 kg / 26.2 lbs
Shipping Box

470x470x228mm(0.050m³)

18.50x18.50x8.98 in

Send Message

*
*
* clear input
*
* clear input
* clear input
* clear input
* clear input

Related Products

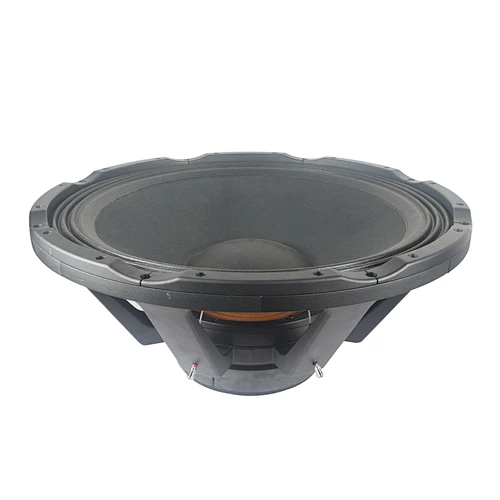

HKE-3206
HKE-3206
Model NO. HKE-3206

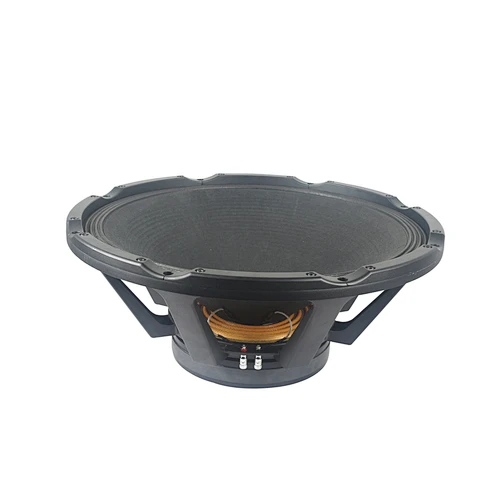

HKE-2405
HKE-2405
Model NO. HKE-2405

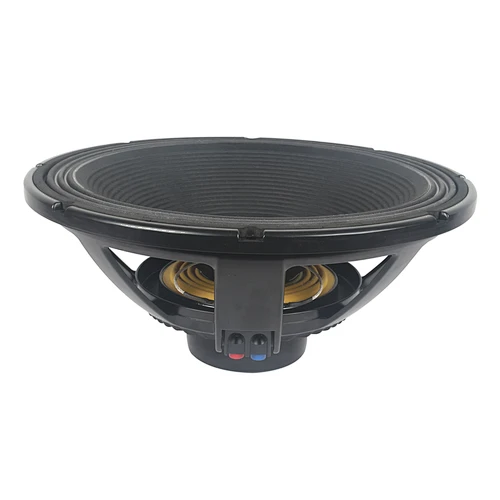

LF18N401
LF18N401
Model NO. LF18N401

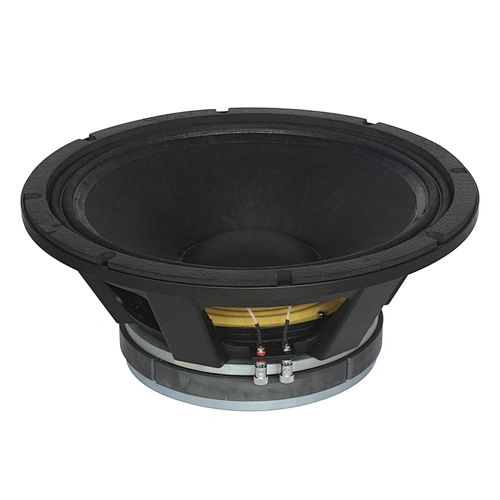

HKE-691827
HKE-691827
Model NO. HKE-691827

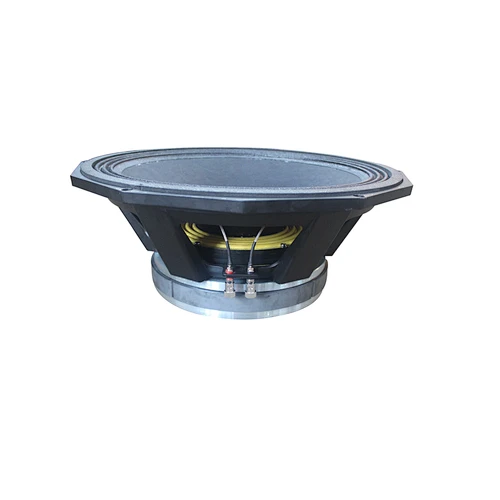

PD 1852
PD 1852
Model NO. PD 1852

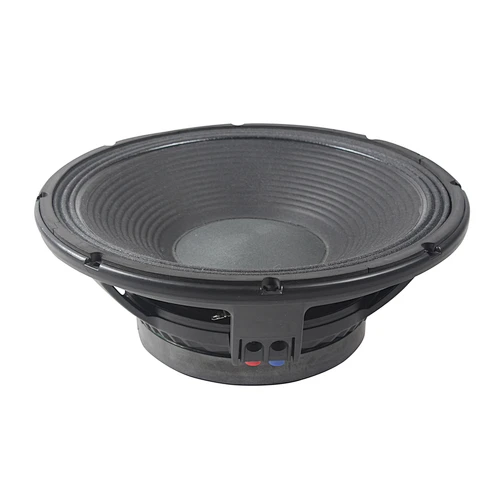

LF18X400
LF18X400
Model NO. LF18X400

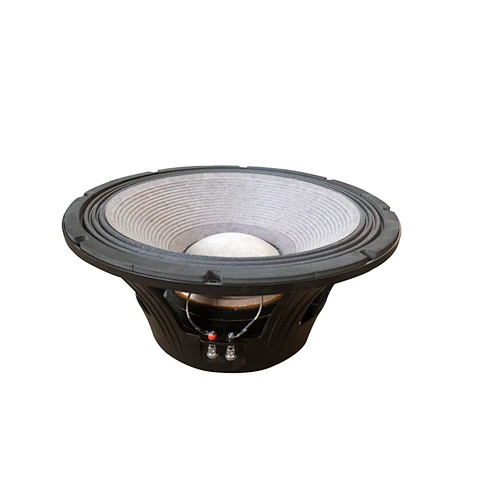

GST-181200
GST-181200
Model NO. GST-181200

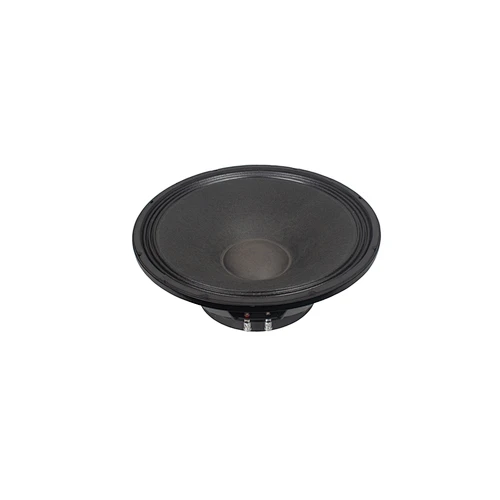

HKE-15L450
