Model NO.
HKE-691827

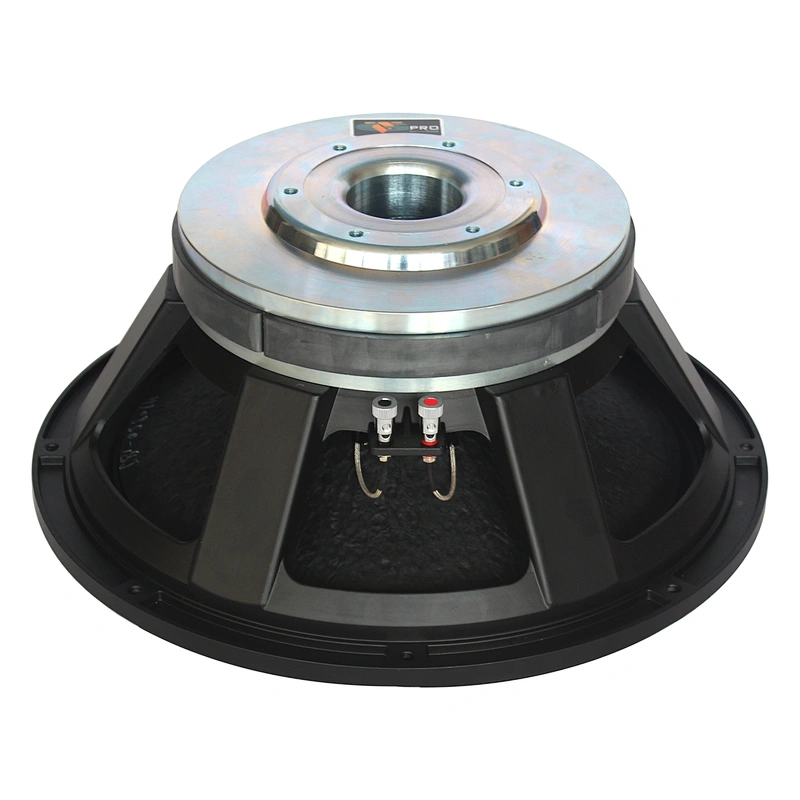

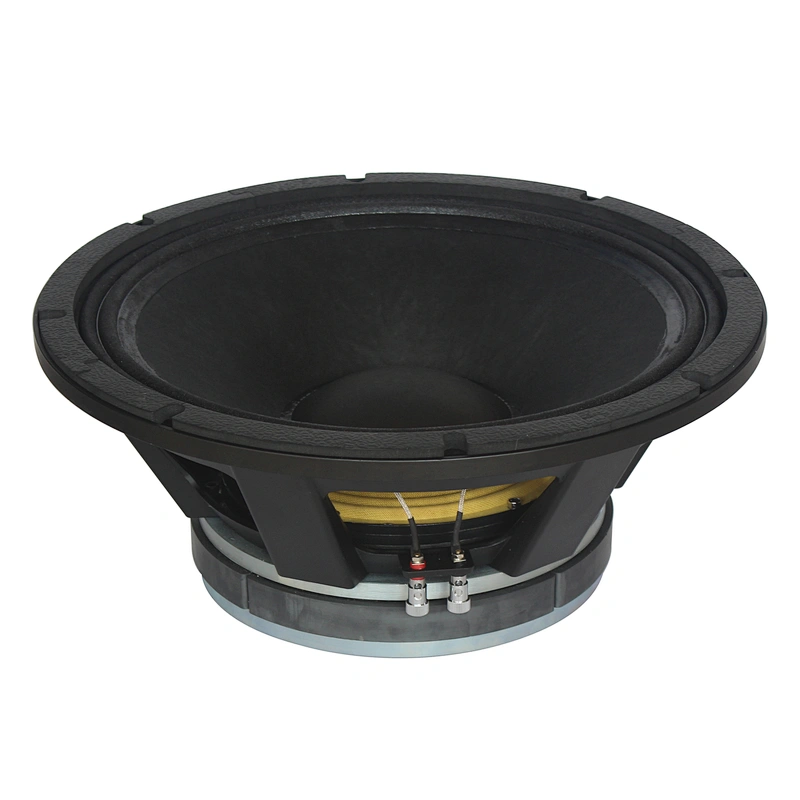

HKE-691827 18" Professional Woofer 8 Ohm
Quantity:

HKE-691827 18"Professional Woofer 8 Ohm

The Speakers HKE-691827 18"midbass driver boasts a blisteringly loud sensitivity rating of 98 dB 1W/1m, which combined with its substantial 1000 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 460 mm/ 18 in nominal diameter
  • 2000 w continuous program power capacity
  • 127 mm/ 5 in voice coil
  • 98 dB sensitivity

SPECIFICATIONS

ModelHKE-691827
Nominal Diameter460 mm / 18 in
Nominal Impedance8 Ω
Rated Power AES1000 W
Continuous Program Power2000 W
Sensitivity @ 1W/1M98 dB
Frequency Range35 - 2000 Hz
Voice Coil Diameter127 mm / 5 in
Voice Coil Winding Depth29 mm / 1.14 in
Magnetic Gap Depth12 mm / 0.47 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialGlass Fibre

Cone Material

Paper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter487 mm (19.17 in)
Bolt Circle Diameter470 mm (18.50 in)
Baffle Cutout Diameter416 mm (16.38 in)
Depth193 mm (7.60 in)
Net Weight23.8 kg / 52.47 lbs
Shipping Weight25.8 kg / 56.88 lbs
Shipping Box

497x497x208mm(0.051m³)

19.57x19.57x8.19 in
