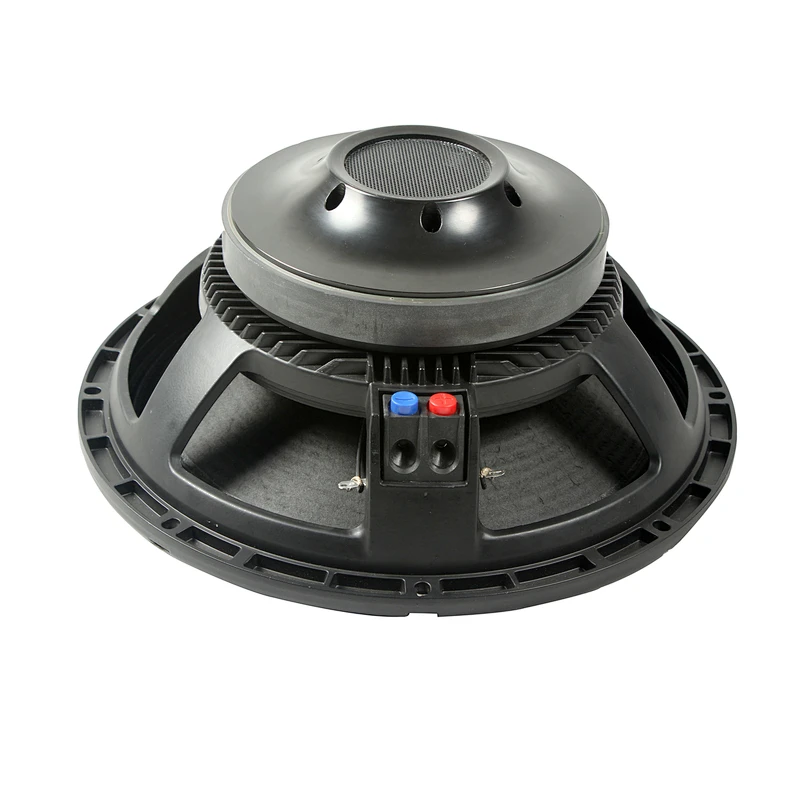

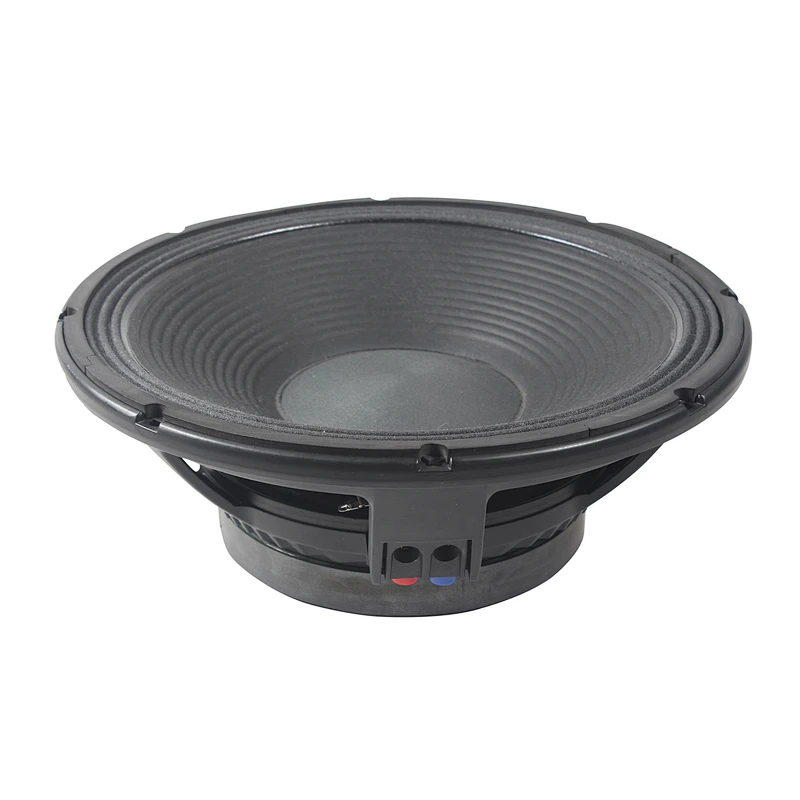

LF18X400
LF18X400
LF18X400
LF18X400
LF18X400

LF18X400

Model NO.
LF18X400
High Power 18 Inch Woofer with 800 Watts
Quantity:

High Power 18 Inch Woofer with 800 Watts

Very good power handling, excellent and very low distortion.
Copper voice coil construction, suspensions and cone materials designed to survive at 800Watt RMS power.

FEATURES

  • 4-inch, fiberglass inside/outside copper voice coil
  • 1600W continuous program power handling
  • 98 dB Sensitivity
  • 30 Hz – 1 kHz Frequency range
  • M-roll surround and exponential cone geometry

SPECIFICATIONS

ModelLF18X400
Nominal Diameter460 mm / 18 in
Nominal Impedance8 Ω
Rated Power AES1000 W
Continuous Program Power2000 W
Sensitivity @ 1W/1M97.5 dB
Frequency Range25 - 1000 Hz
Voice Coil Diameter100 mm / 4 in
Voice Coil Winding Depth25 mm / 1.0 in
Magnetic Gap Depth14 mm / 0.55 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialAluminum wire
Voice Coil Former MaterialGlass Fibre
Cone MaterialPaper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter465 mm (18.31 in)
Bolt Circle Diameter445 mm (17.52 in)
Baffle Cutout Diameter421 mm (16.57 in)
Depth217.5 mm (8.56 in)
Net Weight13.3 kg / 29.3 lbs
Shipping Weight14.3 kg / 31.5 lbs
Shipping Box475x475x233mm(0.053m³)18.70x18.70x9.17 in

Send Message

*
*
* clear input
*
* clear input
* clear input
* clear input
* clear input

Related Products

HKE-3206
HKE-3206
Model NO. HKE-3206
HKE-2405
HKE-2405
Model NO. HKE-2405
LF18N401
LF18N401
Model NO. LF18N401
HKE-691827
HKE-691827
Model NO. HKE-691827
PD 1852
PD 1852
Model NO. PD 1852

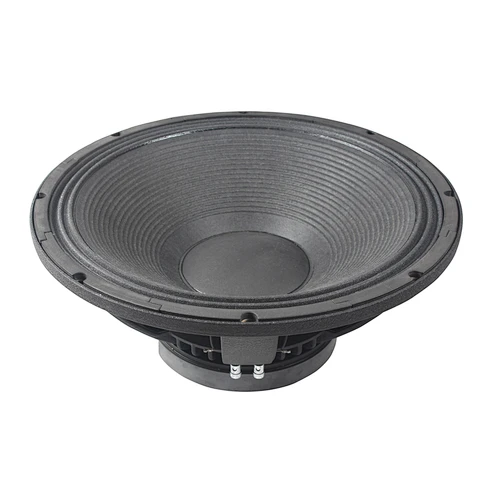

18PS100
