Model NO.
MB15N351

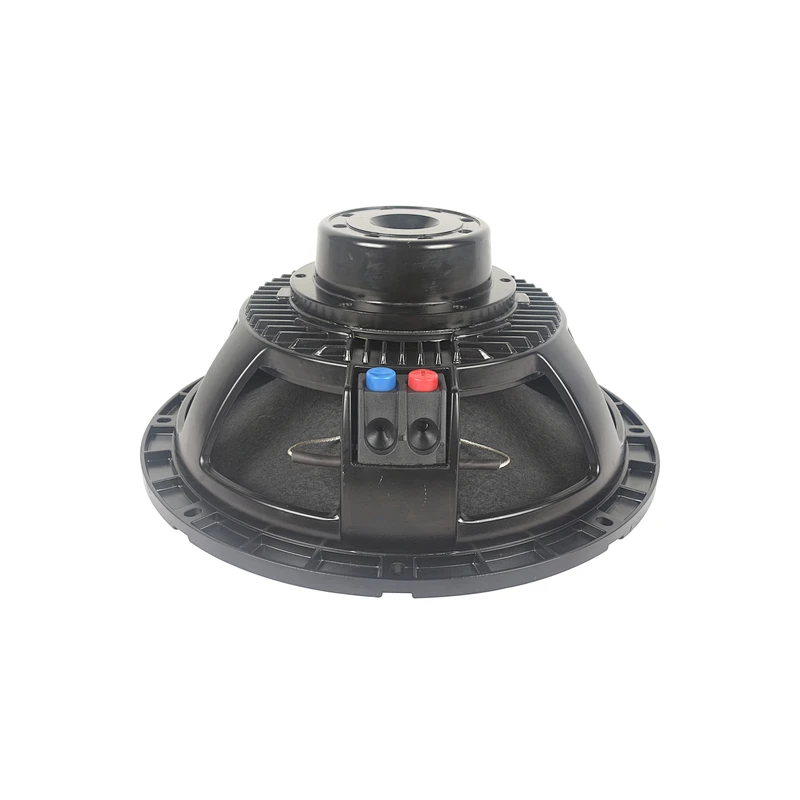

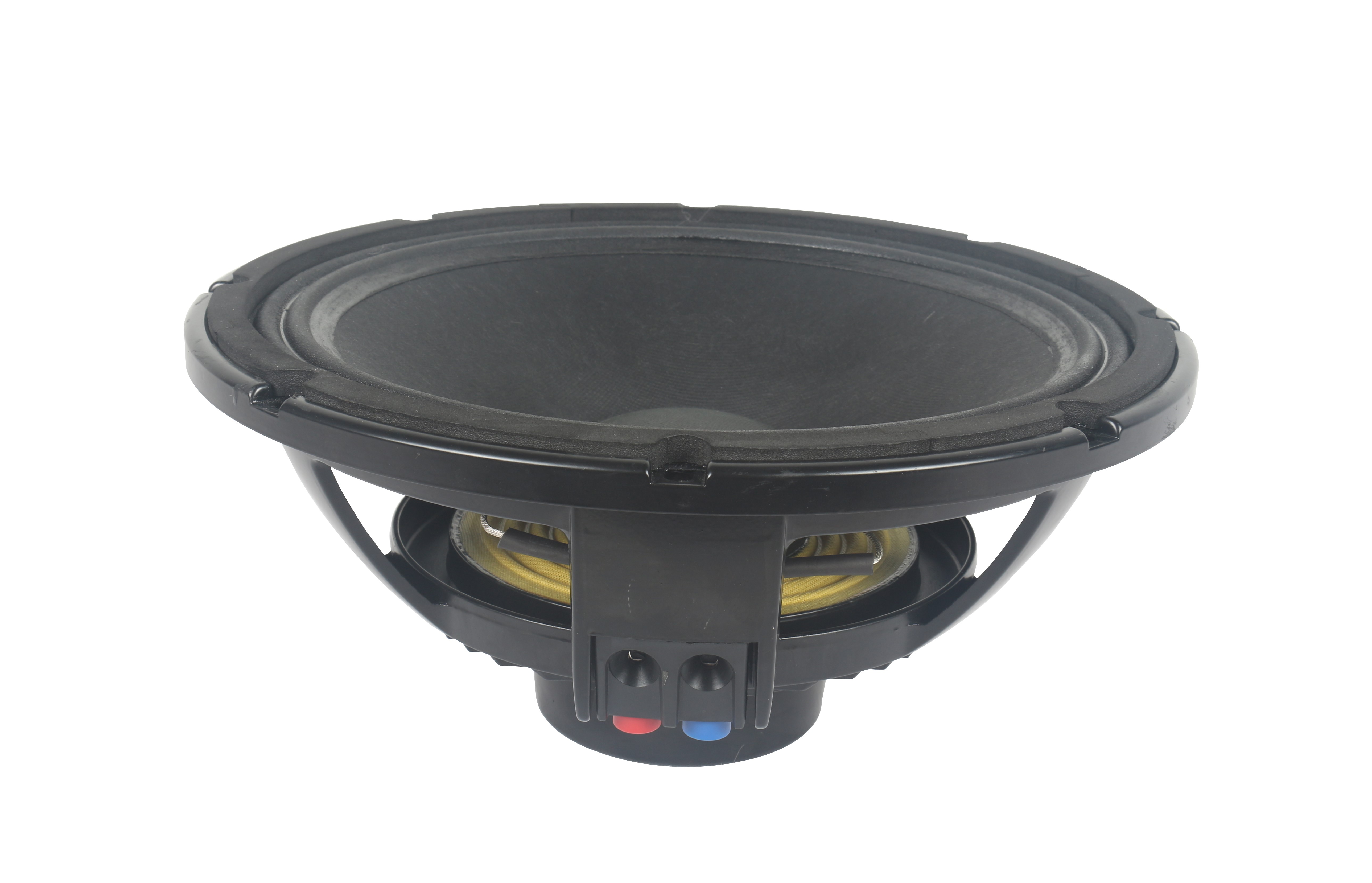

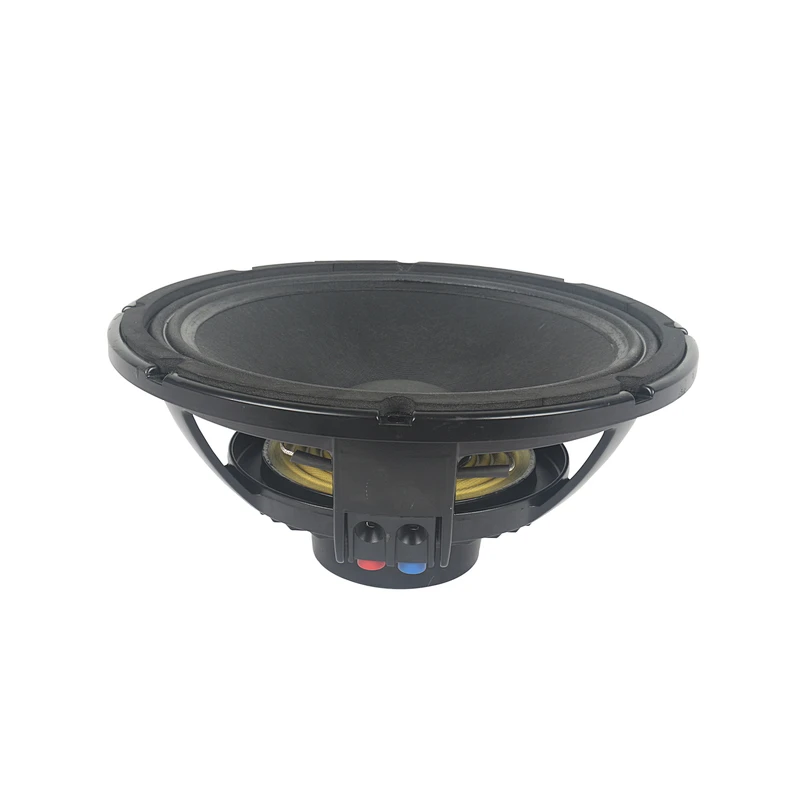

MB15N351 15" Professional Woofer 8 Ohm
Quantity:

MB15N351 15"Professional Woofer 8 Ohm

The Speakers MB15N351 15"midbass driver boasts a blisteringly loud sensitivity rating of 100dB 1W/1m, which combined with its substantial 650 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 380 mm/ 15 in nominal diameter
  • 1300w continuous program power capacity
  • 75 mm/ 3 in vioce coil
  • 100 dB sensitivity

SPECIFICATIONS

ModelMB15N351
Nominal Diameter380 mm / 15 in
Nominal Impedance8 Ω
Rated Power AES650 W
Continuous Program Power1300 W
Sensitivity @ 1W/1M100 dB
Frequency Range40 - 3000 Hz
Voice Coil Diameter75 mm / 3 in
Voice Coil Winding Depth18 mm / 0.71 in
Magnetic Gap Depth10 mm / 0.39 in

Constructive Characteristics

MagnetNeodymium
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialGlass Fibre

Cone Material

Paper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter394 mm (15.51 in)
Bolt Circle Diameter372 mm (14.65 in)
Baffle Cutout Diameter354 mm (14.20 in)
Depth130 mm (5.12 in)
Net Weight5.0 kg / 11.0 lbs
Shipping Weight5.8 kg / 12.7 lbs
Shipping Box

404x404x145mm(0.034m³)

15.91x15.91x5.71 in
