Model NO.
MB12X301

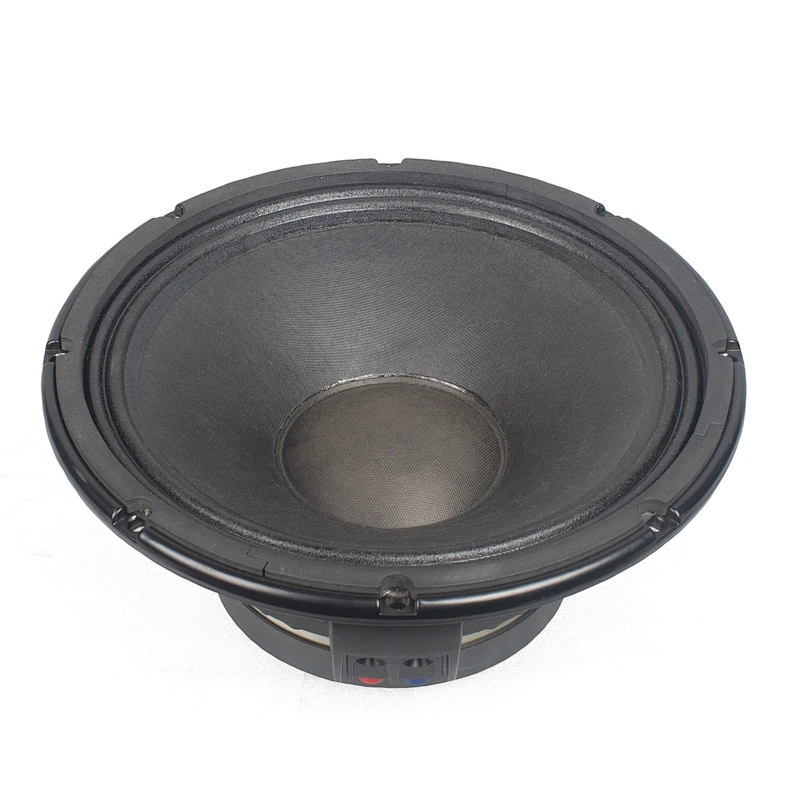

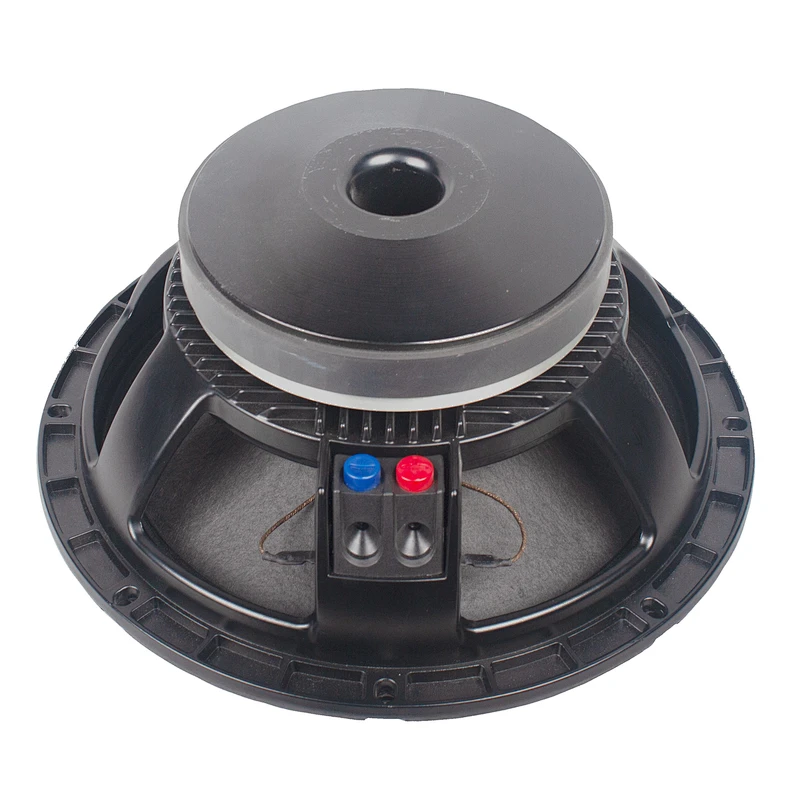

MB12X301 12" Professional Woofer 8 Ohm
Quantity:

MB12X301 12"Professional Woofer 8 Ohm

The Speakers MB12X301 12"midbass driver boasts a blisteringly loud sensitivity rating of 98dB 1W/1m, which combined with its substantial 700 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 305 mm/ 12 in nominal diameter
  • 1400w continuous program power capacity
  • 76 mm/ 3 in vioce coil
  • 98 dB sensitivity

SPECIFICATIONS

ModelMB12X301
Nominal Diameter305 mm / 12 in
Nominal Impedance8 Ω
Rated Power AES700 W
Continuous Program Power1400 W
Sensitivity @ 1W/1M98 dB
Frequency Range45 - 2500 Hz
Voice Coil Diameter76 mm / 3 in
Voice Coil Winding Depth19 mm / 0.74 in
Magnetic Gap Depth10 mm / 0.39 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCCAW
Voice Coil Former MaterialCopper
Cone MaterialPaper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter320 mm (12.60 in)
Bolt Circle Diameter301 mm (11.85 in)
Baffle Cutout Diameter281 mm (11.06 in)
Depth145 mm (5.71 in)
Net Weight7.6 kg / 16.7 lbs
Shipping Weight8.4 kg / 18.4 lbs
Shipping Box

330x330x160mm(0.017m³

12.99x12.99x6.30 in
