HKE-15L450
HKE-15L450
HKE-15L450
HKE-15L450
HKE-15L450

HKE-15L450

Model NO.
HKE-15L450

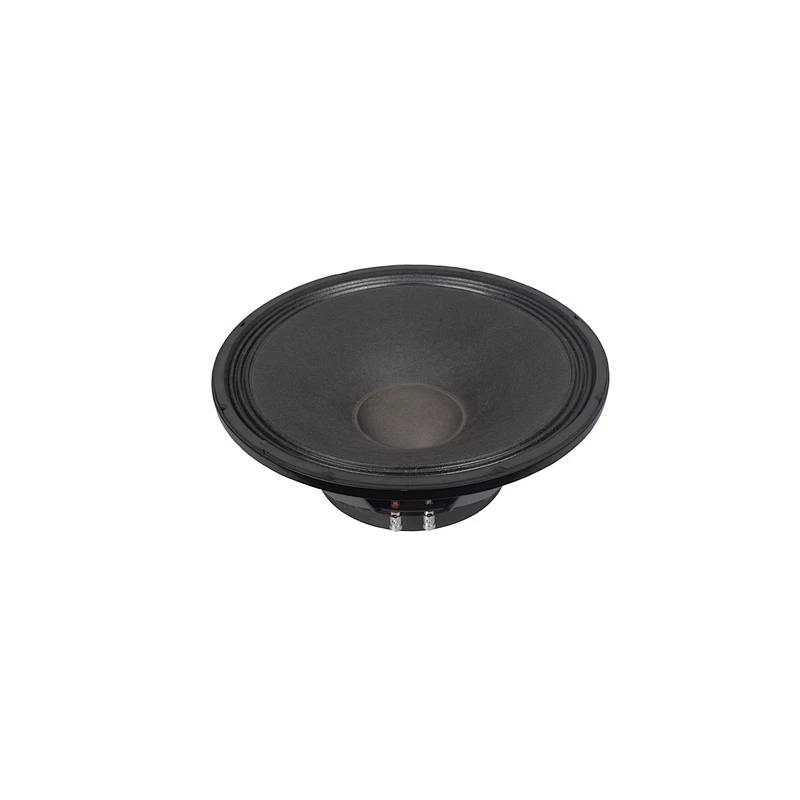

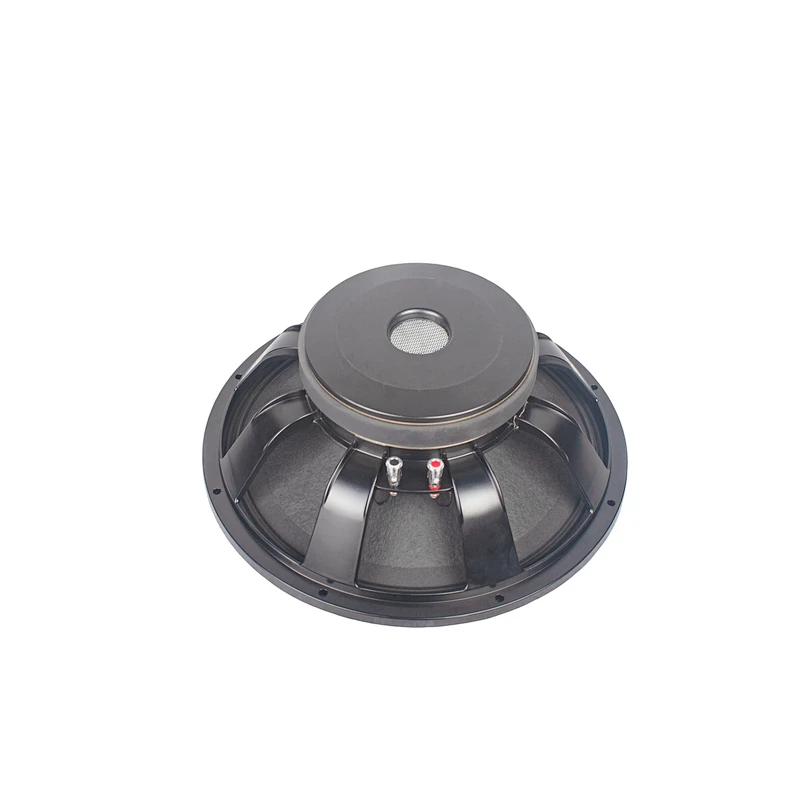

HKE-15L450 15" Professional Woofer 8 Ohm
Quantity:

HKE-15L450 15"Professional Woofer 8 Ohm

The Speakers HKE-15L450 15"midbass driver boasts a blisteringly loud sensitivity rating of 98dB 1W/1m, which combined with its substantial 450 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 380 mm/ 15 in nominal diameter
  • 900w continuous program power capacity
  • 75.5 mm/ 3 in voice coil
  • 98 dB sensitivity

SPECIFICATIONS

ModelHKE-15L450
Nominal Diameter380 mm / 15 in
Nominal Impedance8 Ω
Rated Power AES450 W
Continuous Program Power900 W
Sensitivity @ 1W/1M98 dB
Frequency Range45 - 3000 Hz
Voice Coil Diameter75.5 mm / 3 in
Voice Coil Winding Depth18 mm / 0.7 in
Magnetic Gap Depth10 mm / 0.39in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialGlass Fibre

Cone Material

Paper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter387 mm (15.24 in)
Bolt Circle Diameter372 mm (14.65 in)
Baffle Cutout Diameter354 mm (14.20 in)
Depth145 mm (5.70 in)
Net Weight8.5 kg / 18.74 lbs
Shipping Weight9.5 kg / 20.94 lbs
Shipping Box

398X398x170mm(0.027m³)

15.67x15.67x6.70 in
