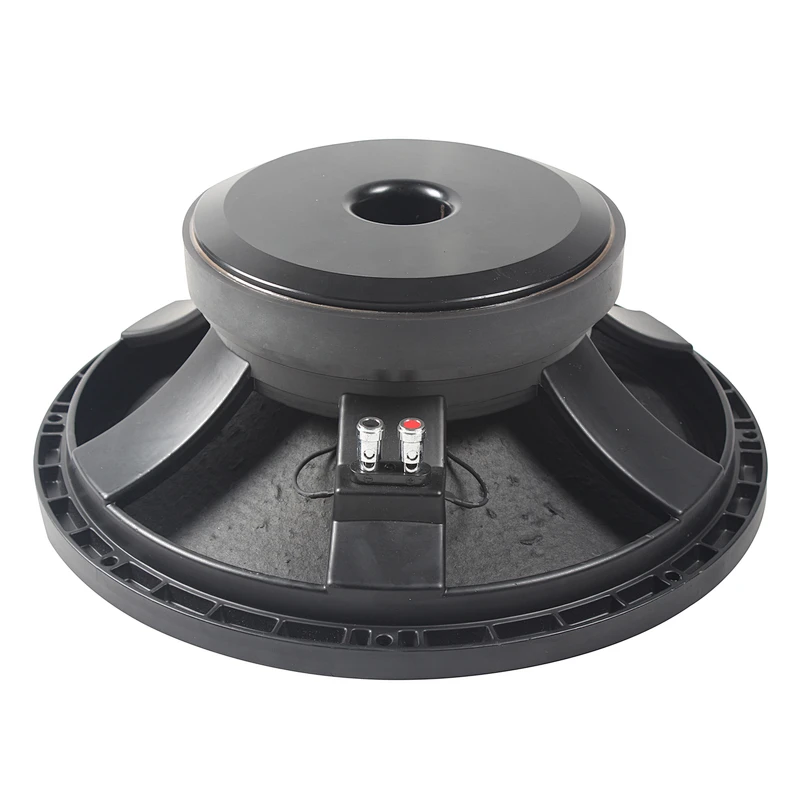

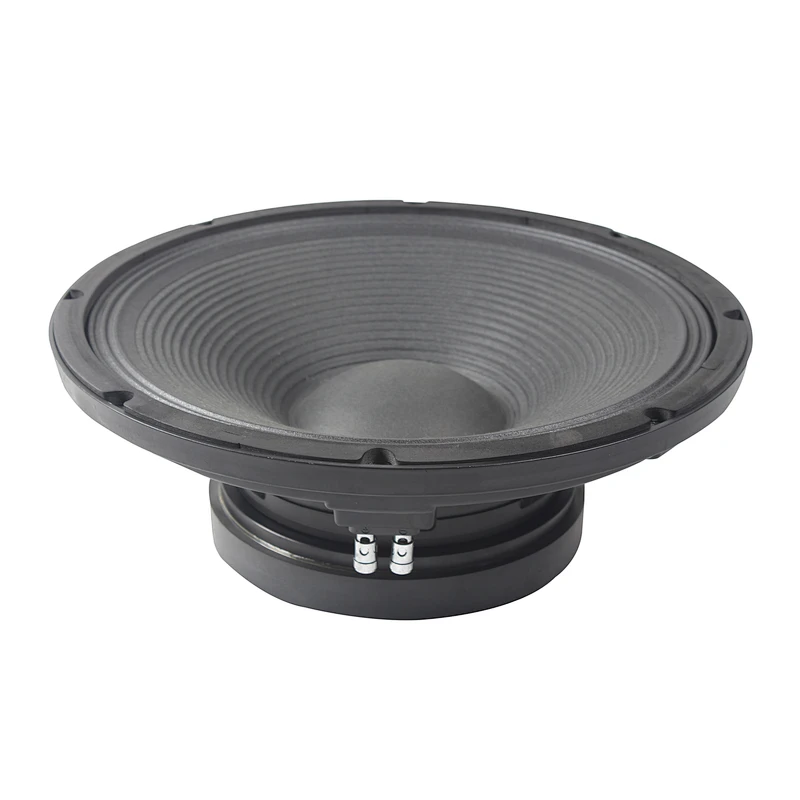

L15P540
L15P540
L15P540
L15P540
L15P540

L15P540

Model NO.
L15P540
High Power 15 Inch Woofer With 800 Watts
Quantity:

High Power 15 Inch Woofer With 800 Watts

The B&C Speakers L15P540 15"midbass driver boasts a blisteringly loud sensitivity rating of 97dB 1W/1m, which combined with its substantial 800 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • Very high efficiency
  • 4"lightweight aluminum voice coil
  • 800 watts RMS power handling
  • Great for horn loaded designs

SPECIFICATIONS

ModelL15P540
Nominal Diameter380 mm / 15 in
Nominal Impedance8 Ω
Rated Power AES800 W
Continuous Program Power1600 W
Sensitivity @ 1W/1M97 dB
Frequency Range30 - 1500 Hz
Voice Coil Diameter100 mm / 4 in
Voice Coil Winding Depth23 mm / 0.9 in
Magnetic Gap Depth10 mm / 0.39 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialClass Fibre
Cone MaterialPaper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter388 mm (15.28 in)
Bolt Circle Diameter371 mm (14.61 in)
Baffle Cutout Diameter353 mm (13.90 in)
Depth165 mm (6.50 in)
Net Weight12.6 kg / 27.7 lbs
Shipping Weight13.6 kg / 29.9 lbs
Shipping Box

398x398x180mm(0.029m³)

15.67x15.67x7.09 in
