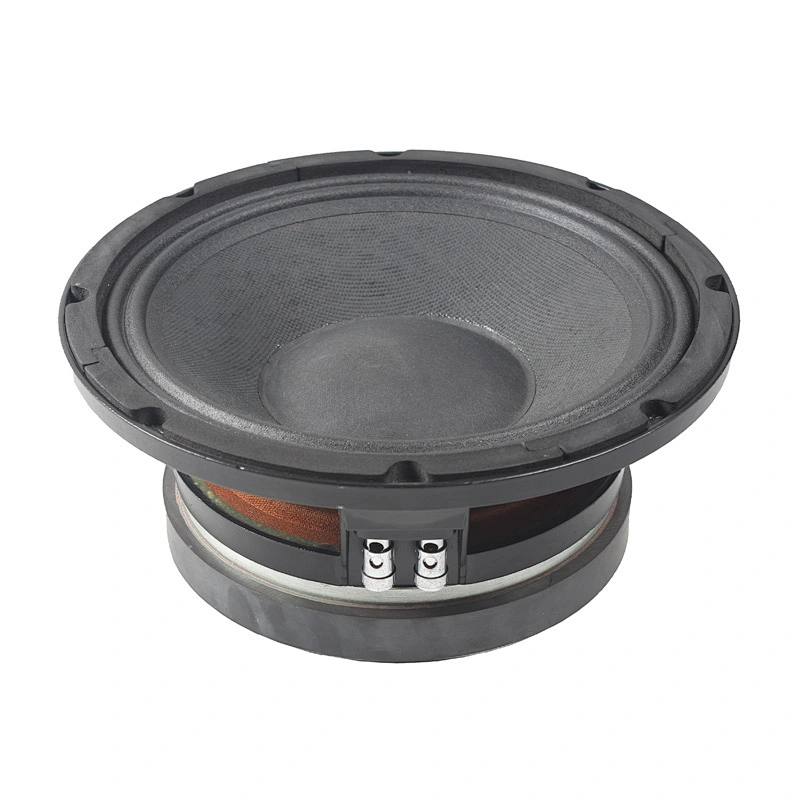

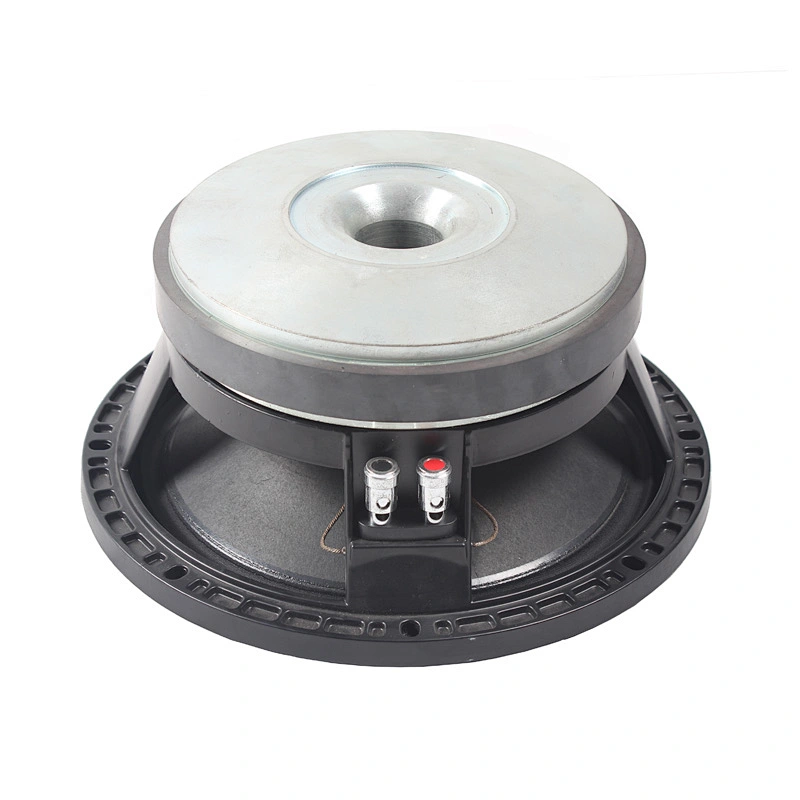

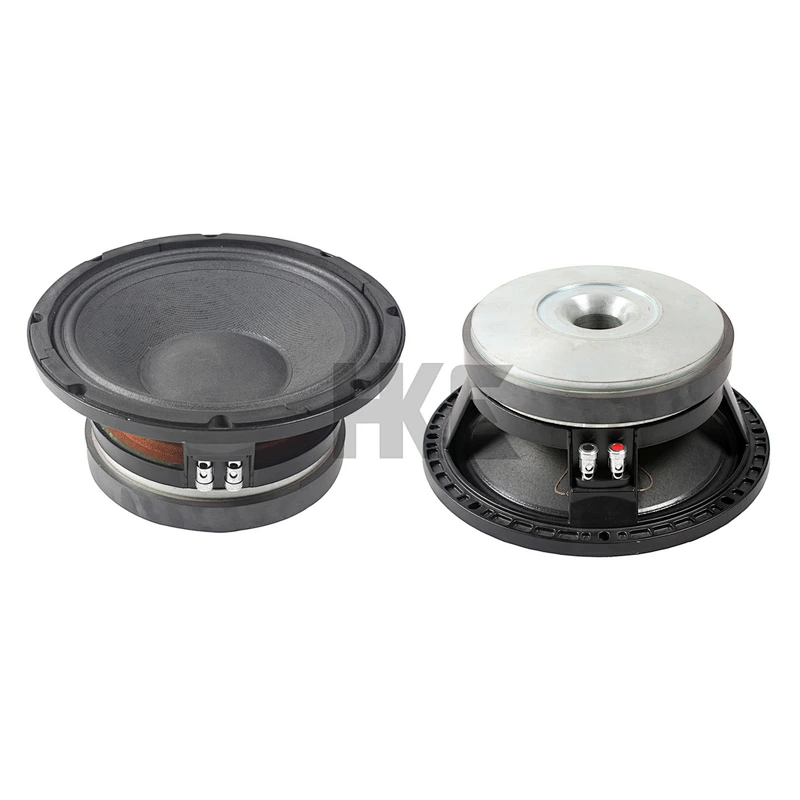

L10/568H
L10/568H
L10/568H
L10/568H
L10/568H
L10/568H
L10/568H

L10/568H

Model NO.
L10/568H
High Power 10 Inch Woofer With 200 Watts
Quantity:

High Power 10 Inch Woofer With 200 Watts

The B&C Speakers L10/568H 10"midbass driver boasts a blisteringly loud sensitivity rating of 97.5 dB 1W/1m, which combined with its substantial 300 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • Very high efficiency
  • 2"lightweight aluminum voice coil
  • 300 watts RMS power handling
  • Great for horn loaded designs

SPECIFICATIONS

ModelL10/568H
Nominal Diameter250 mm / 10 in
Nominal Impedance8 Ω
Rated Power AES300 W
Continuous Program Power600 W
Sensitivity @ 1W/1M97.5 dB
Frequency Range55 - 3000 Hz
Voice Coil Diameter51 mm / 2 in
Voice Coil Winding Depth18 mm / 0.71 in
Magnetic Gap Depth8 mm / 0.31 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialAluminium
Voice Coil Former MaterialCopper
Cone MaterialPaper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter261 mm (10.28 in)
Bolt Circle Diameter245 mm (9.65 in)
Baffle Cutout Diameter230 mm (9.06 in)
Depth113 mm (4.45 in)
Net Weight4.8 kg / 10.5 lbs
Shipping Weight5.8 kg / 12.6 lbs
Shipping Box

271x271x128mm(0.009m³)

10.67x10.67x5.04 in
