HKE-15HF44
HKE-15HF44
HKE-15HF44
HKE-15HF44
HKE-15HF44

HKE-15HF44

Model NO.
HKE-15HF44

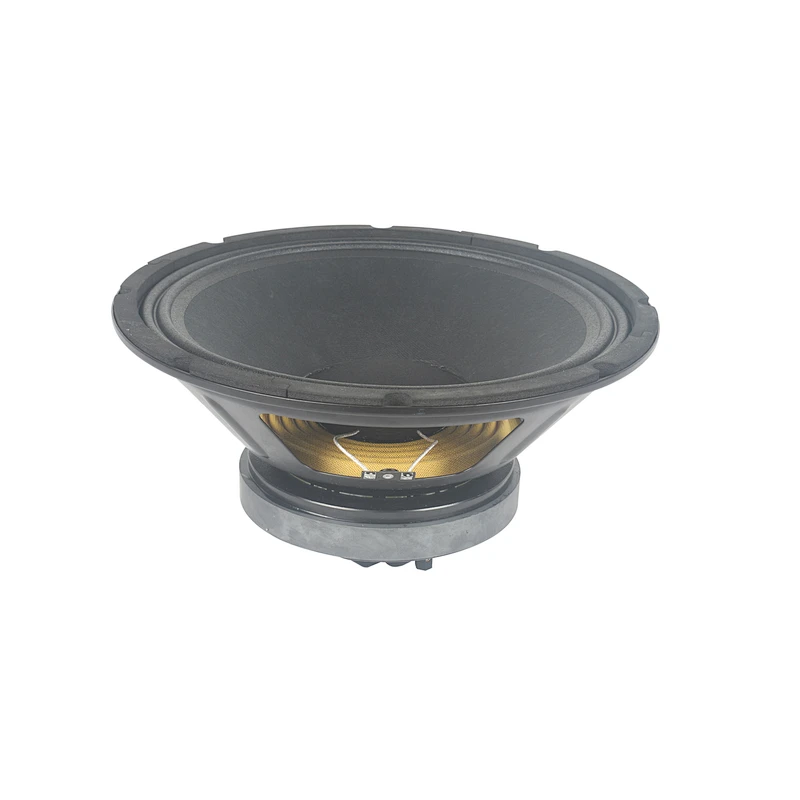

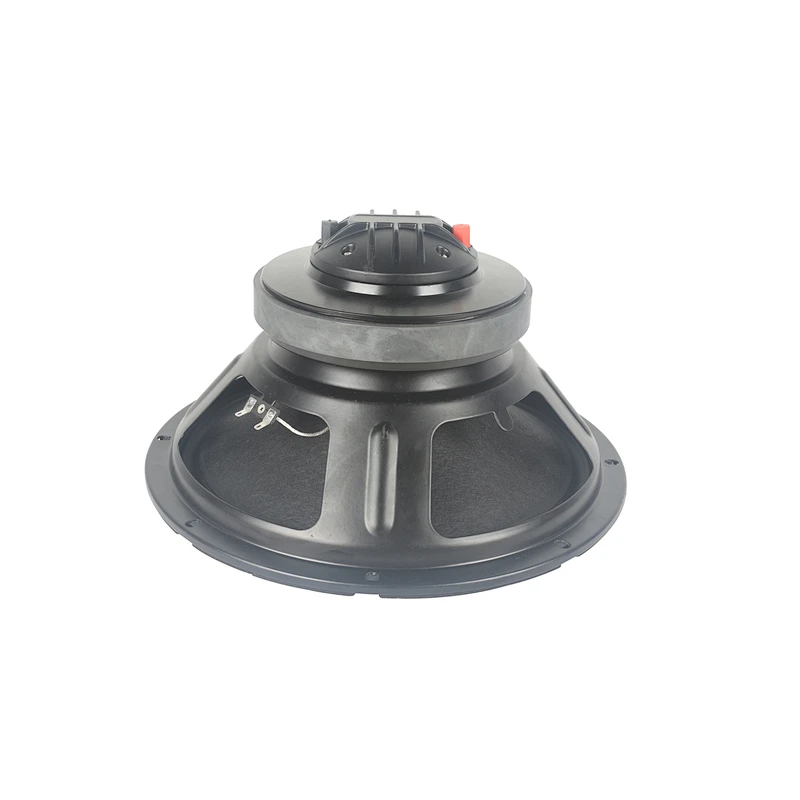

HKE-15HF44 15" Professional Woofer 8 Ohm
Quantity:

HKE-15HF44 15"Professional Woofer 8 Ohm

The Speakers HKE-15HF44 15"midbass driver boasts a blisteringly loud sensitivity rating of 98dB 1W/1m, which combined with its substantial 600 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 380 mm/ 15 in nominal diameter
  • 1200w continuous program power capacity
  • 98 dB sensitivity

SPECIFICATIONS

ModelHKE-15HF44
Nominal Diameter380 mm / 15 in
Nominal Impedance8 Ω
Rated Power AES600 W
Continuous Program Power1200 W
Sensitivity @ 1W/1M98 dB
Frequency Range40 - 2000 Hz
Voice Coil Diameter3.0 in / 1.75 in
Voice Coil Winding Depth15 mm / 0.59 in
Magnetic Gap Depth8 mm / 0.31 in

Constructive Characteristics

MagnetFerrite
Basket MaterialStamp steel frame
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialGlass Fibre
HF DiaphragmComposite Polyimide

Cone Material

Paper
Surround MaterialCloth
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter394 mm (15.51 in)
Bolt Circle Diameter370 mm (14.57 in)
Baffle Cutout Diameter354 mm (14.20 in)
Depth146 mm (5.75 in)
Net Weight8.6 kg / 19.1 lbs
Shipping Weight9.3 kg / 20.7 lbs
Shipping Box

403x403x159mm(0.026m³)

15.91x15.91x6.34 in
