Model NO.
HKE-12HF44

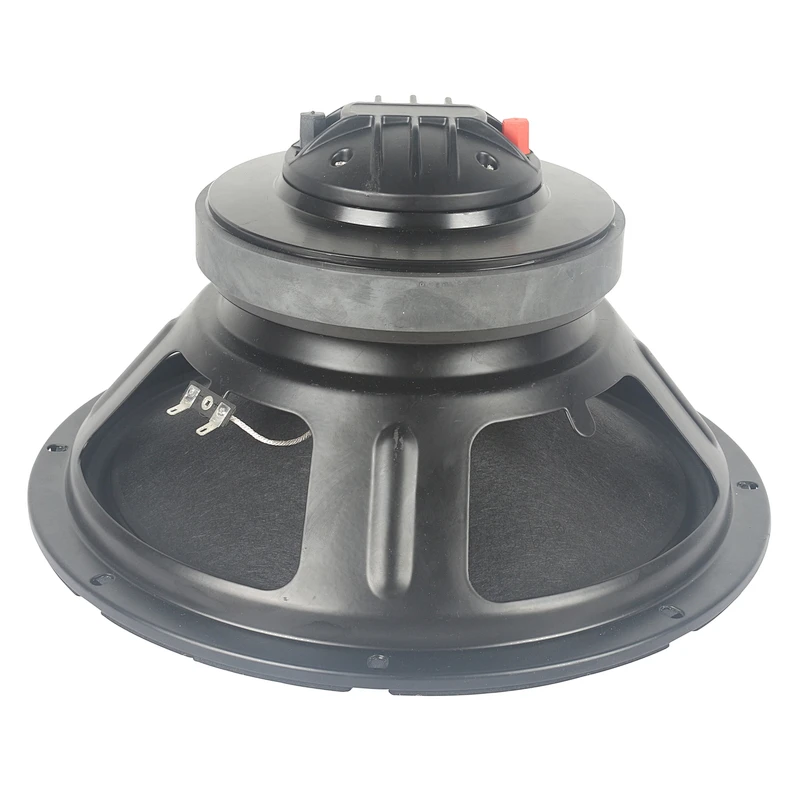

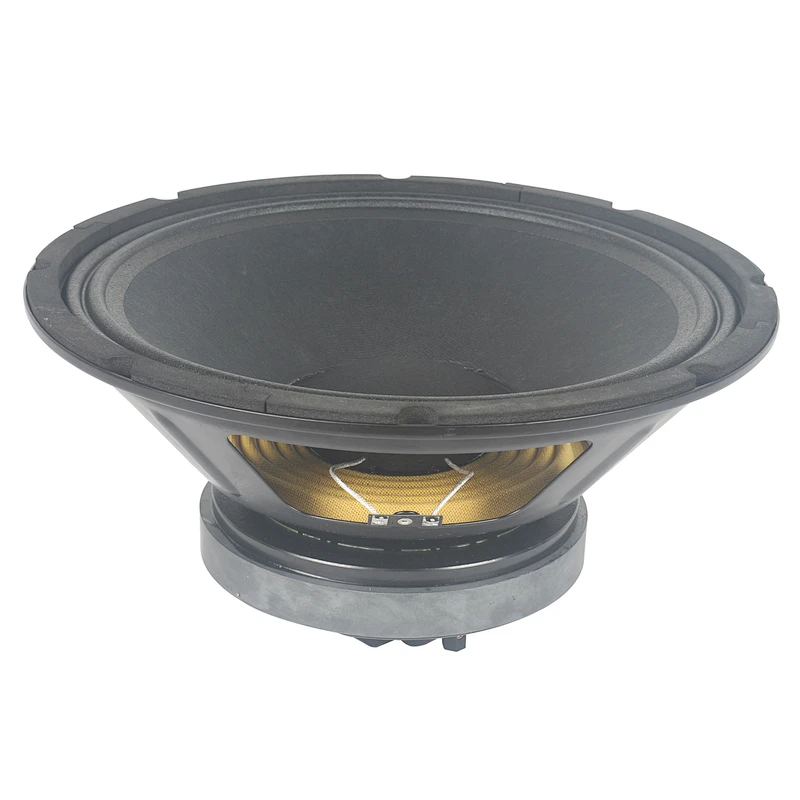

HKE-12HF44 12" Professional Woofer 8 Ohm
Quantity:

HKE-12HF44 12"Professional Woofer 8 Ohm

The Speakers HKE-12HF44 12"midbass driver boasts a blisteringly loud sensitivity rating of 97dB 1W/1m, which combined with its substantial 500 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 300 mm/ 12 in nominal diameter
  • 1000w continuous program power capacity
  • 75 mm/ 3 in LF vioce coil
  • 44 mm/ 1.75 in HF vioce coil
  • 97 dB sensitivity

SPECIFICATIONS

ModelHKE-12HF44
Nominal Diameter300 mm / 12 in
Nominal Impedance8 Ω
Rated Power AES500 W
Continuous Program Power1000 W
Sensitivity @ 1W/1M97 dB
Frequency Range40 - 2000 Hz
Voice Coil Diameter30 mm / 1.75 in
Voice Coil Winding Depth15 mm / 0.59 in
Magnetic Gap Depth8 mm / 0.31 in

Constructive Characteristics

MagnetFerrite
Basket MaterialStamp steel frame
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialGlass Fibre
HF DiaphragmComposite Polyimide

Cone Material

Paper
Surround MaterialCloth
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter311 mm (12.24 in)
Bolt Circle Diameter294 mm (11.57 in)
Baffle Cutout Diameter280 mm (11.02 in)
Depth151 mm (5.95 in)
Net Weight4.4 kg / 9.7 lbs
Shipping Weight5.2 kg / 11.4 lbs
Shipping Box

321x321x166mm(0.017m³

12.64x12.64x6.54 in
