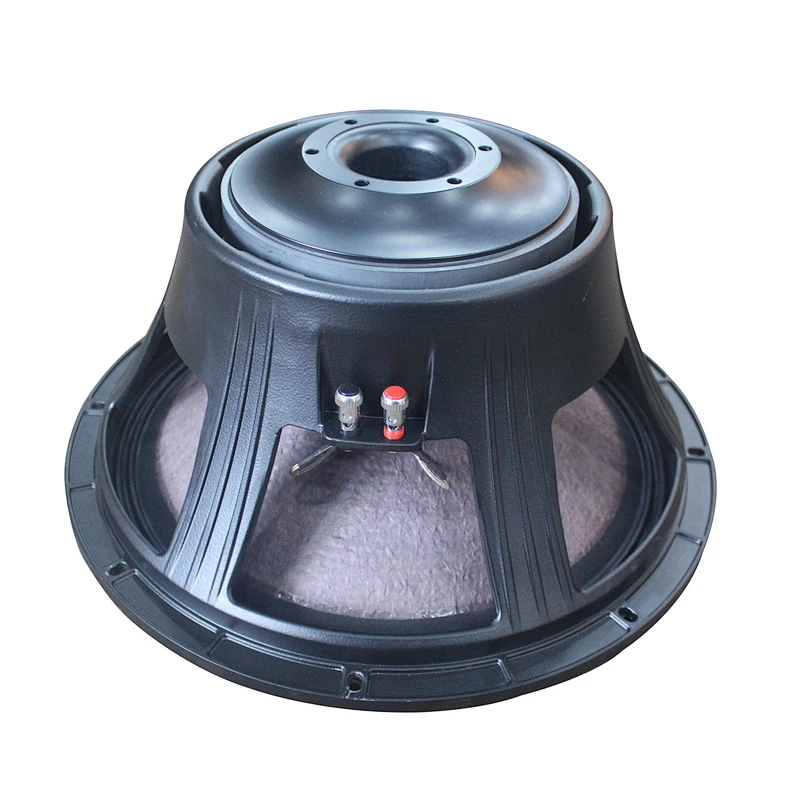

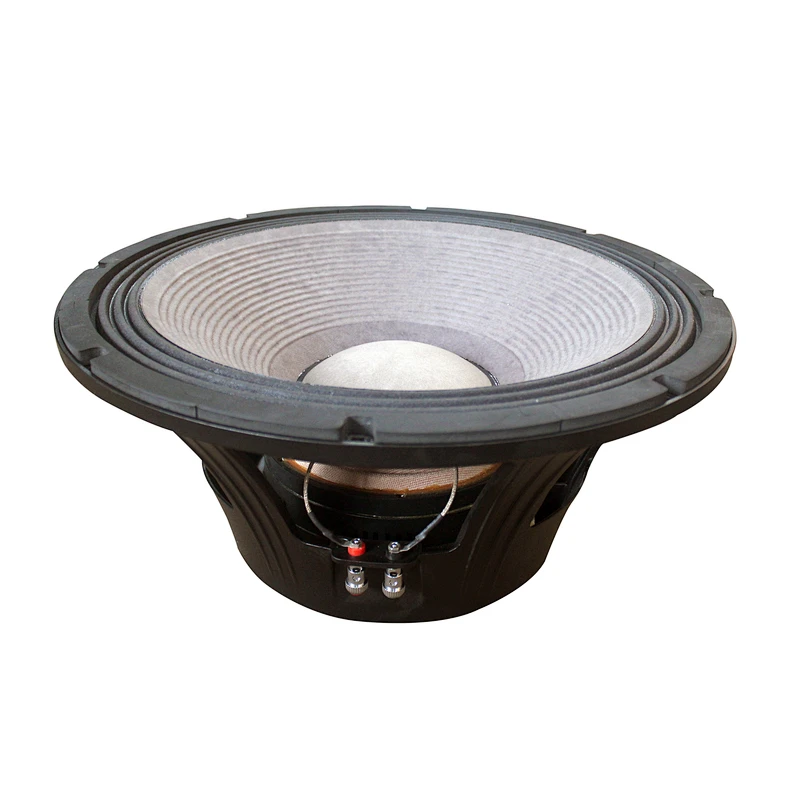

GST-15500
GST-15500
GST-15500
GST-15500
GST-15500

GST-15500

Model NO.
GST-15500
GST Series Big Power 15 Inch Woofer With 400W
Quantity:

GST Series Big Power 15 Inch Woofer With 400W

The GST-15500 features an aluminum die cast chassis that includes P Audio Auto Balanced Cooling design that minimizes coil and magnet structure heating, and further improves system performance

FEATURES

  • 3 Inch Medium Format Voice Coil
  • 1600 Watts Peak Power Handling
  • Active Balanced Cooling
  • Ferrite Magnetics
  • Aluminum wire Inside/Outside Coil Design
  • Single Spider Suspension
  • Integrated Demodulation Rings
  • Die Cast Aluminum Chassis

SPECIFICATIONS

ModelGST-15500
Nominal Diameter381 mm / 15 in
Nominal Impedance8 Ω
Rated Power AES500 W
Continuous Program Power1000 W
Sensitivity @ 1W/1M96 dB
Frequency Range40 - 2000 Hz
Voice Coil Diameter76 mm / 3 in
Voice Coil Winding Depth18.5 mm / 0.73 in
Magnetic Gap Depth12 mm / 0.47in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialAluminum wire
Voice Coil Former MaterialGlass Fibre
Cone MaterialPaper
Surround MaterialCloth
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter391 mm (15.39 in)
Bolt Circle Diameter371 mm (14.61 in)
Baffle Cutout Diameter354 mm (13.94 in)
Depth173 mm (6.81 in)
Net Weight10.1 kg / 22.3 lbs
Shipping Weight11.6 kg / 25.6 lbs
Shipping Box401x401x188mm(0.030m³)15.79x15.79x7.40 in
