Model NO.
8FW51

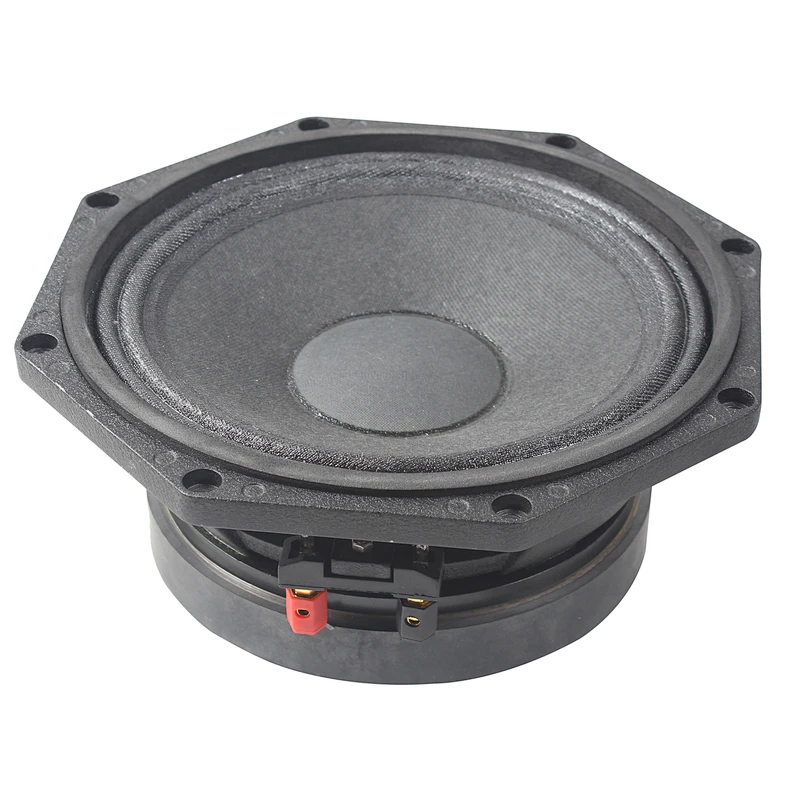

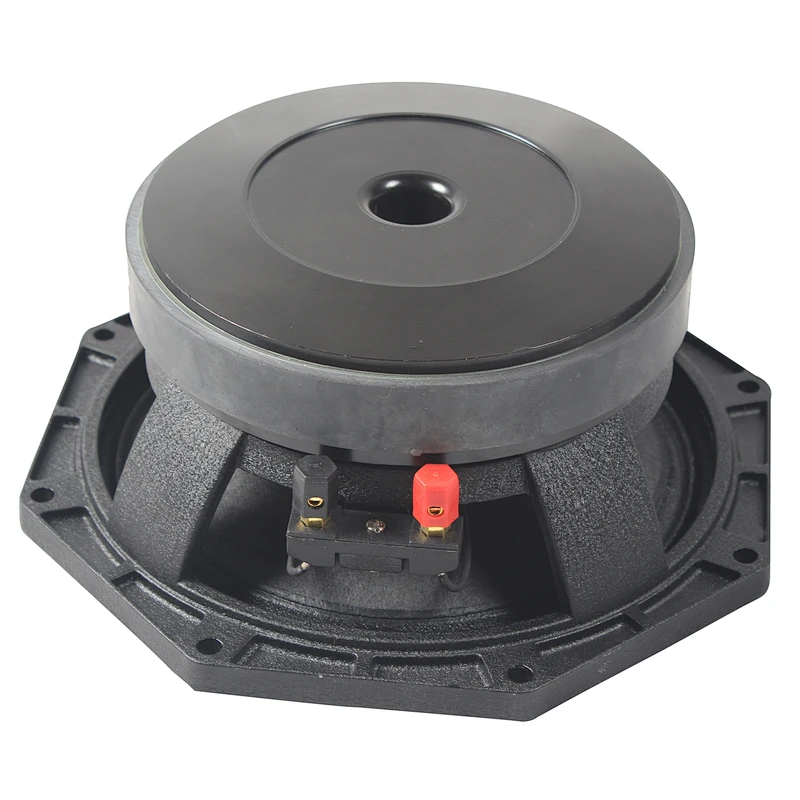

B&C 8FW51 8" Professional Woofer 8 Ohm
Quantity:

B&C 8FW51 8"Professional Woofer 8 Ohm

The B&C Speakers 8FW51 8"midbass driver boasts a blisteringly loud sensitivity rating of 93dB 1W/1m, which combined with its substantial 200 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • High-power midrange and midbass driver for demanding professional applications
  • Copper ring in the magnetic circuit reduces distortion/extends HF response
  • Exceptionally linear, articulate sound reproduction, even at extreme output levels

SPECIFICATIONS

Model8FW51
Nominal Diameter200 mm / 8 in
Nominal Impedance8 Ω
Rated Power AES200 W
Continuous Program Power400 W
Sensitivity @ 1W/1M97 dB
Frequency Range75 - 5000 Hz
Voice Coil Diameter51 mm / 2 in
Voice Coil Winding Depth16.5 mm / 0.65 in
Magnetic Gap Depth10 mm / 0.39 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialKapton
Cone MaterialPaper
Surround MaterialCloth
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter225 mm (8.86 in)
Bolt Circle Diameter210 mm (8.27 in)
Baffle Cutout Diameter198 mm (7.80 in)
Depth92 mm (3.62 in)
Net Weight5.3 kg / 11.6 lbs
Shipping Weight5.6 kg / 12.3 lbs
Shipping Box235x235x107mm(0.006m³)9.25x9.25x4.21 in
