15PS100
15PS100
15PS100
15PS100
15PS100

15PS100

Model NO.
15PS100

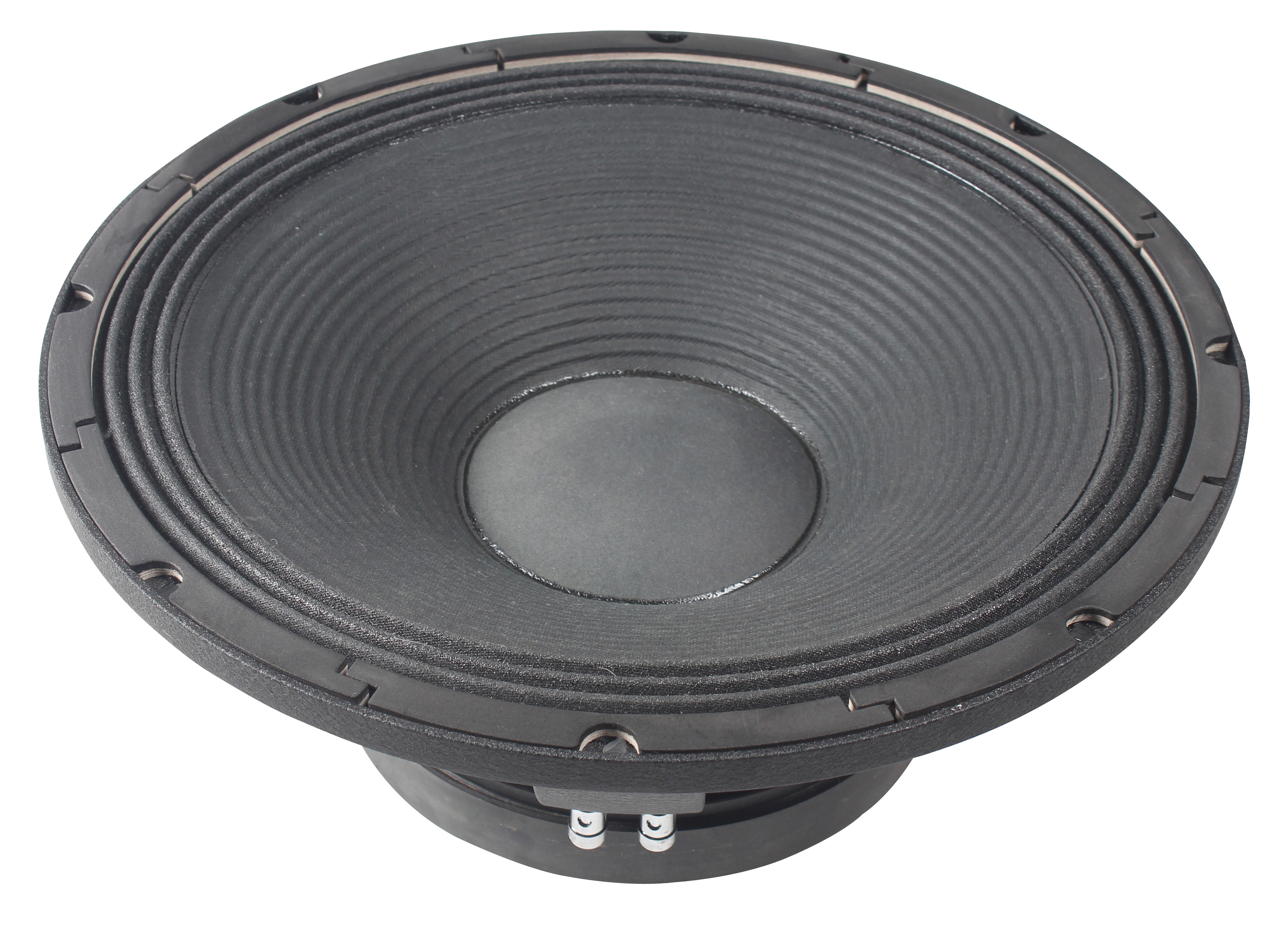

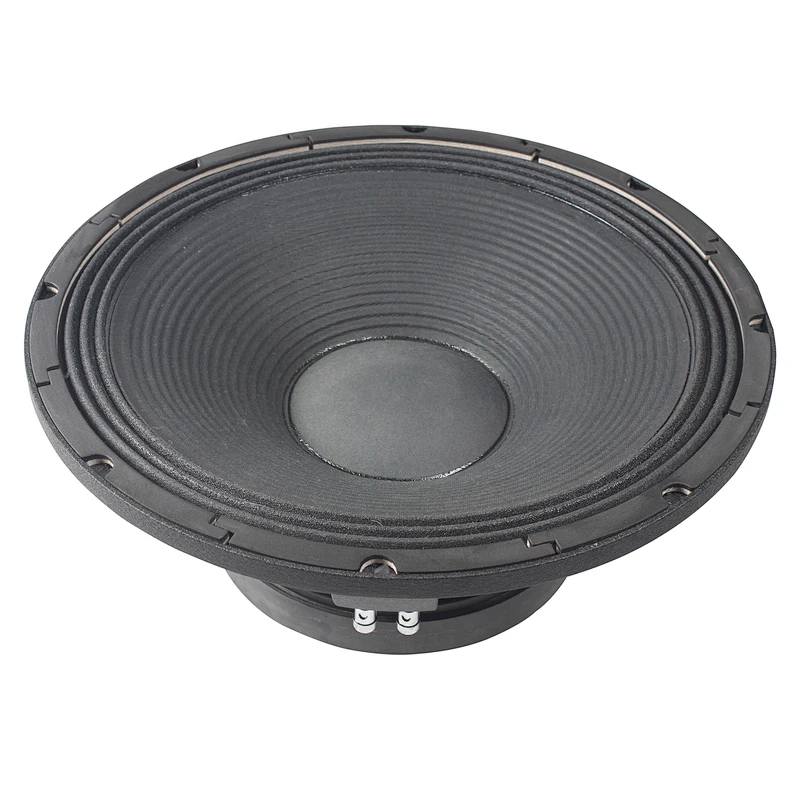

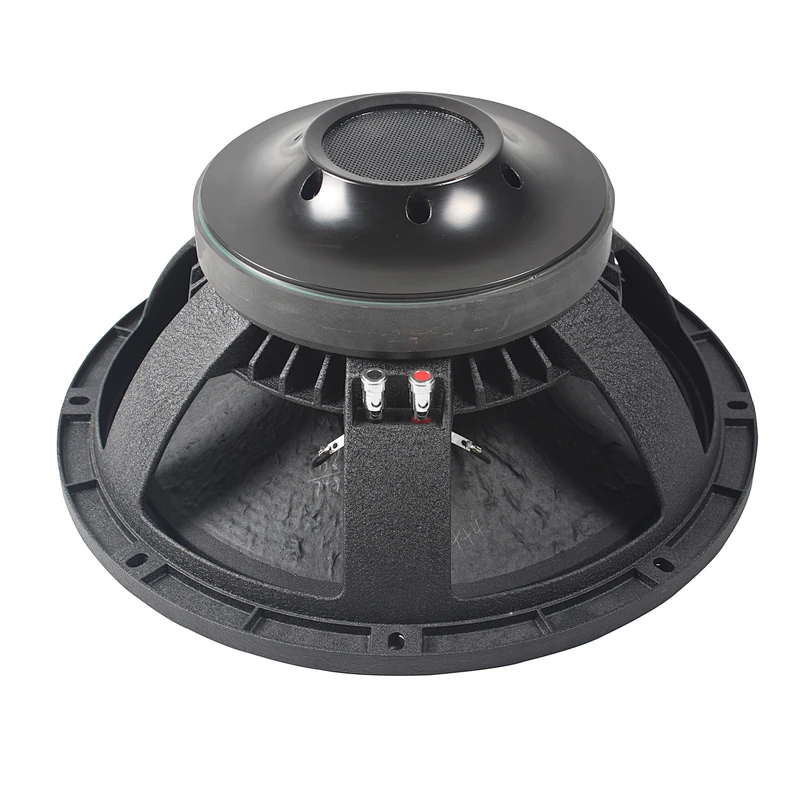

15PS100 15" Professional Woofer 8 Ohm
Quantity:

15PS100 15'' Professional Woofer 8 Ohm

The Speakers 15PS100 15"midbass driver boasts a blisteringly loud sensitivity rating of 99dB 1W/1m, which combined with its substantial 700 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 380 mm/ 15 in nominal diameter
  • 1400w continuous program power capacity
  • 100 mm/ 4 in vioce coil
  • 94.5 dB sensitivity

SPECIFICATIONS

Model15PS100
Nominal Diameter380 mm / 15 in
Nominal Impedance8 Ω
Rated Power AES700 W
Continuous Program Power1400 W
Sensitivity @ 1W/1M99 dB
Frequency Range35 - 1000 Hz
Voice Coil Diameter100 mm / 4 in
Voice Coil Winding Depth21 mm / 0.83 in
Magnetic Gap Depth10 mm / 0.39 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialGlass Fibre

Cone Material

Paper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter393 mm (15.47 in)
Bolt Circle Diameter374 mm (14.72 in)
Baffle Cutout Diameter352 mm (13.86 in)
Depth185.5 mm (7.30 in)
Net Weight9.8 kg / 21.5 lbs
Shipping Weight11.1 kg / 24.4 lbs
Shipping Box

403x403x201mm(0.033m³)

15.87x15.87x7.91 in

Send Message

*
*
* clear input
*
* clear input
* clear input
* clear input
* clear input

Related Products

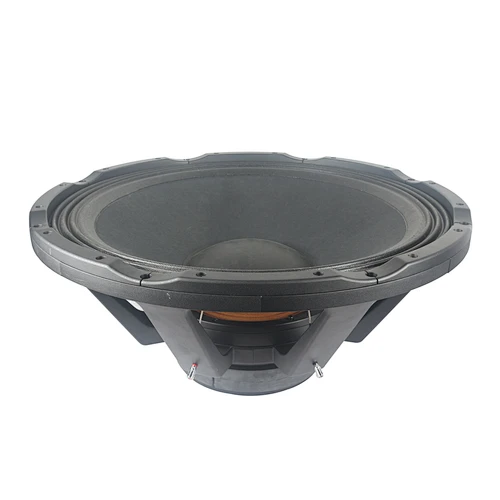

HKE-3206
HKE-3206
Model NO. HKE-3206

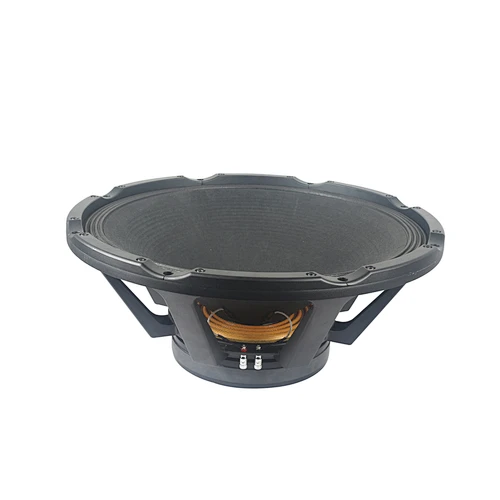

HKE-2405
HKE-2405
Model NO. HKE-2405

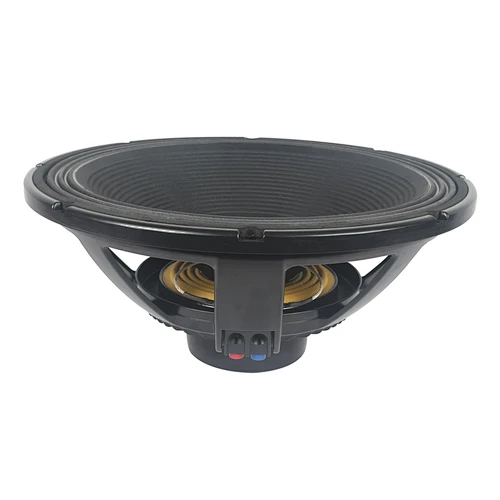

LF18N401
LF18N401
Model NO. LF18N401

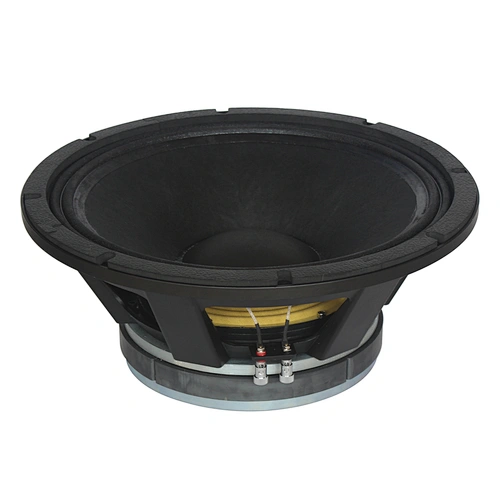

HKE-691827
HKE-691827
Model NO. HKE-691827
PD 1852
PD 1852
Model NO. PD 1852

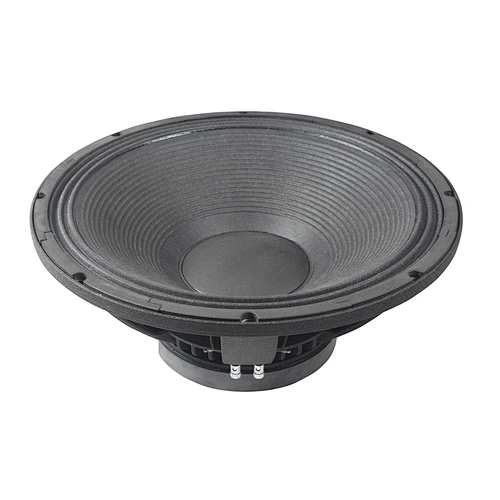

18PS100
18PS100
Model NO. 18PS100

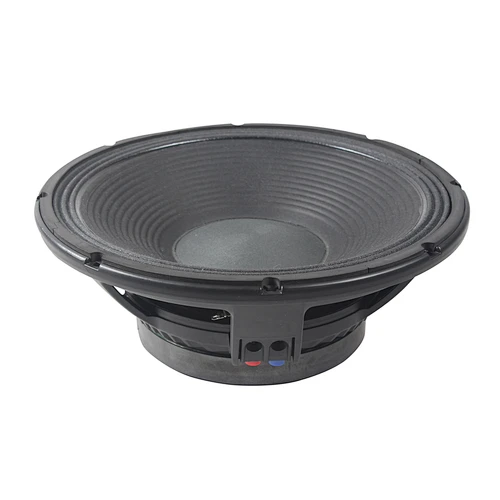

LF18X400
LF18X400
Model NO. LF18X400

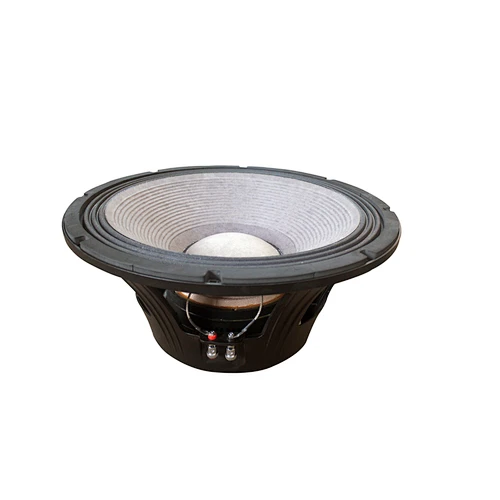

GST-181200
