Model NO.
15BM-300B

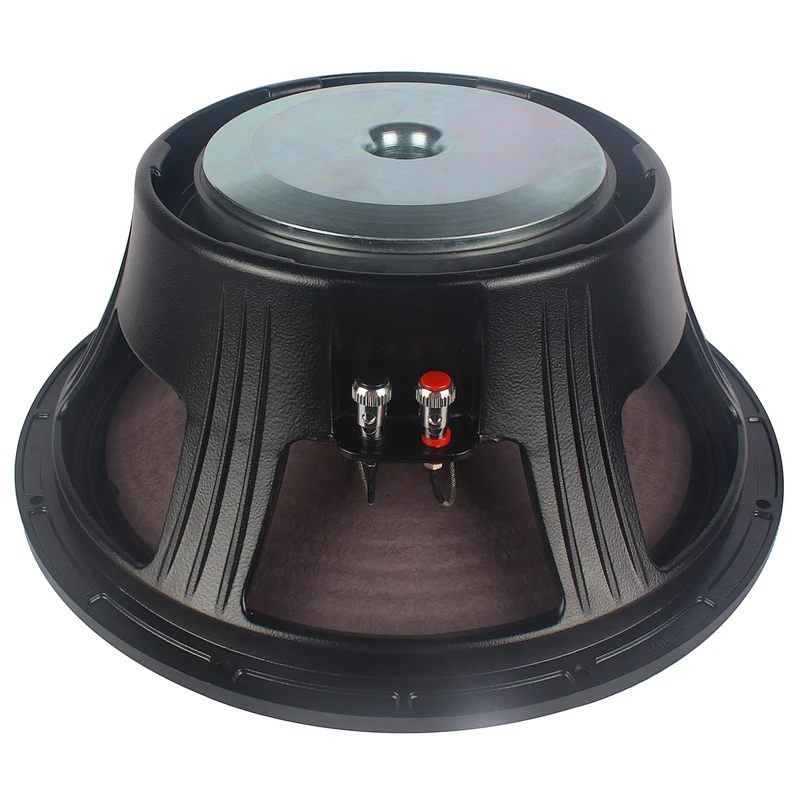

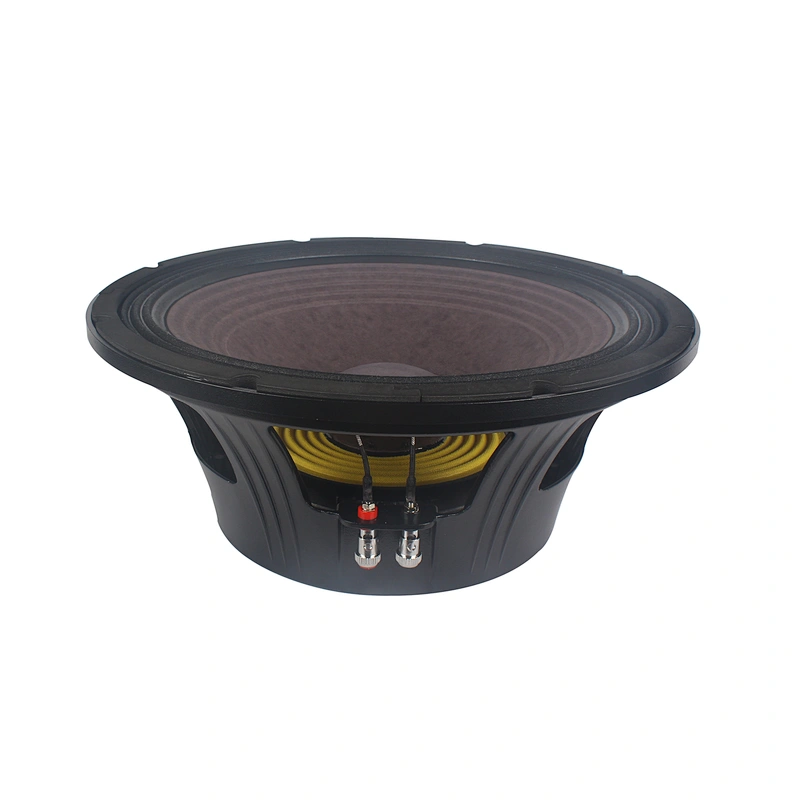

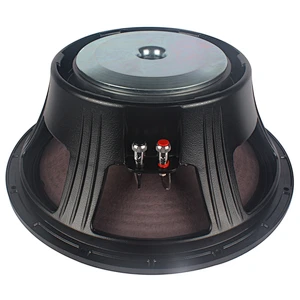

15BM-300B 15" Professional Woofer 8 Ohm
Quantity:

15BM-300B 15"Professional Woofer 8 Ohm

The Speakers 15BM-300B 15"midbass driver boasts a blisteringly loud sensitivity rating of 97dB 1W/1m, which combined with its substantial 300 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 381 mm/ 15 in nominal diameter
  • 600w continuous program power capacity
  • 76 mm/ 3 in vioce coil
  • 97 dB sensitivity

SPECIFICATIONS

Model15BM-300B
Nominal Diameter381 mm / 15 in
Nominal Impedance8 Ω
Rated Power AES300 W
Continuous Program Power600 W
Sensitivity @ 1W/1M97 dB
Frequency Range45 - 3500 Hz
Voice Coil Diameter76 mm / 3 in
Voice Coil Winding Depth16.8 mm / 0.66in
Magnetic Gap Depth10 mm / 0.39 in

Constructive Characteristics

MagnetFerrite
Basket MaterialStamp steel frame
Voice Coil Winding MaterialCCA-W
Voice Coil Former MaterialGlass Fibre

Cone Material

Paper
Surround MaterialCloth
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter391 mm (15.39 in)
Bolt Circle Diameter371 mm (14.61 in)
Baffle Cutout Diameter354 mm (13.94 in)
Depth161 mm (6.34 in)
Net Weight8.0 kg / 17.6 lbs
Shipping Weight9.0 kg / 19.8 lbs
Shipping Box

401x401x176mm(0.028m³)

15.79x15.79x6.93 in
