12PS100
12PS100
12PS100
12PS100
12PS100

12PS100

Model NO.
12PS100

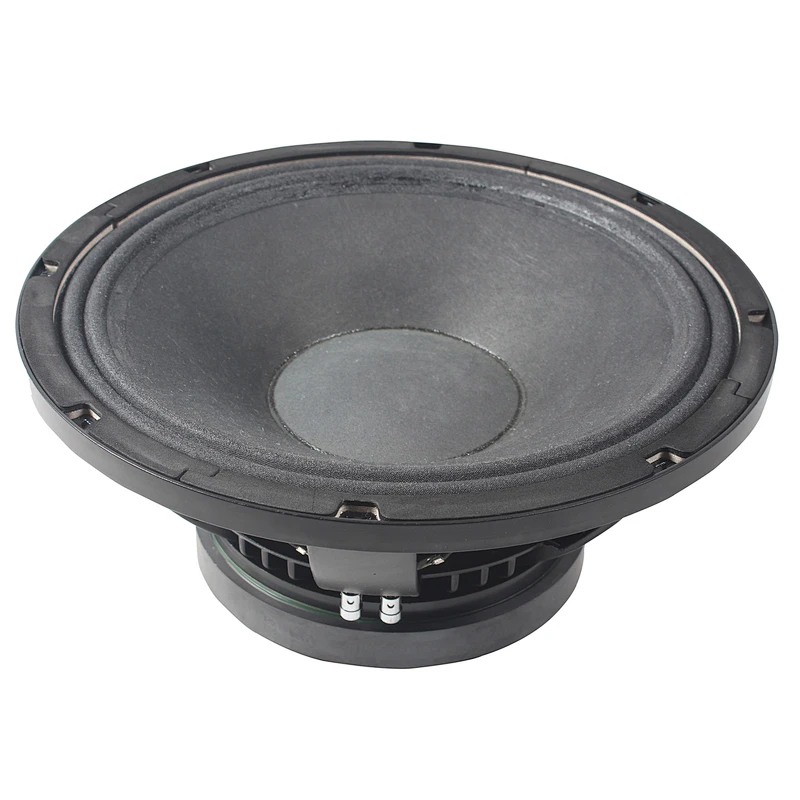

12PS100 12" Professional Woofer 8 Ohm
Quantity:

12PS100 12"Professional Woofer 8 Ohm

The Speakers 12PS100 12"midbass driver boasts a blisteringly loud sensitivity rating of 93dB 1W/1m, which combined with its substantial 700 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 305 mm/ 12 in nominal diameter
  • 1400w continuous program power capacity
  • 100 mm/ 4 in vioce coil
  • 93 dB sensitivity

SPECIFICATIONS

Model12PS100
Nominal Diameter305 mm / 12 in
Nominal Impedance8 Ω
Rated Power AES700 W
Continuous Program Power1400 W
Sensitivity @ 1W/1M93 dB
Frequency Range45 - 1000 Hz
Voice Coil Diameter100 mm / 4 in
Voice Coil Winding Depth21 mm / 0.83 in
Magnetic Gap Depth10 mm / 0.39 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCCAW
Voice Coil Former MaterialGlass Fibre
Cone MaterialPaper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter313 mm (12.32 in)
Bolt Circle Diameter296 mm (11.65 in)
Baffle Cutout Diameter280 mm (11.02 in)
Depth142.5 mm (5.61 in)
Net Weight8.8 kg / 19.4 lbs
Shipping Weight9.4 kg / 20.7 lbs
Shipping Box

323x323x158mm(0.016m³)

12.72x12.72x6.22 in
