12MB-300B
12MB-300B
12MB-300B
12MB-300B
12MB-300B

12MB-300B

Model NO.
12MB-300B

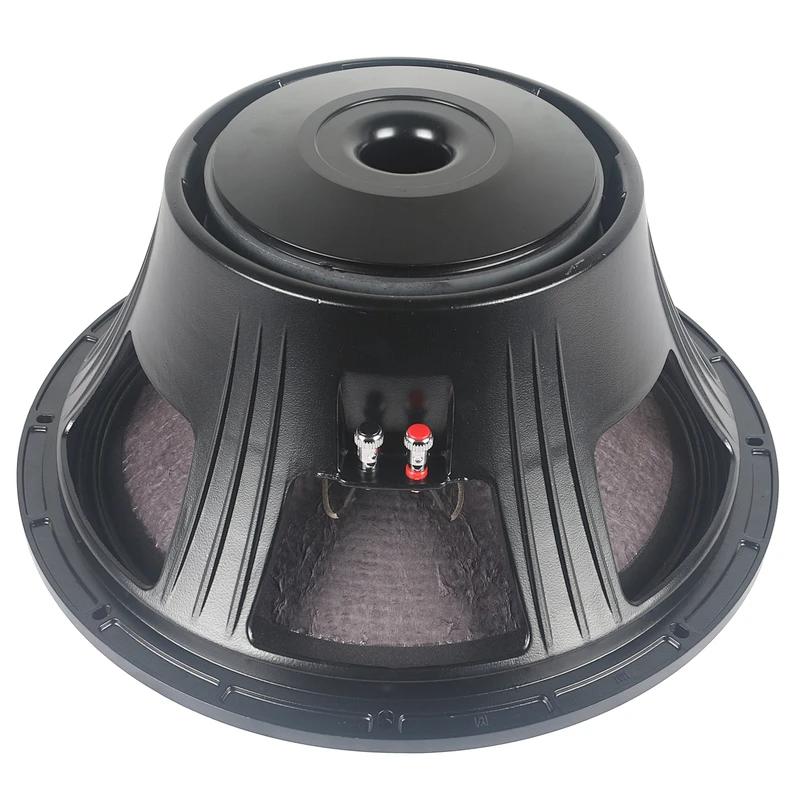

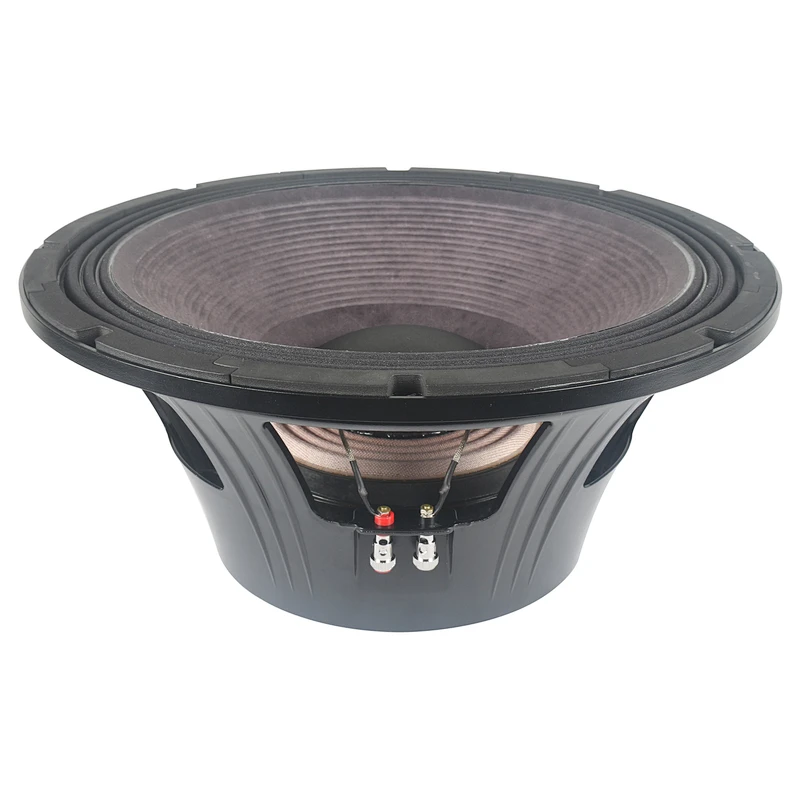

12BM-300B 12" Professional Woofer 8 Ohm
Quantity:

12BM-300B 12"Professional Woofer 8 Ohm

The Speakers 12BM-300B 12"midbass driver boasts a blisteringly loud sensitivity rating of 95dB 1W/1m, which combined with its substantial 300 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • 305 mm/ 12 in nominal diameter
  • 600w continuous program power capacity
  • 76 mm/ 3 in vioce coil
  • 95 dB sensitivity

SPECIFICATIONS

Model12BM-300B
Nominal Diameter305 mm / 12 in
Nominal Impedance8 Ω
Rated Power AES300 W
Continuous Program Power600 W
Sensitivity @ 1W/1M95 dB
Frequency Range45 - 3000 Hz
Voice Coil Diameter76 mm / 3 in
Voice Coil Winding Depth16.8 mm / 0.66 in
Magnetic Gap Depth10 mm / 0.39 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCCAW
Voice Coil Former MaterialGlass Fibre
Cone MaterialPaper
Surround MaterialCloth
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter314 mm (12.36 in)
Bolt Circle Diameter297 mm (11.69 in)
Baffle Cutout Diameter285 mm (11.22 in
Depth149 mm (5.87 in)
Net Weight7.4 kg / 16.3 lbs
Shipping Weight8.2 kg / 18.1 lbs
Shipping Box

325x325x165mm(0.017m³)

12.80x12.80x6.50 in
