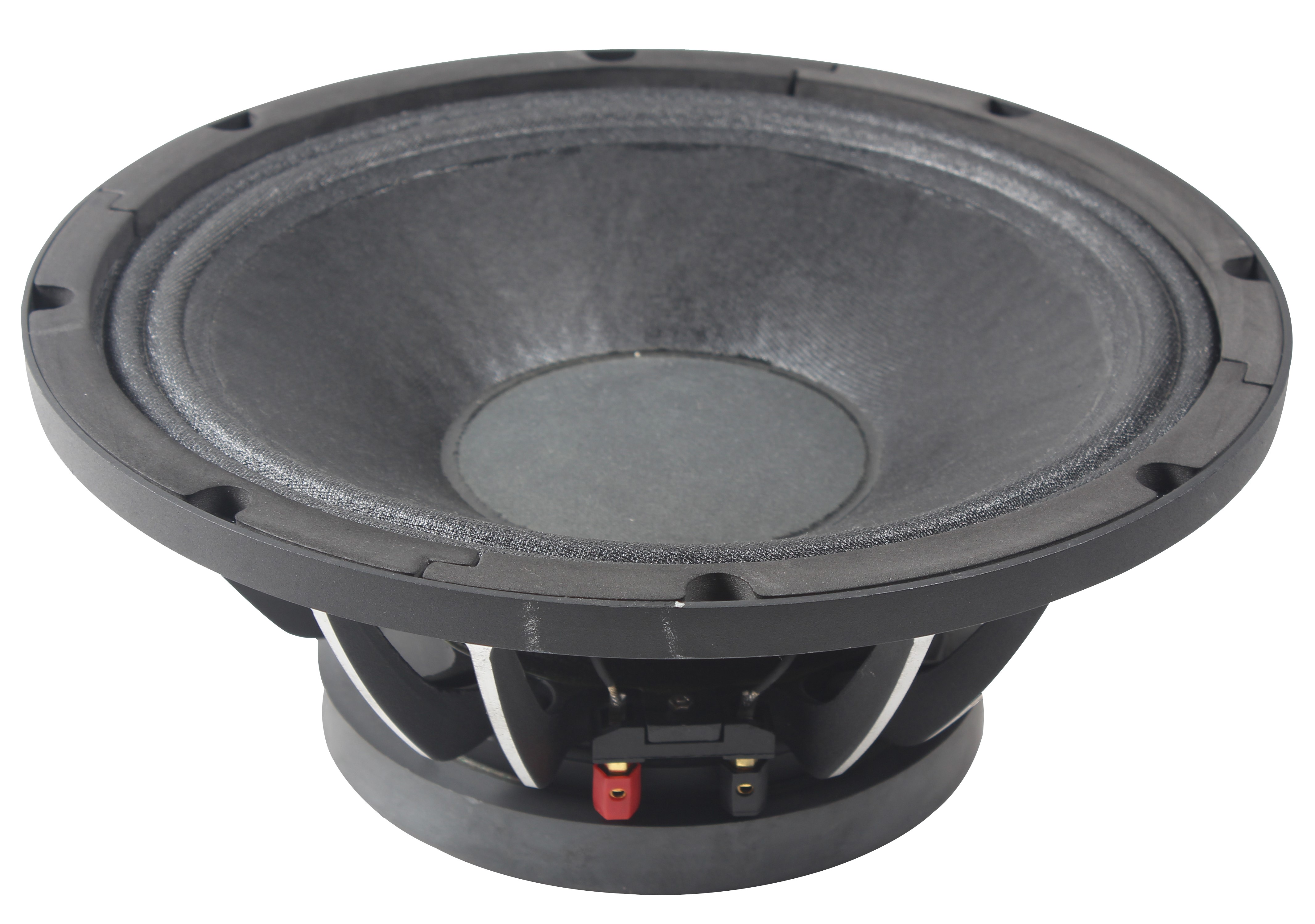

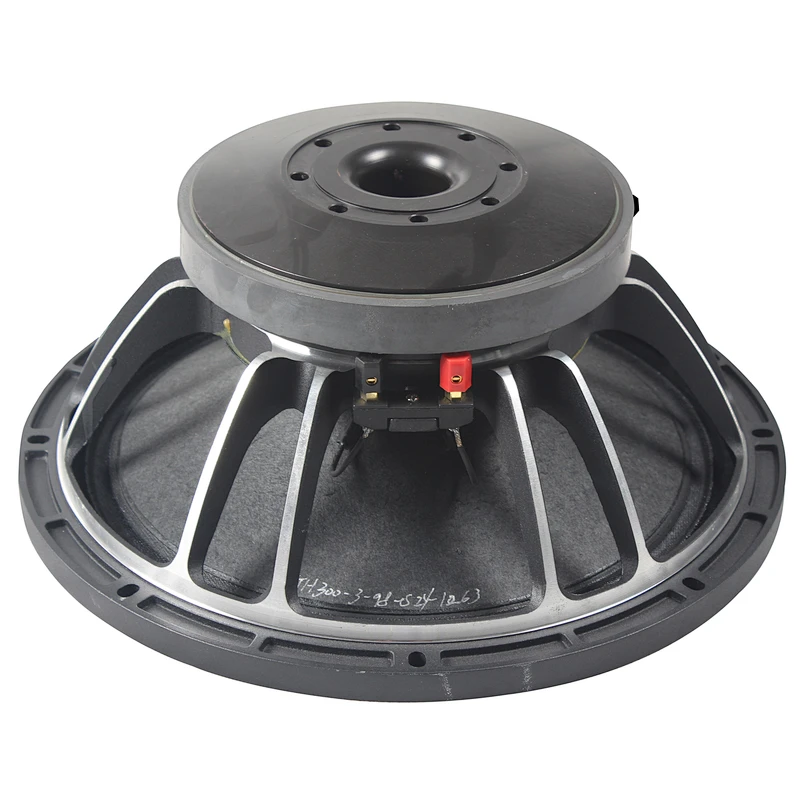

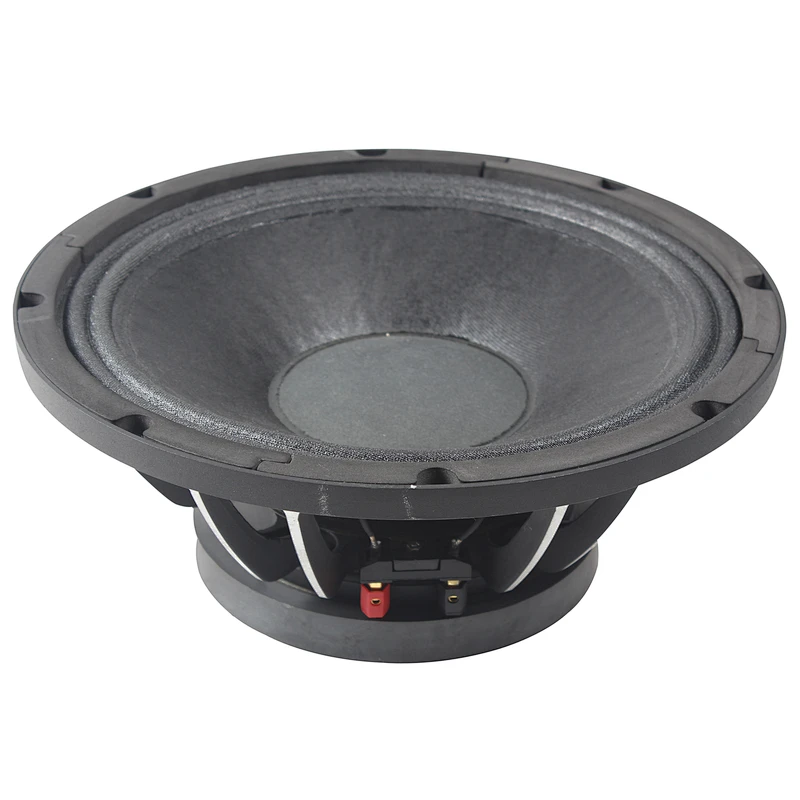

12FW76
12FW76
12FW76
12FW76
12FW76

12FW76

Model NO.
12FW76
Minimum order quantity
100 pieces
High Power 12 Inch Woofer With 500 Watts
Quantity:

High Power 12 Inch woofer With 500 Watts

12FW76 is 12'' woofer with very good power handling, excellent and very low distortion.
Copper voice coil construction, suspensions and cone materials designed to survive at 500Watt RMS power.

FEATURES

  • 3-inch, fiberglass inside/outside copper voice coil
  • 12'' woofer
  • 1000W continuous program power handling
  • 100 dB Sensitivity
  • 55 Hz – 3kHz Frequency range
  • M-roll surround and exponential cone geometry

SPECIFICATIONS

Model12FW76
Nominal Diameter305 mm / 12 in
Nominal Impedance8 Ω
Rated Power AES500 W
Continuous Program Power1000 W
Sensitivity @ 1W/1M100 dB
Frequency Range55 - 3000 Hz
Voice Coil Diameter76 mm / 3 in
Voice Coil Winding Depth19 mm / 0.74 in
Magnetic Gap Depth11 mm / 0.43 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialClass Fibre
Cone MaterialPaper
Surround MaterialPolycotton
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter315 mm (12.40 in)
Bolt Circle Diameter300 mm (11.81 in)
Baffle Cutout Diameter283 mm (11.14 in)
Depth142 mm (5.59 in)
Net Weight8.5 kg / 18.7 lbs
Shipping Weight9.2 kg / 20.28 lbs
Shipping Box

325x325x157mm(0.017m³)

12.80x12.80x6.18 in
