Model NO.
10MD26

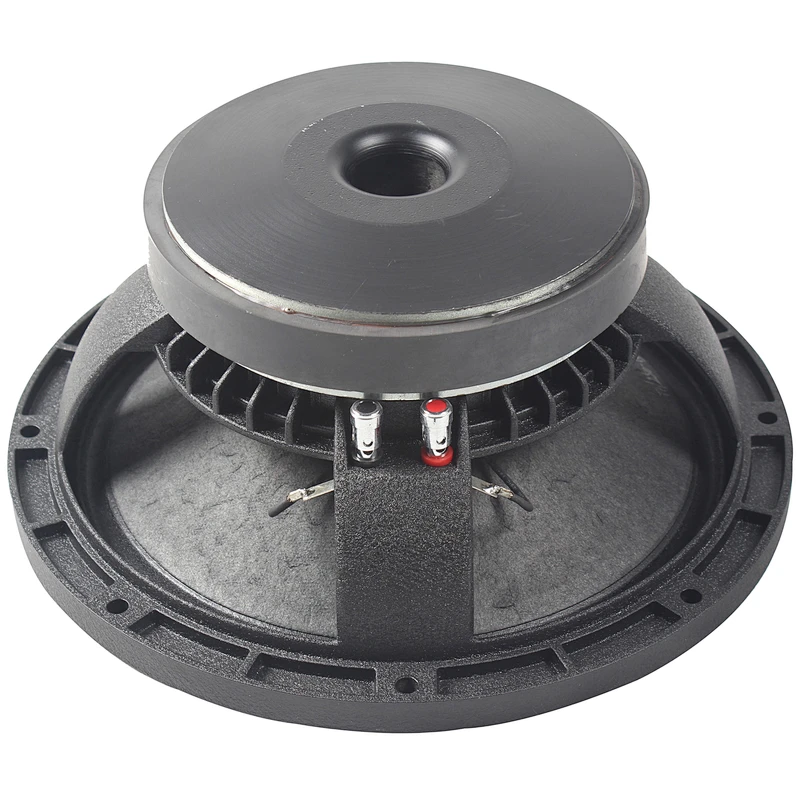

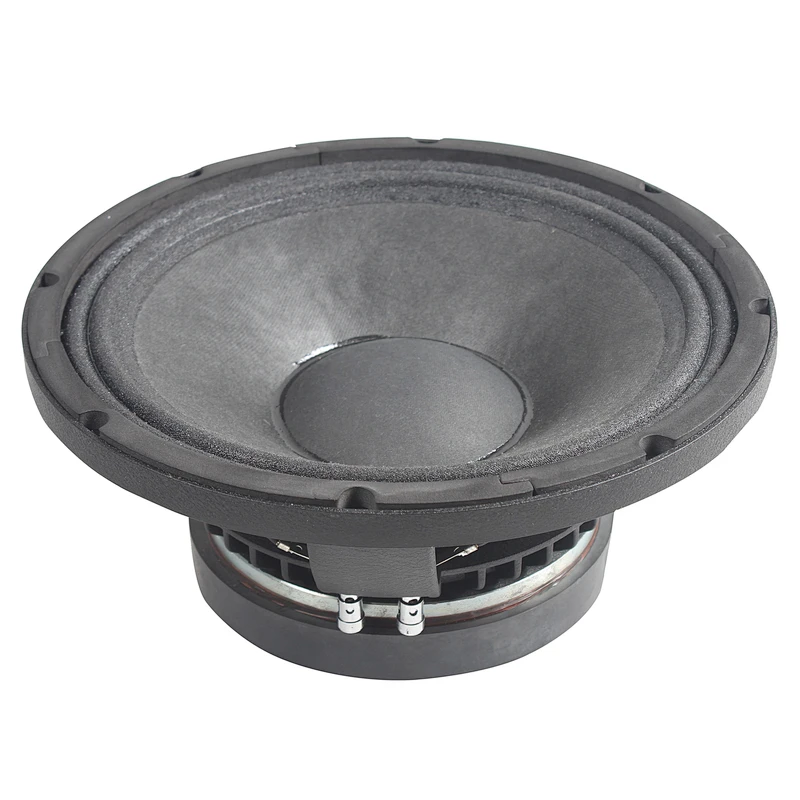

B&C 10MD26 10" Professional Woofer 8 Ohm
Quantity:

B&C 10MD26 10"Professional Woofer 8 Ohm

The B&C Speakers 10MD26 10"midbass driver boasts a blisteringly loud sensitivity rating of 100dB 1W/1m, which combined with its substantial 350 watts RMS power rating makes it capable of generating a lot of output!

FEATURES

  • High-power midrange and midbass driver for demanding professional applications
  • Copper ring in the magnetic circuit reduces distortion/extends HF response
  • Exceptionally linear, articulate sound reproduction, even at extreme output levels

SPECIFICATIONS

Model10MD26
Nominal Diameter250 mm / 10 in
Nominal Impedance8 Ω
Rated Power AES350 W
Continuous Program Power700 W
Sensitivity @ 1W/1M100 dB
Frequency Range80 - 4000 Hz
Voice Coil Diameter76 mm / 3 in
Voice Coil Winding Depth11 mm / 0.43 in
Magnetic Gap Depth8 mm / 0.31 in

Constructive Characteristics

MagnetFerrite
Basket MaterialAluminium Die-Cast
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialKapton
Cone MaterialPaper
Surround MaterialCloth
Dust Dome MaterialPaper

Mounting & Shipping Information

Overall Diameter260 mm (10.24 in)
Bolt Circle Diameter246 mm (9.69 in)
Baffle Cutout Diameter234 mm (9.21 in)
Depth116 mm (4.57 in)
Net Weight7.3 kg / 16.1 lbs
Shipping Weight7.9 kg / 17.4 lbs
Shipping Box

270x270x131mm(0.009m³)

10.63x10.63x5.16 in
