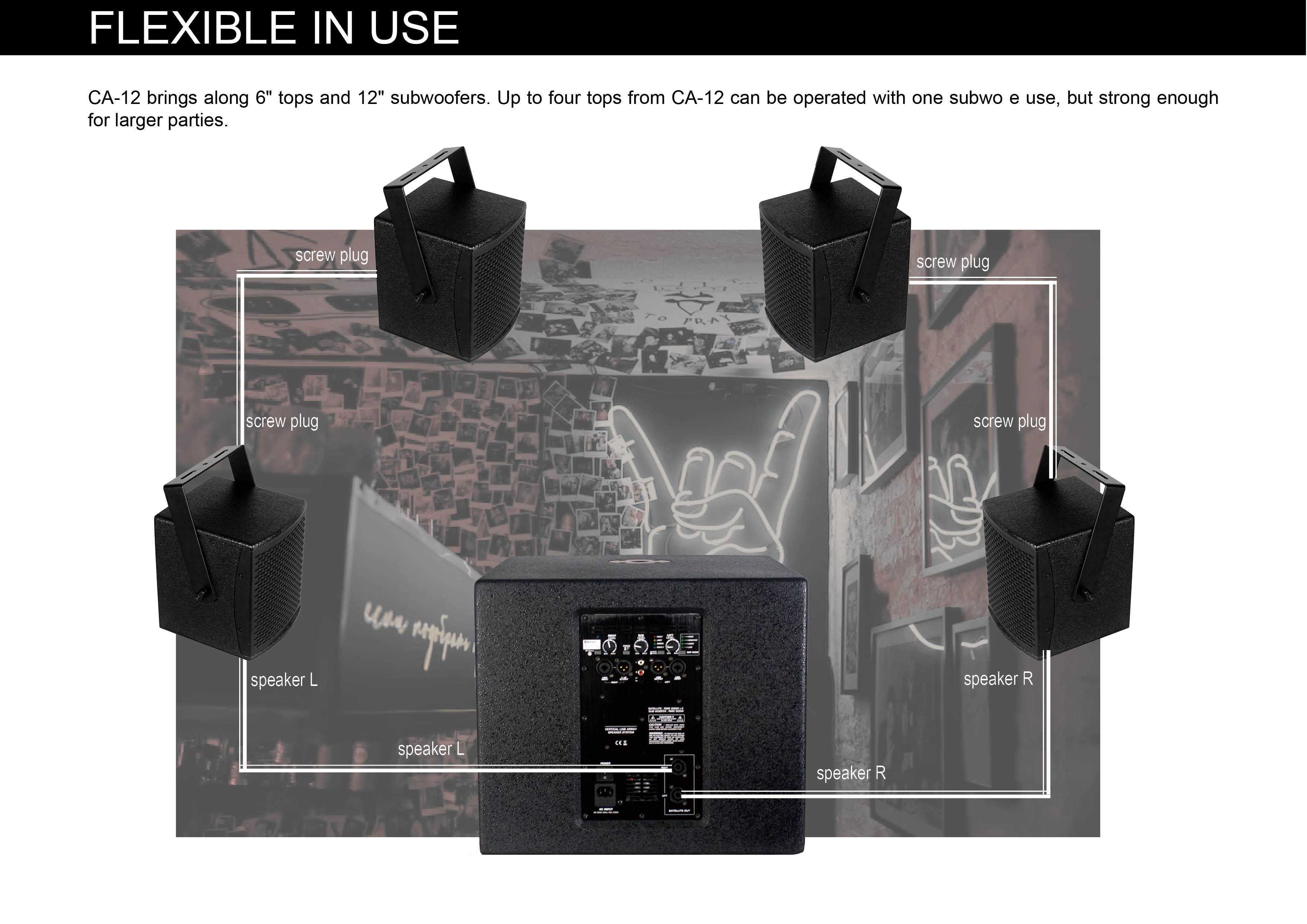

Flexible in use
CA-12 brings along 6"tops and 12"subwoofers. Up to four tops from CA-12 can be operated with one subwoofer. Since the system is so flexibly expandable, it can be used for a wide variety of applications: For permanent installation in bars, restaurants and stores as well as mobile, for example for weddings or small bands. Wherever"a little more"is allowed, CA-12 is the right choice. The system is compact enough for mobile use, but strong enough for larger parties.

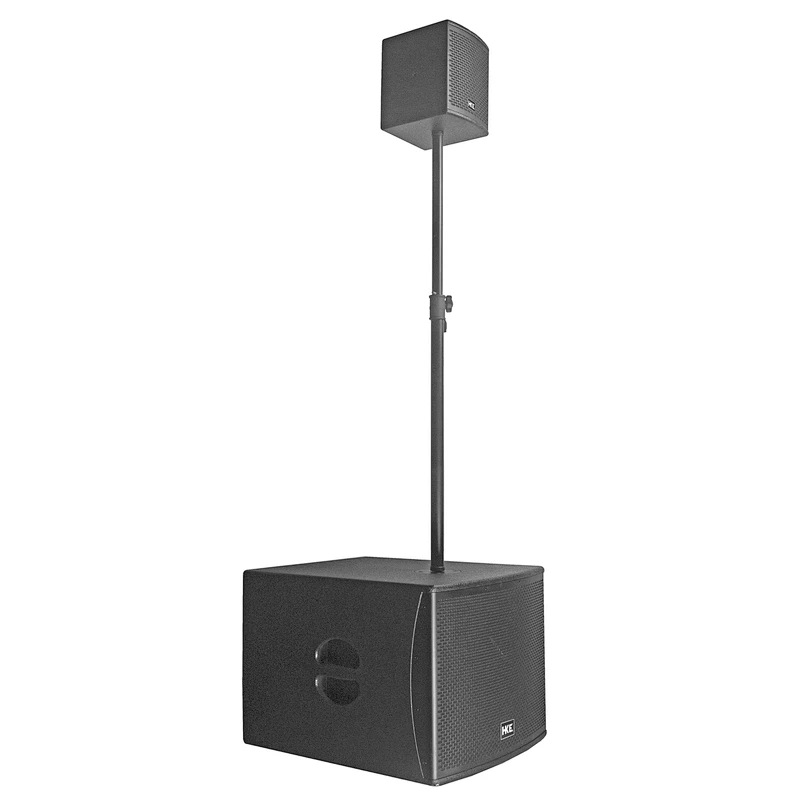

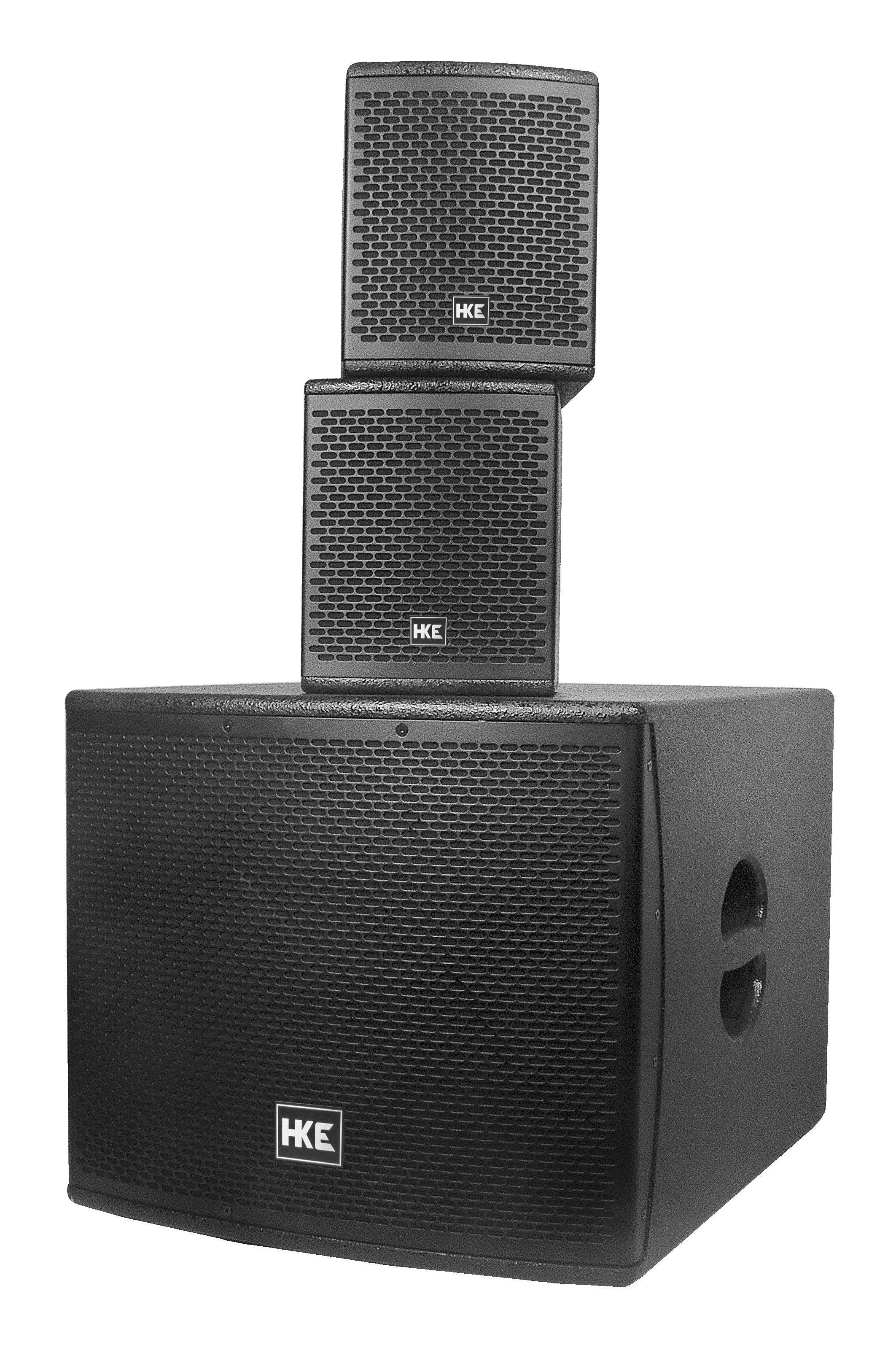

Active 12"subwoofer with DSP and Bluetooth inkl. 2x 6.5"satellite speakers
Active 12"subwoofer with DSP and Bluetooth
- 12"bassreflex subwoofer with DSP and 700 watts RMS power
- Flexibly extendable with CA-12-6 satellites for 2.1 and 4.1 configurations
- DSP-controlled class D amplifier (500 W + 2 x 100 W)
- Integrated Bluetooth audio streaming
- 4 EQ presets with indicators
- Signal limiter and crossover

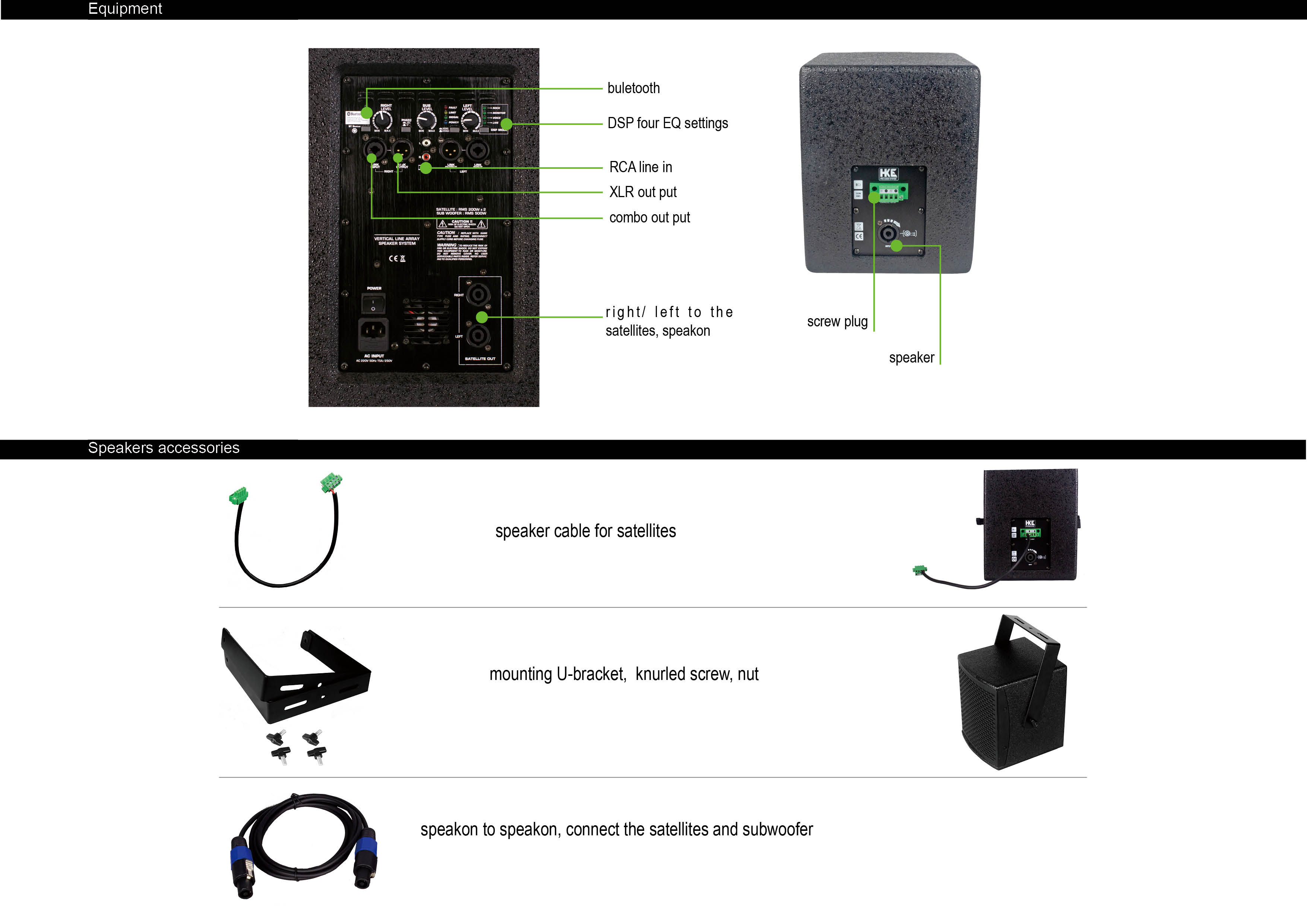

- Signal inputs via combo jacks (XLR/6.3 mm jack), RCA and 3.5 mm jack
- XLR outputs for linking further CA-12 systems or active systems
- Separate volume controls for subwoofer and satellites L/R
- Stereo/mono selection
- Phase reversal switch
- Fault, limit, signal and power indicators
- Built-in protection circuits: soft start, short-circuit, limiter, overcurrent, overheat
- M20 metal flange for mounting satellite speakers
- Multiplex enclosure with scratch-resistant lacquer surface and steel grille
- Built-in handles and low weight for ease of transport
- Delivery includes two speaker cables
- For mobile live and DJ applications and installation in bars, stores, conference rooms and home theaters
- Digital signal processorControlling by Bluetooth

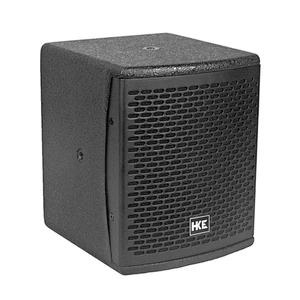

2x 6.5"satellite speakers
- 8-ohm speaker pair with 6.5"woofer and 1"tweeter
- For use with CA-12 subwoofers for 2.1 and 4.1 configurations
- Incl. 2 x U-bracket for wall, ceiling and stand installation

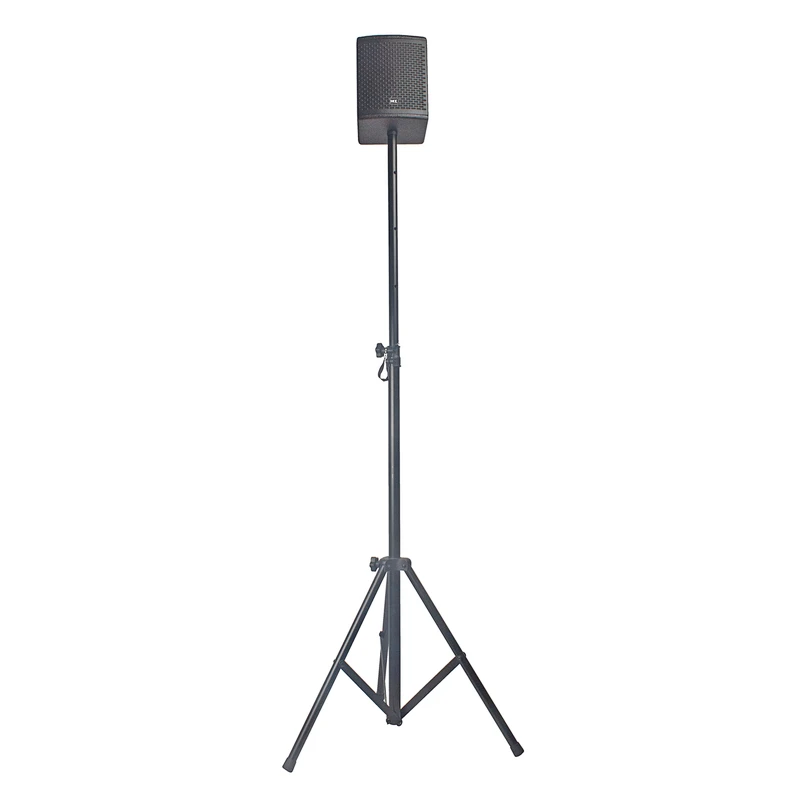

- Optional stand adaptor required for stand mounting
- Extension U-bracket and cable available for connecting 2 satellite speakers
- Rated power: 130 W RMS/260 W program

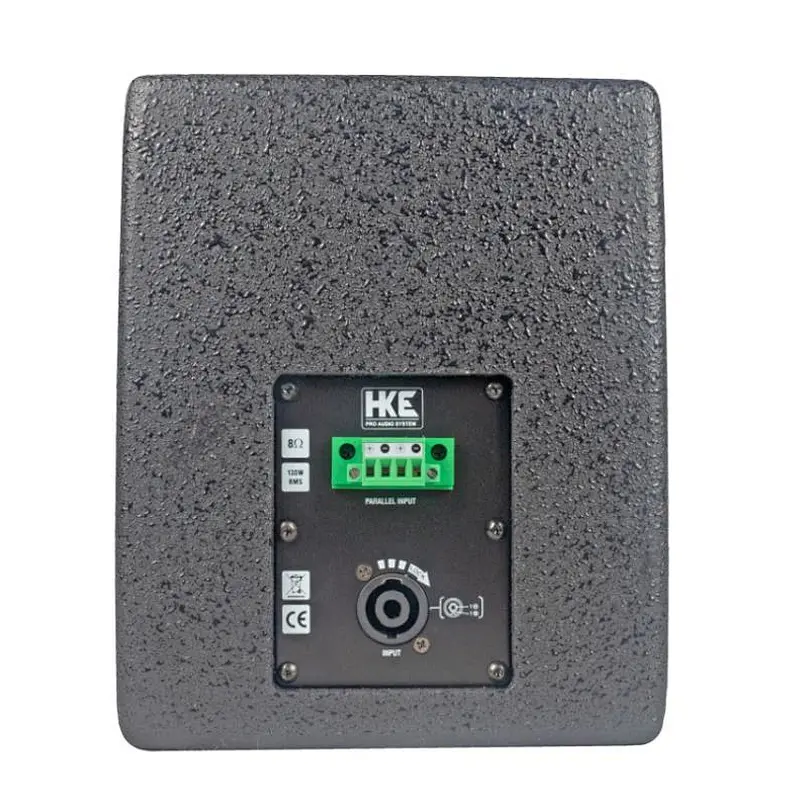

- Connectors: 1 x speaker and screw plug terminal
- MDF cabinet with M8 threaded inserts
- Scratch-resistant lacquer surface and steel grille
- Transport bag for 4 satellites, brackets and cables optiona
General Specifications
CA-12A Subwoofer active black
| Model | CA-12 |
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 1000 W |
| Output power | 1 x 500 W RMS，2 x 100 W RMS (8 ohms)，2 x 200 W RMS (4 ohms) |
| Power connection | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Frequency range | 40 - 160 Hz |
| Sensitivity | 103 dB |
| Max. SPL | 128 dB |
| DSP | Digital signal processor |
| Control | Bluetooth |
| Attachment system | M20 thread |
| Circuitry | Class D |
| Connections | Input: 2 x line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: 1 x line via 3.5 mm jack (stereo) mounting version Input: 1 x line via stereo RCA Output: 2 x line via 3-pin XLR Output: 2 x Top via speaker built-in socket (f) |
| Input channels | 1 x stereo via Combination socket or RCA or Bluetooth, channel control via Rotary knob |
| Speakers | 1 x woofer (12") approx 30 cm，Voice coil lows (3") approx. 8 cm |
| Type of speaker | Subwoofer |
| Type | Vented |
| Color | Black/white, painted |
| Dimension | 470X570X400mm (0.1070m³) (18.5X22.5X15.7in) |
| Weight | 22.10 kg(48.7lb) |
CA-12-6 Top 2x
| Model | CA-12-6 |
| Rated power | 130 W RMS |
| Program power | 260 W |
| Frequency range | 150 - 20000 Hz |
| Sensitivity | 95 dB (1W/1m) |
| Max. SPL | 119 dB |
| Impedance | 8 Ohm |
| Connections | 1 x via speaker built-in socket (f) 1 x via screw terminal |
| Speakers | 1 x woofer (6.5") approx. 17 cm Voice coil lows (1") approx 2,5 cm 1 x Tweeter (1") approx 2,5 cm |
| Type of speaker | On-ceiling/on-wall speaker |
| Color | Black/White |
| Weight | 8.90 kg(19.62lb) |
Packing Units
| Dimensions | 1200 x 800 x 500mm(0.48m³) (47.2X31.5X19.7in) |
| Weight | 34,00 kg (74.96lb) |
