Model NO.

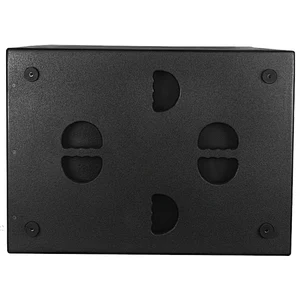

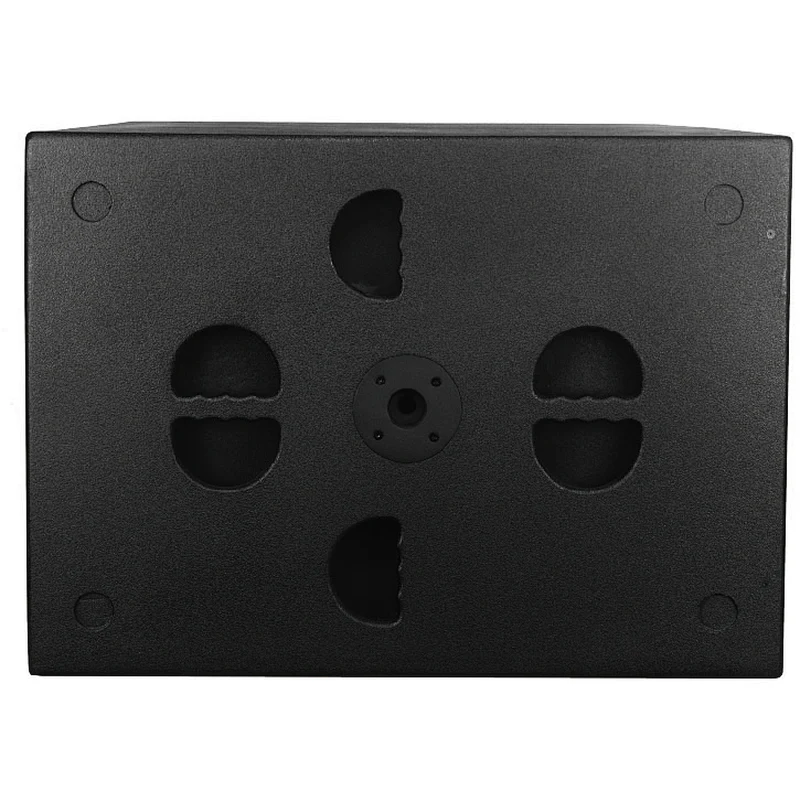

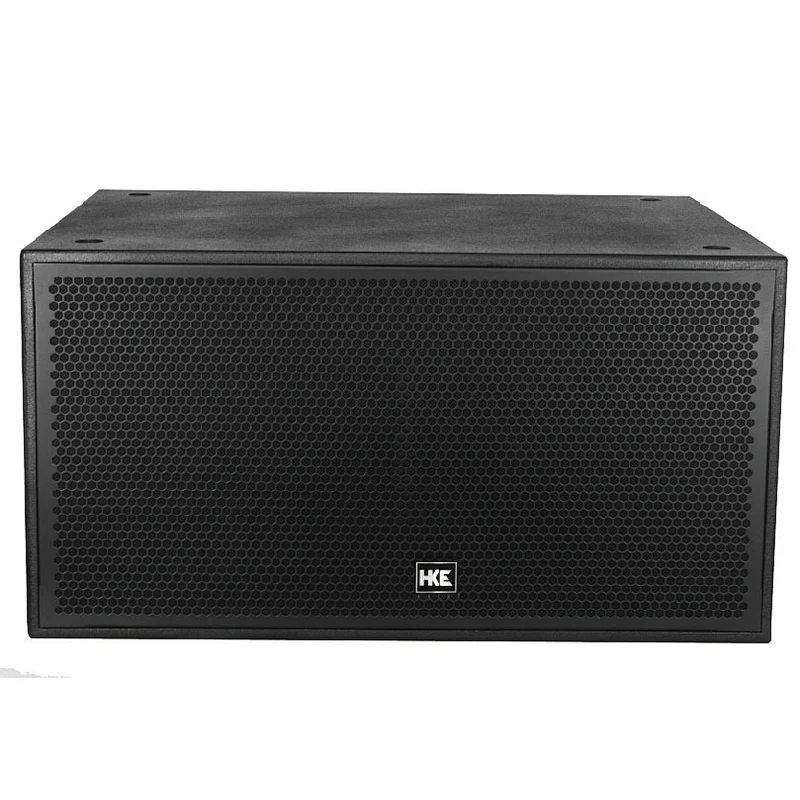

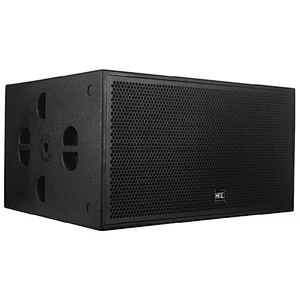

Bill-218SA

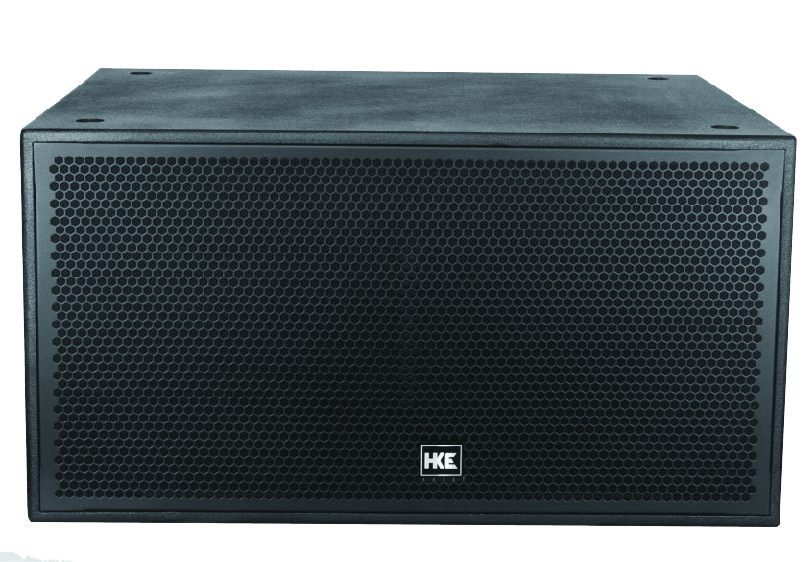

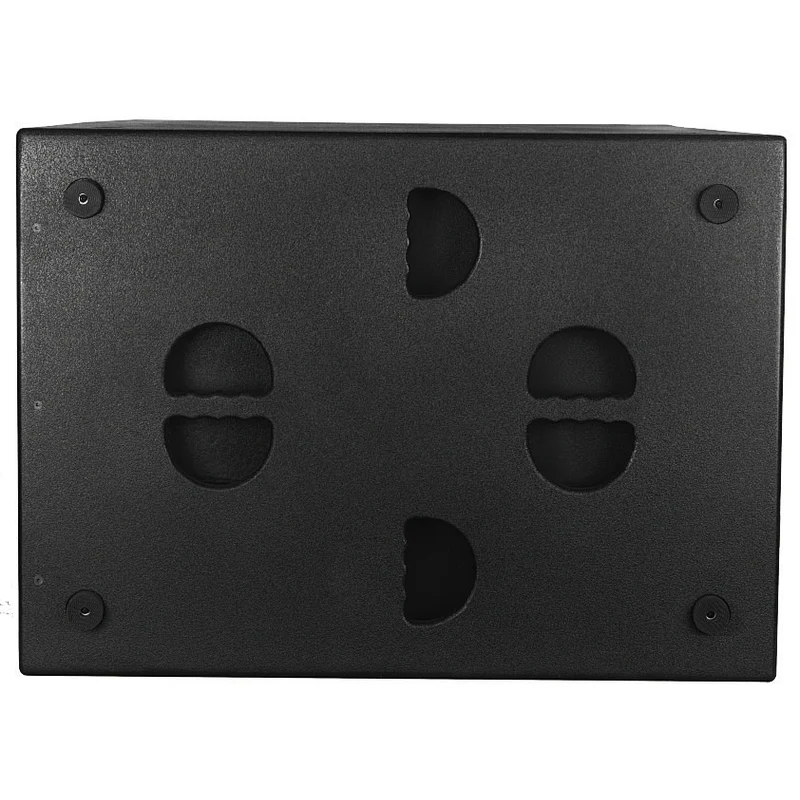

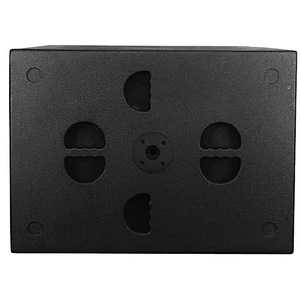

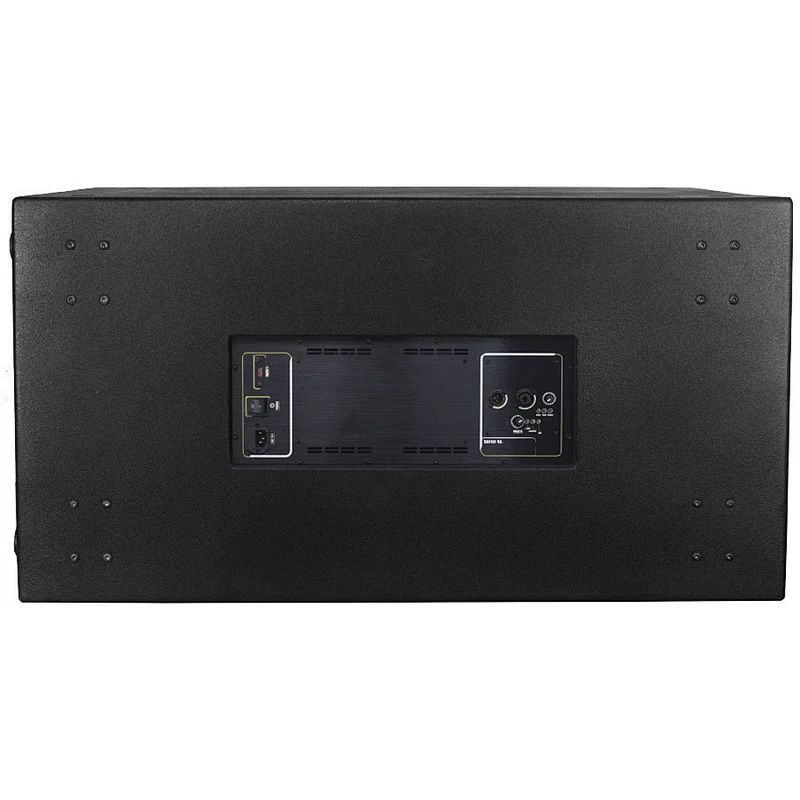

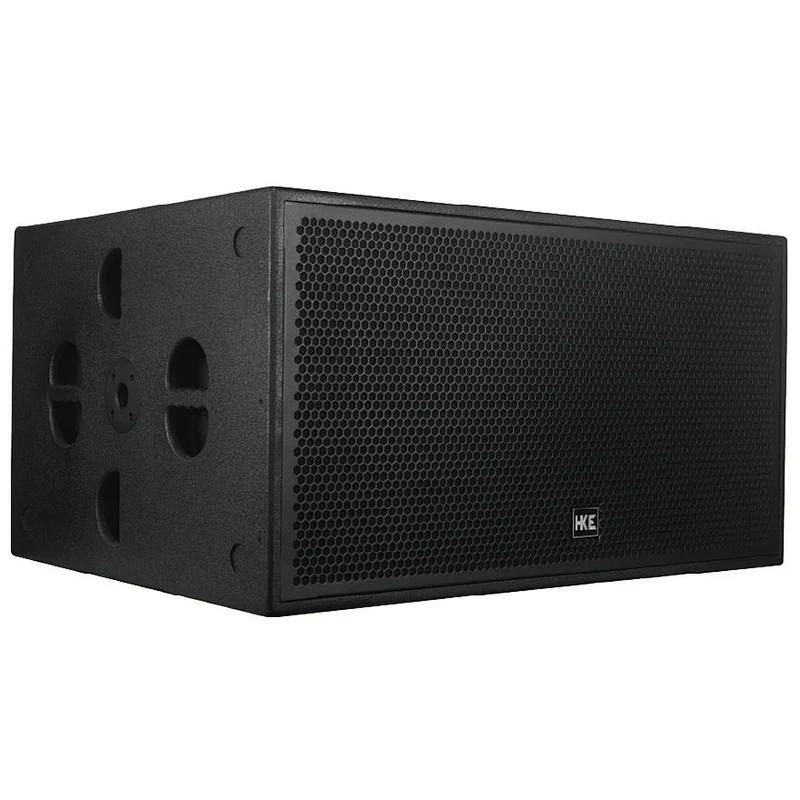

Active line array system for indoor and outdoor, Bill-218SA: dual 18 inch line array professional subwoofer. Ningbo professional speaker manufacturer
Quantity:

Bill Series: Bill-218SA,dual 18 inch subwoofer box for line array subwoofer speaker/ line array professional subwoofer

Bill-218SA is 218 inch subwoofer box for BILL SERIES line array subwoofer speaker. Compact cabinet, powerful bass.

1500w RMS power Class-D Amplifier, with volume, EQ, Phase, DSP processor.

Bill Series line array active system is perfect for outdoor line array and indoor line array. One active line array Bill set is suitable for 800-1000㎡.

FEATURES

  • Enclosure 18mm plywood
  • dual 18 inch subwoofer box
  • 2*18'' woofer, 4'' VC, 125 OZ
  • 1500W RMS power
  • Class-D, 96K Hz 48Bit sampling frequency DSP pricessor

SPECIFICATIONS

ModelBill-218SA
Typedual 18 inch subwoofer box
Freq. Response (-10dB)30 Hz-20k HZ/ 45 Hz-20k Hz
Sensitivity 1W@1M130 dB
Power Output(RMS)1500 watts
Nominal Impedance8 ohms
LH2*18'' woofer, 4'' VC, 125 OZ
AmplifierClass-D

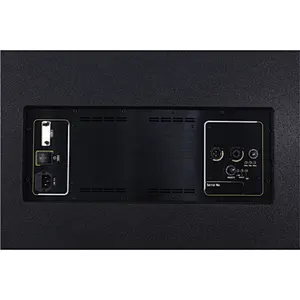

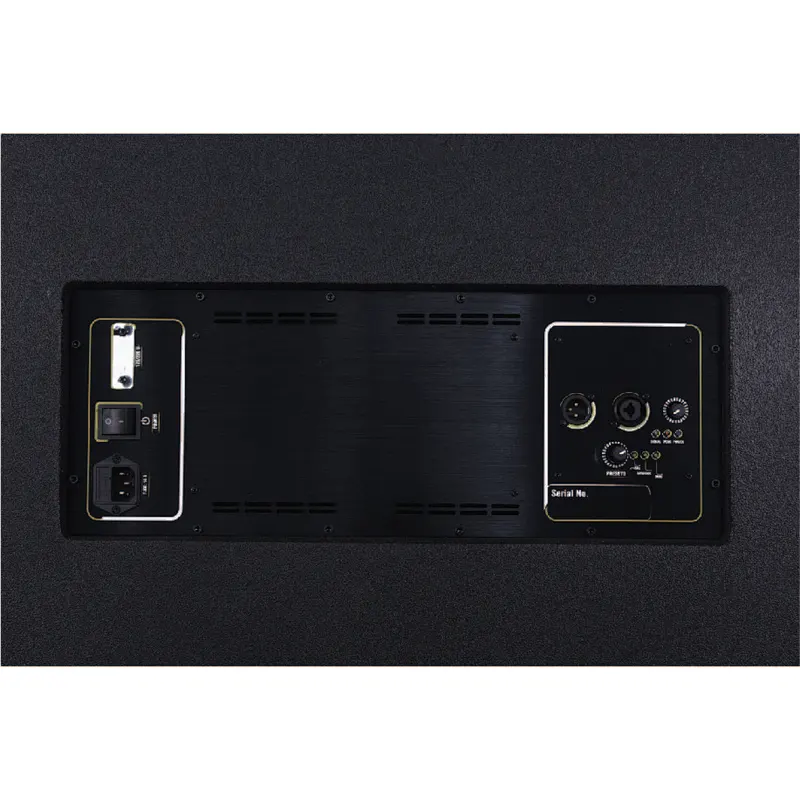

ControlsVolume, EQ, Phase
Line input connectors1*Combo(XLR/ Jack)
Line output connectors
1*XLR
DSP96K HZ 48 Bit Sampling frequency DSP Processor
Power supply230 V AC, 50 Hz
Enclosure18mm plywood
Cabinet surfaceSand painting
Package size(mm)865*665*1165

Send Message

*
*
* clear input
*
* clear input
* clear input
* clear input
* clear input

Related Products

Model NO. BILL SERIES
Model NO. Bill-6

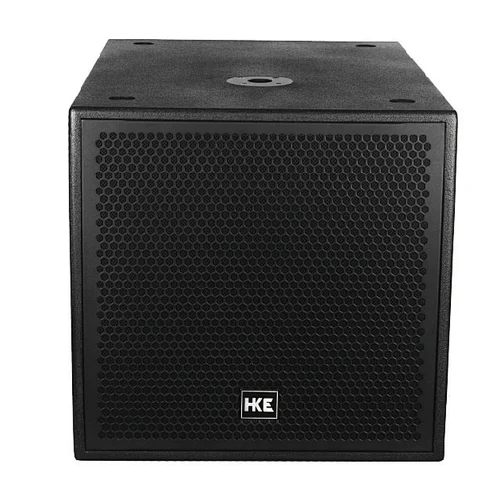

Model NO. Bill-18SA
