Model NO.
Bill-6
Bill Series is an innovative active system for mini line array: 6.5 inch active system Line array satellites, Ningbo professional speaker manufacturer
Quantity:

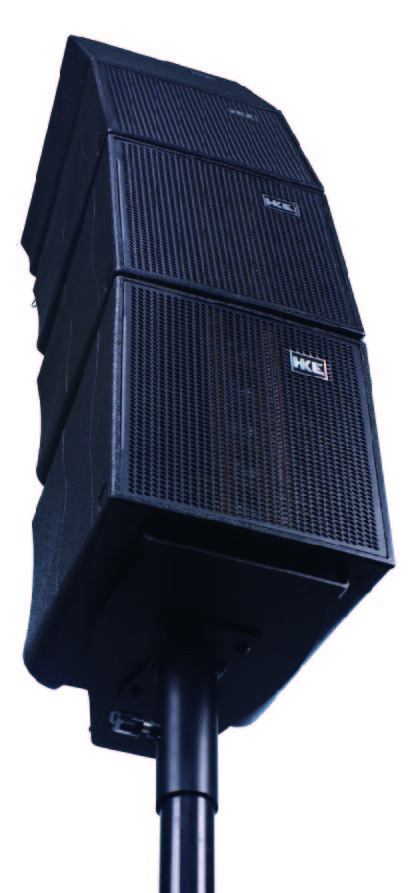

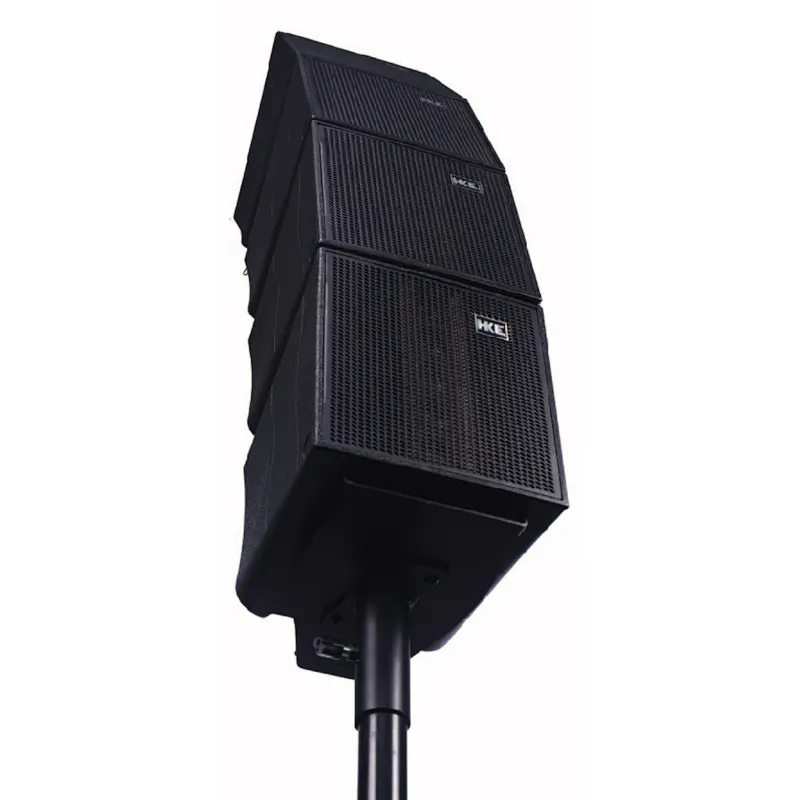

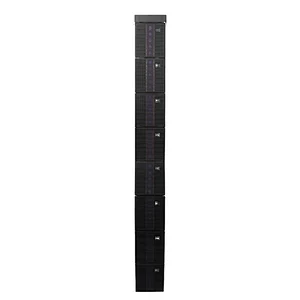

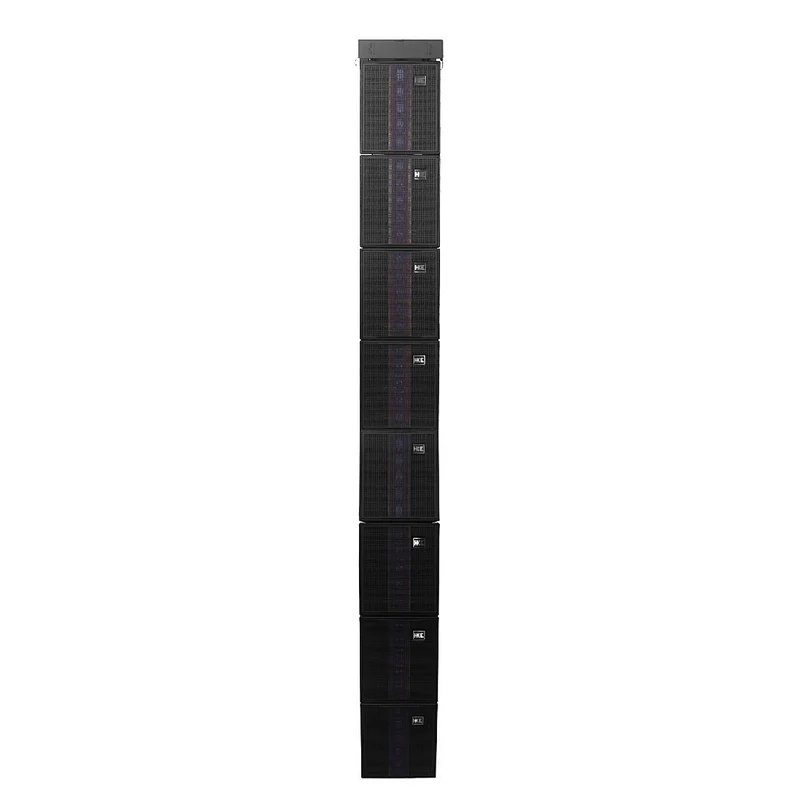

Bill Series active mini line array

This is new active mini line array Bill Series which is an innovative system, uniquely combining portability, sound perfection and ease of use.

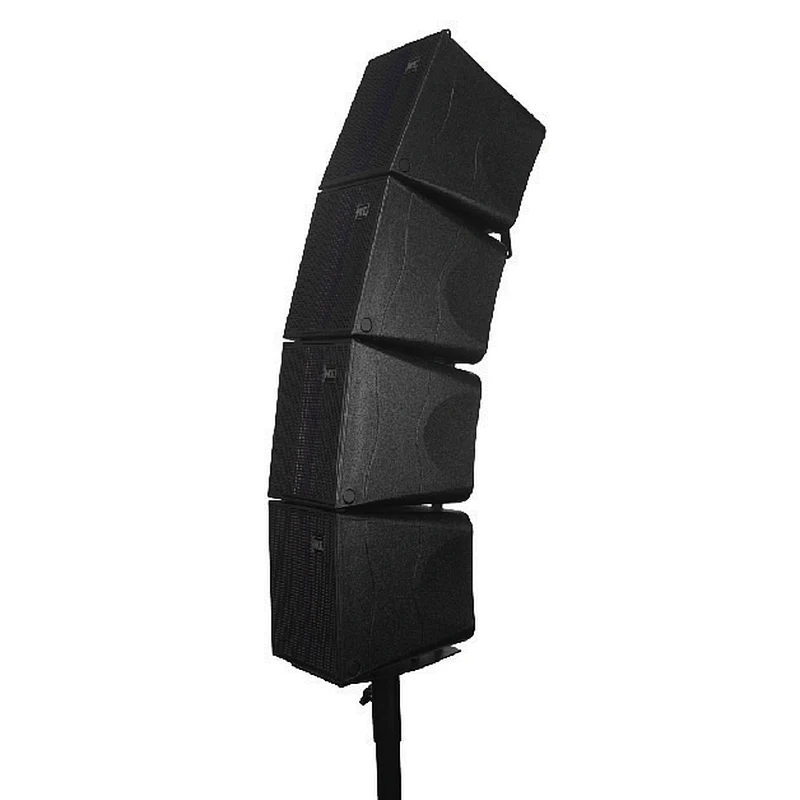

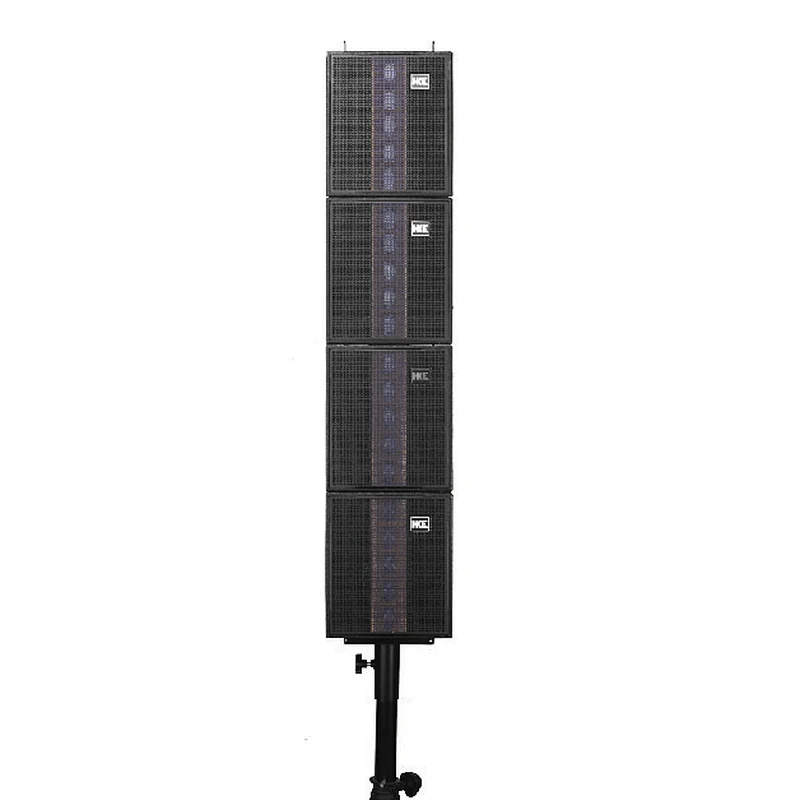

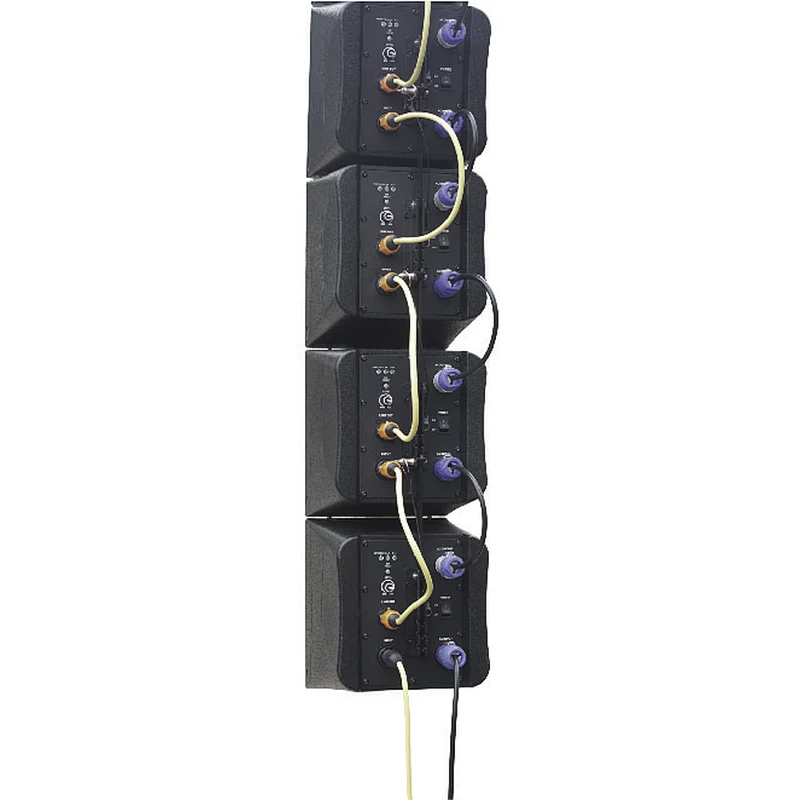

The lightly packed tweeter array allows a seamless coupling of satellites. The result: everyone in the audience enjoys the same excellent sound experience, regardless of where they are standing in the venue.

Bill Series line array active system is perfect for outdoor line array and indoor line array. One active line array Bill set is suitable for 800-1000㎡.

FEATURES

  • Enclosure PP+glass fiber

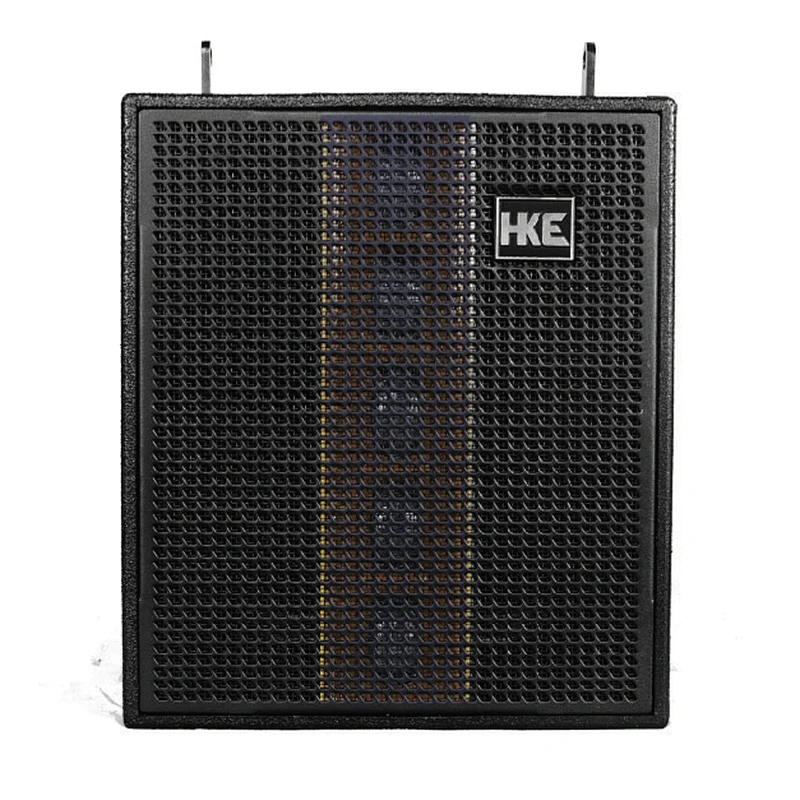

  • 6.5'' line array active system
  • 1*6.5'' woofer, 1'' VC, 22 OZ magnet
  • 5*1'' PEN Tweeter, Neodymium
  • Class-D, 96K Hz 48Bit sampling frequency DSP pricessor

SPECIFICATIONS

ModelBill-6
Type6.5'' line array active system
Freq. Response (-10dB)100 Hz-20k Hz
Sensitivity 1W@1M98 dB
Power Output(RMS)80 watts
Nominal Impedance4 ohms
LH6.5'' woofer, 1'' VC, 22 OZ
HF5*1'' tweeter, Neodymium
AmplifierClass-D

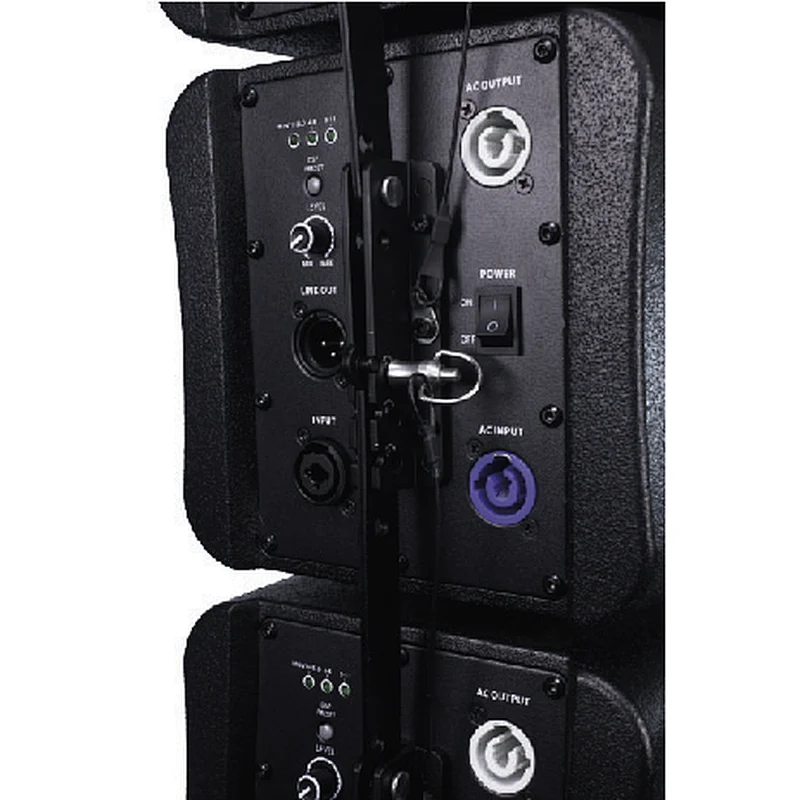

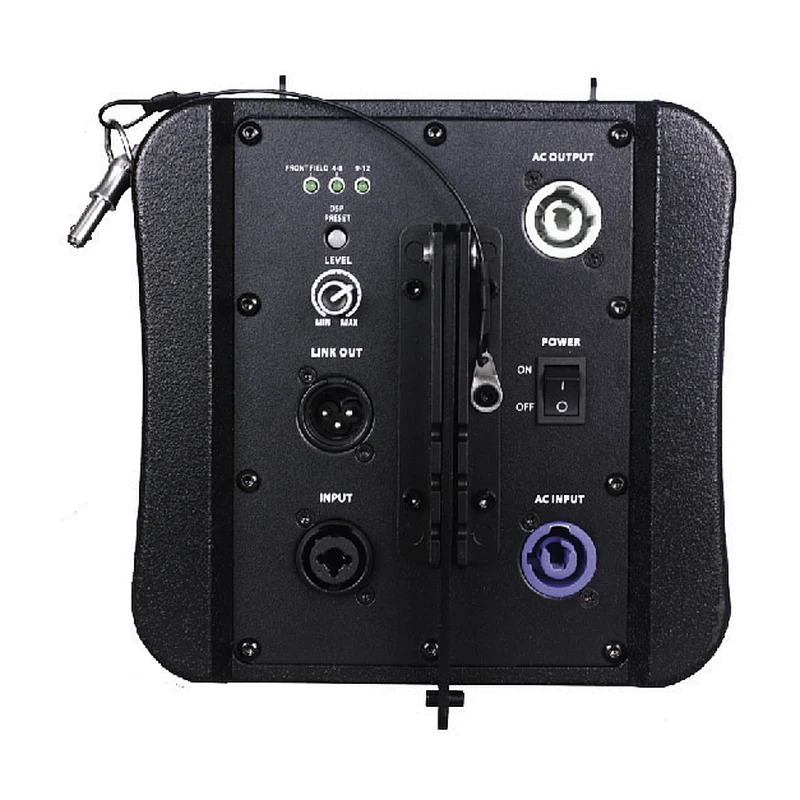

ControlsOn/ off switch, Rotary/ push

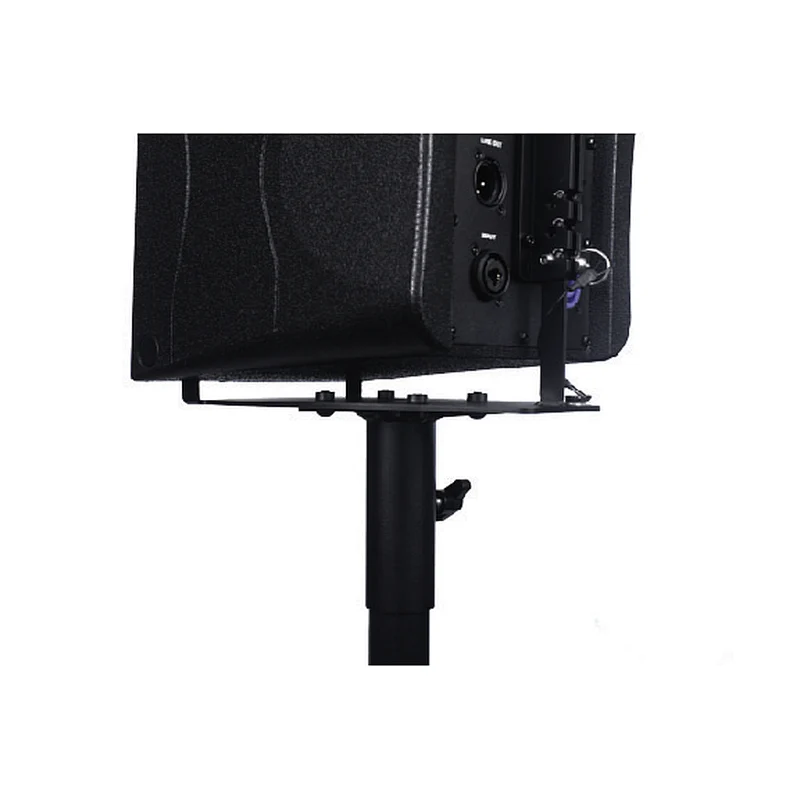

Line input connectors1*Combo(XLR/ Jack)
Line output connectors
1*XLR
DSP96K HZ 48 Bit Sampling frequency DSP Processor
Power supply230 V AC, 50 Hz

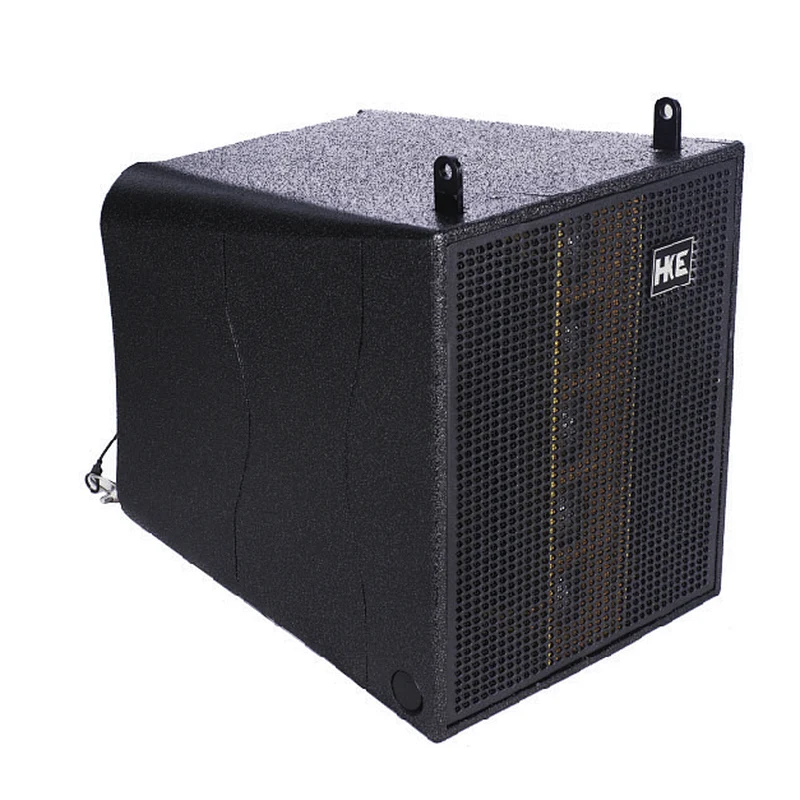

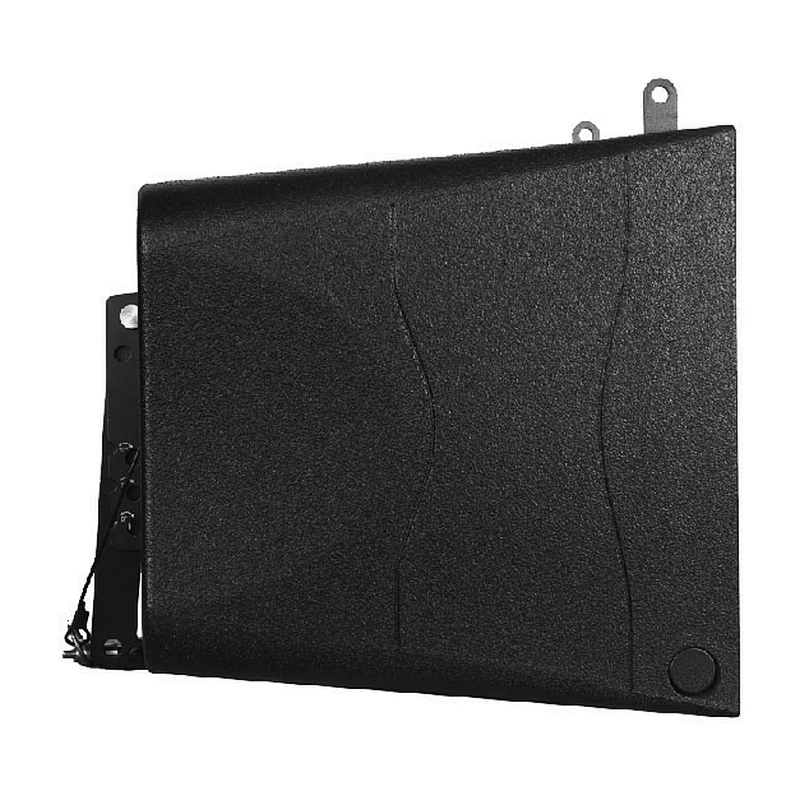

Cabinet materialPP+glass fiber
Cabinet surfacePowder coating
Dimensions(mm)190*220*225
