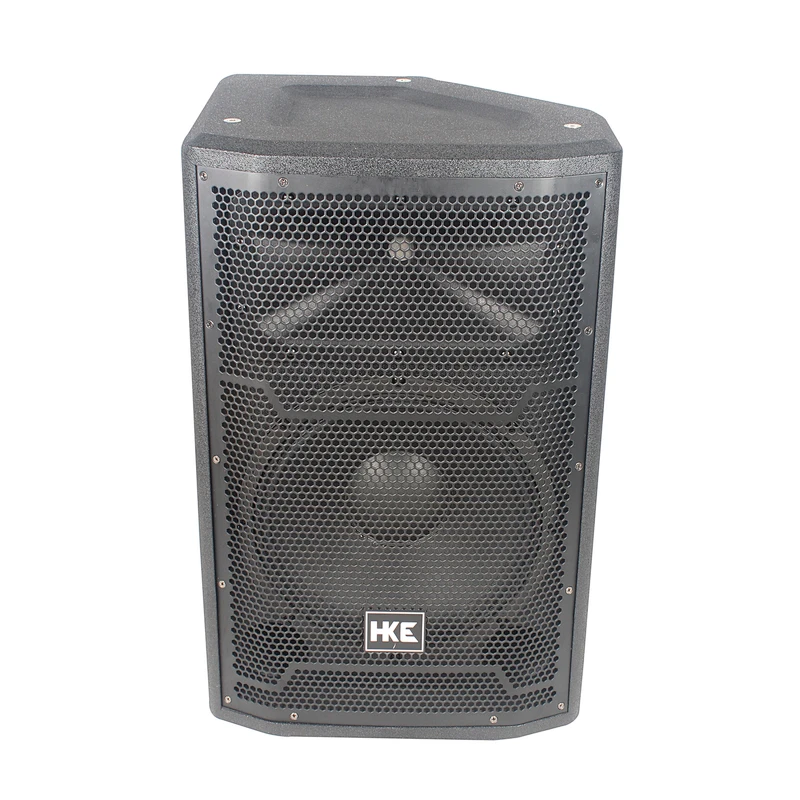

MXB-715
MXB-715

MXB-715

Model NO.
MXB-715
15" Two-Way Full-Range Main System/Floor Monitor
Quantity:
15"Two-Way Full-Range Main System/Floor Monitor

MXB-715 is a compact and versatile speaker in the PR700 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA.

FEATURES
  • ·135 dB peak SPL
  • ·15"Differential low-frequency driver for low-distortion and higher SPL
  • ·1.75"diameter next generation JBL neodymium compression driver
  • ·JBL designed waveguide for accurate coverage
  • ·Efficient Class-D amplifier technology
  • ·Optimized EQ for monitor or front-of-house applications
  • ·DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
  • ·Line level and direct microphone input capability
  • ·Professional XLR-1/4"combination inputs, RCA inputs, and XLR loop-through
  • ·Multi-angle enclosure for main PA or floor monitor applications
  • ·Integrated 36 mm pole mount socket with angle down tilt
  • ·Injection molded handle with backing cup for easy transport

SPECIFICATIONS
ModelMXB-715
Type15'' 2-way full range monitor
Freq. Response (-10dB)50Hz-20KHz
Sensitivity 1W@1M99 dB
Power Handling(continuous/program/peak)500/1000/2000 watts
Nominal Impedance4 ohms
LF15'' woofer, 3'' VC, 90 OZ
HF1.75'' Titanium
Enclosure15mm MDF
Appearance FinishTexture painting
Shipping Weigh32.00 kg (70.61 lb)
Shipping Box495x408x769 mm (0.155m³)(19.49x16.06x30.28 in)
