Model NO.
DH-DE10

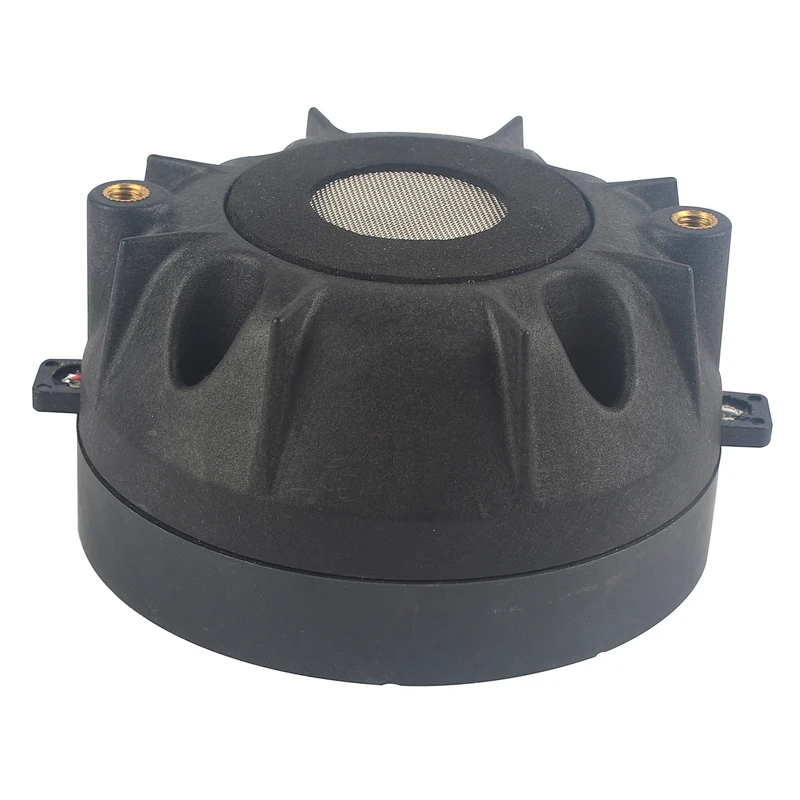

Compression Driver DH-DE10
Quantity:

Compression Driver DH-DE10

The driver uses a very high output Ferrite based permanent magnet to insure high sensitivity. The weather resistant performance of the DH-DE10 is insured by the use of a highly impregnated phenolic diaphragm assembly.


FEATURES

  • Medium Format Wide Bandwidth Compression Driver
  • 1” Exit Diameter
  • 20 Watts Peak Power Handling
  • Based 1” Diaphragm Diameter
  • Bolt On Mounting
  • Ferrite Magnetics
  • Flange

SPECIFICATIONS

Voice Coil Diameter25.4 mm / 1 in
Nominal Impedance8 Ω
Power Capacity20 W RMS
Sensitivity @ 1W/1M107 dB
Frequency Range2 KHz- 18 KHz
Throat Diameter25.4 mm / 1 in
FittingFlange
MagnetFerrite
Voice Coil Winding MaterialRound or Ribbon Aluminium Wire
Voice Coil Former MaterialKapton
DiaphragmMylar
Net Weight0.8 kg / 1.77 lbs
Pcs/CTN8 pcs
Shipping Box220x220x150 mm / 8.66x8.66x5.91 in
