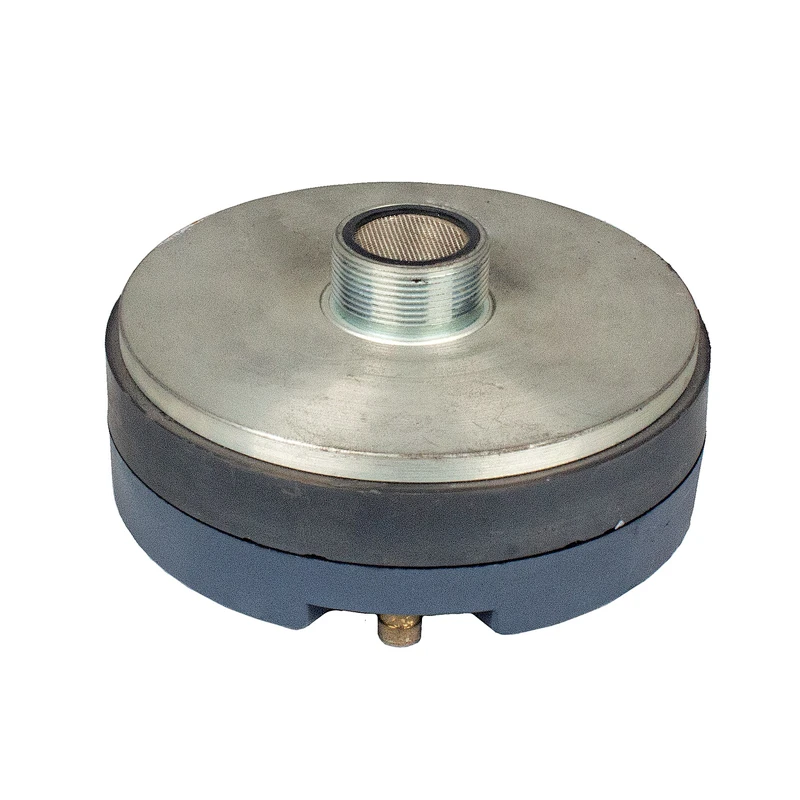

Full Range Titanium Compression Driver DH-4403
Quantity:

Full Range Titanium Compression Driver DH-4403

The driver uses a very high output Ferrite based permanent magnet to insure high sensitivity. The weather resistant performance of the DH-4403 is insured by the use of a highly impregnated phenolic diaphragm assembly.


FEATURES

  • Medium Format Wide Bandwidth Compression Driver
  • 1” Exit Diameter
  • 50 Watts Peak Power Handling
  • Pure Titanium Based 1.75” Diaphragm Diameter
  • Bolt On Mounting
  • Ferrite Magnetics
  • Screw

SPECIFICATIONS

Voice Coil Diameter44.4mm/1.75in
Nominal Impedance8 Ω
Power Capacity50 W RMS
Sensitivity @ 1W/1M108 dB
Frequency Range1 KHz-20 KHz
Throat Diameter25.4 mm/ 1 in
FittingScrew
MagnetFerrite
Voice Coil Winding MaterialRound or Ribbon Aluminium Wire
Voice Coil Former MaterialKapton
DiaphragmTitanium
Net Weight1.70 kg / 3.75 lbs
Pcs/CTN6 pcs
Shipping Box432x265x105 mm / 17.01x10.43x4.13 in
