Ally Series-small active line array speakers
Ally series is a new small active line array speakers which can be achieved with more than 68 combinations by 5 kinds of full-range passive system satellites（3 are economical without suspension and 2 have suspension ) and 9 kinds of line array subwoofer( 4 are 1.1 pa system and 2.1 pa system).
The Ally series line array pa system can be combined freely according to the needs of customers, suitable for various occasions of the line array pa system.

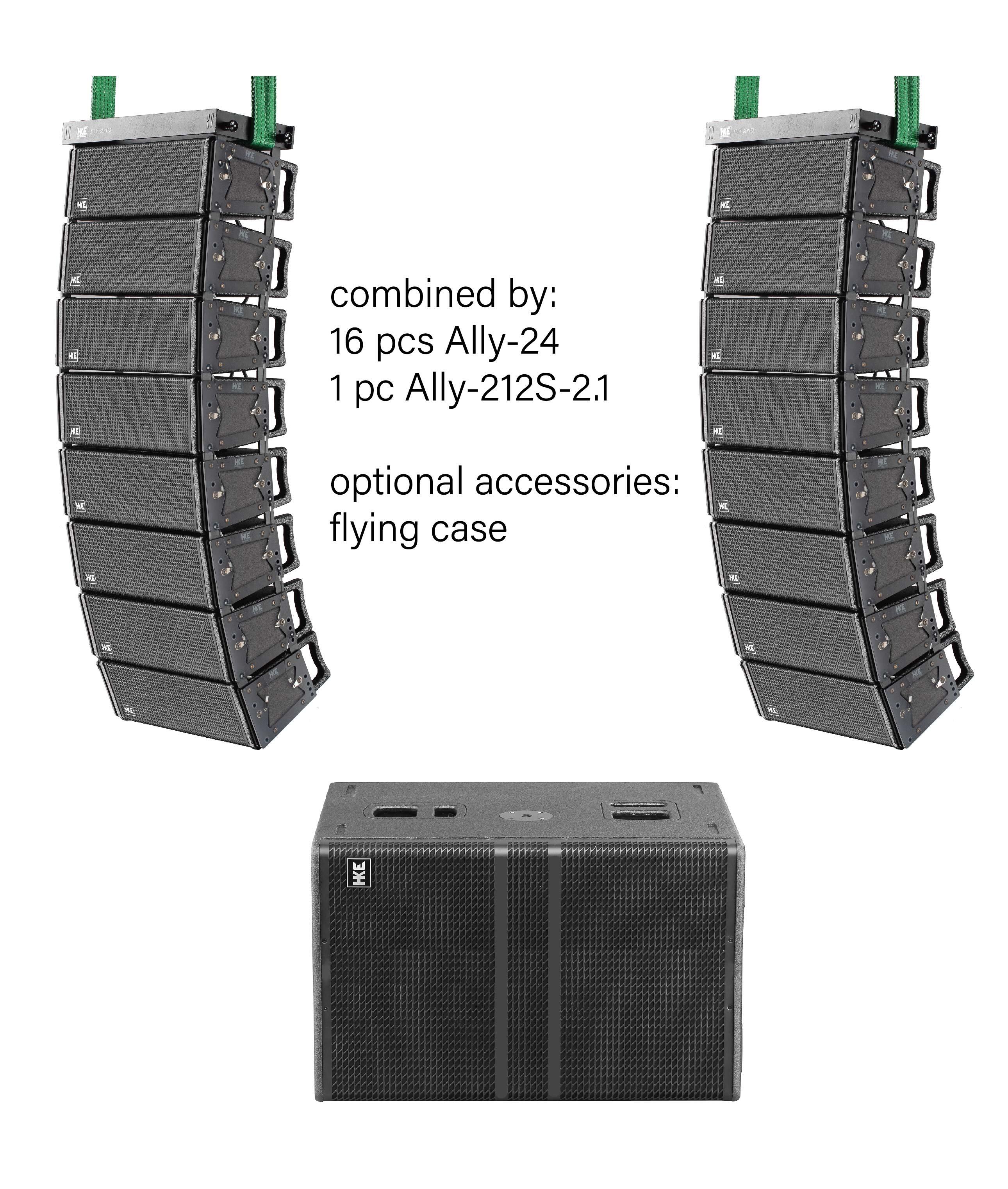

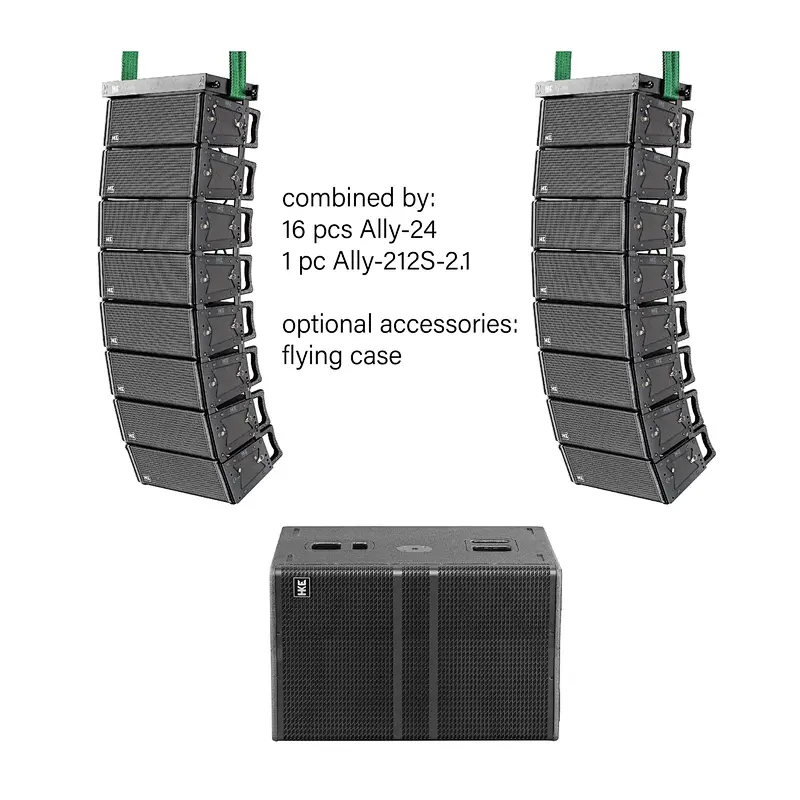

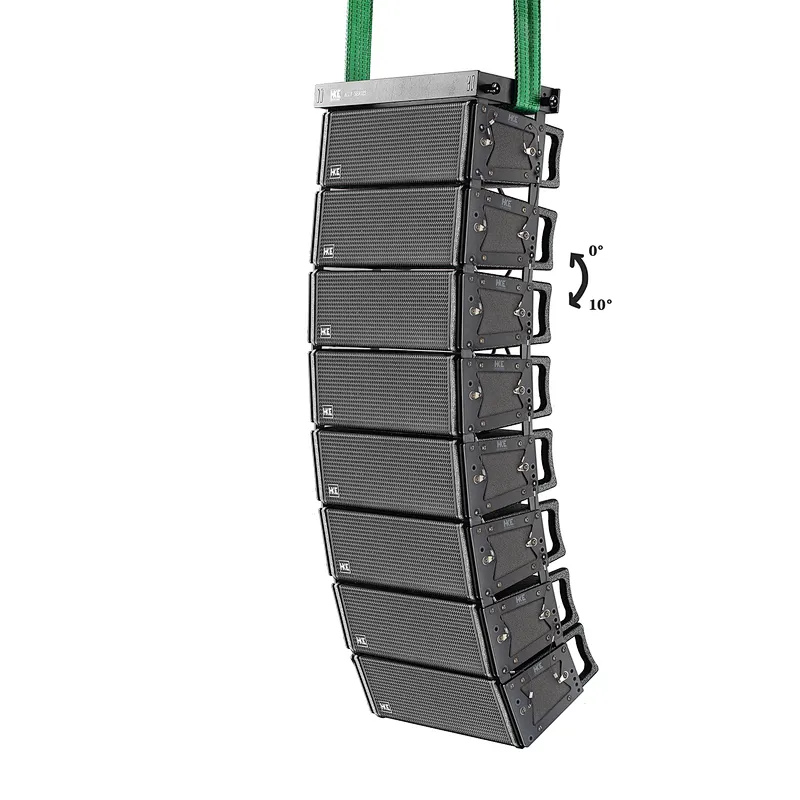

ALLY SERIES is high end surround sound system for outdoor and indoor line array pa system. Ally-212S-2.1 set combination with 16 pcs Aly-24 and 1 pc Ally-212S-2.1, with the help of remote broadcast systems, 2.1 pa system is realized in small and medium Spaces. The small active line array speakers is hoisting installation and linear array design,has the advantages of compact combination, lightweight, and convenient engineering assem.
FEATURES
Ally-24
- Enclosure 12mm plywood
- Grille steel grille with acoustic fabric
- Appearance Finish Texture painting

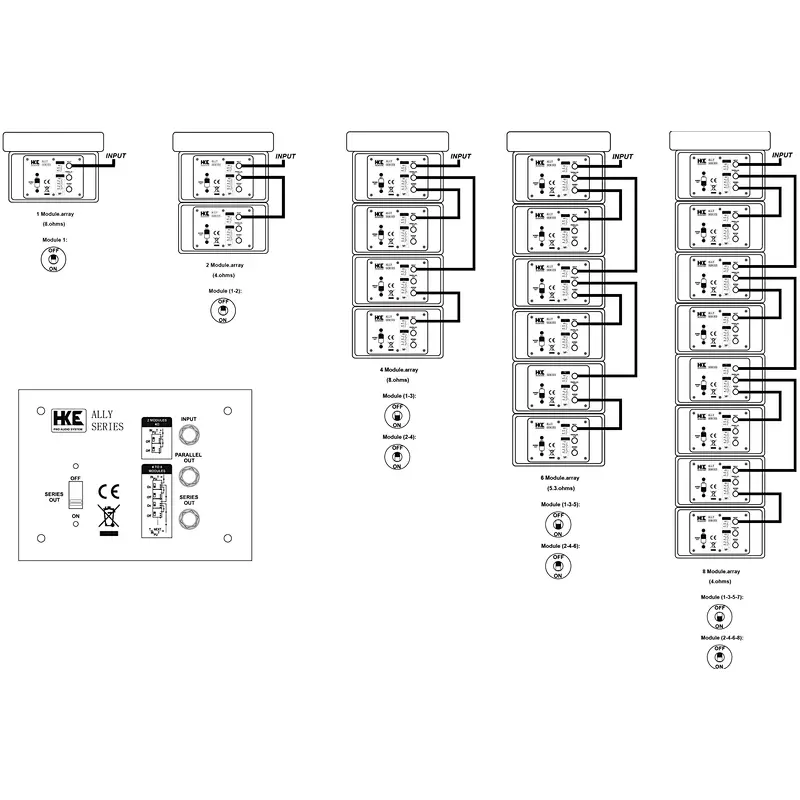

- Connectors Parallel or series 6.3mm socket/selection switch
- Suspension Yes

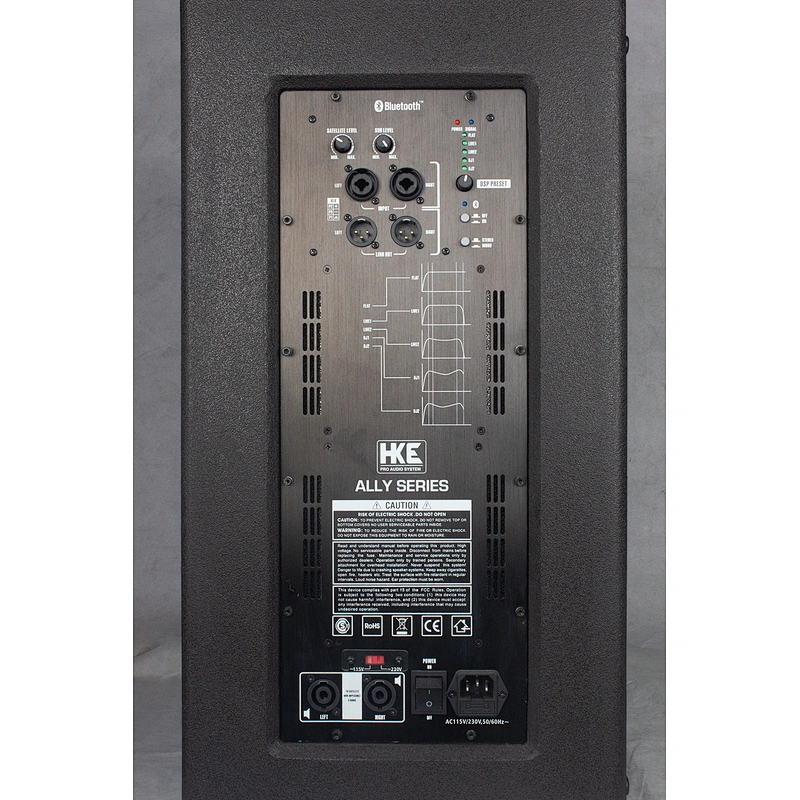

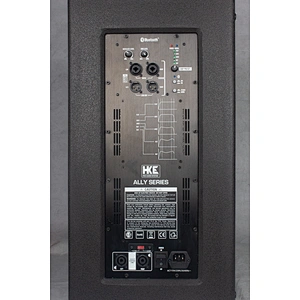

Ally-212S-2.1- Dual 12 active line array subwoofer
- Enclosure 15mm plywood
- Grille steel grille with acoustic fabric
- Appearance Finish Texture painting
- Amplifier Power to Subwoofer 400W RMS at 4 Ohm
- Amplifier Power to Satellites 200W RMS at 8 Ohm
SPECIFICATIONS
satellite
| Model | ALLY-24 |
| Type | Dual 4'' 2-way passive system |
| Freq. Response (-10dB) | 150Hz-16kHz |
| Sensitivity 1W@1M | 109 dB |
| Power Output(RMS) | 60 watts |
| Nominal Impedance | 8 ohms |
| Driver | 4'' full range woofer, 1'' VC, 10 OZ |
| Enclosure | 12 mm plywood |
| Grille | Steel grille with acoustic fabric |
| Appearance Finish | Texture painting |
| Connectors | Parallel or series 6.3mm socket/ selection switch |
| Dimensions(mm) | 134X391x220 |
| Suspension | Yes |

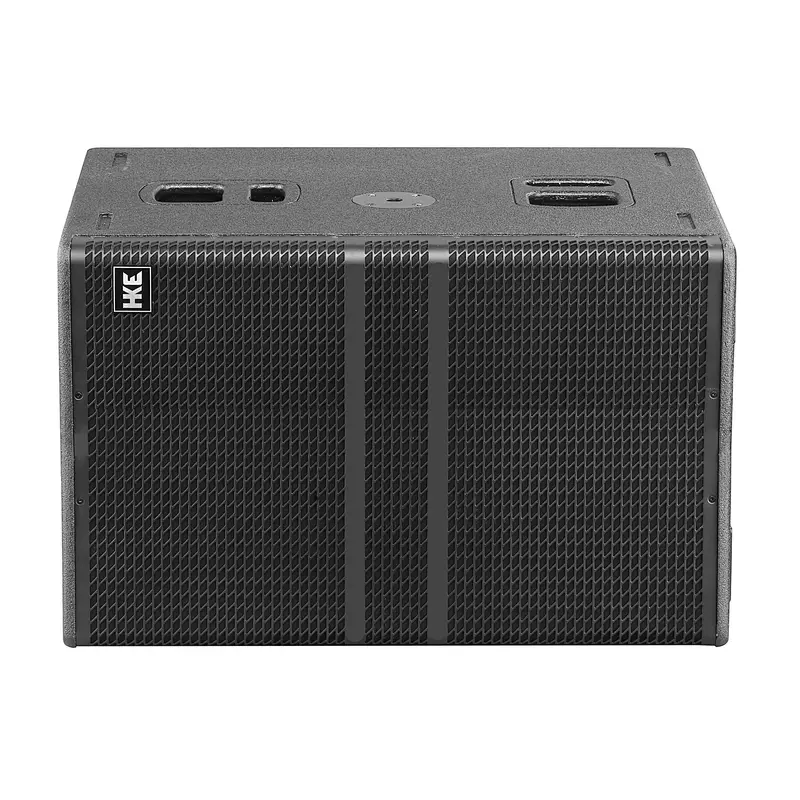

12 active line array subwoofer
| Model | ALLY-212S-2.1 |
| Type | Dual 12 active subwoofer, 2.1 function |
| Freq. Response (-10dB) | 45Hz-250Hz |
| Sensitivity 1W@1M | 125 dB |
| Power Output(RMS) | 700 watts |
| Nominal Impedance | 8 ohms |
| Driver | Dual 12"subwoofer, 3"VC, 90 OZ |
| Enclosure | 15 mm plywood |
| Grille | Steel grille with acoustic fabric |
| Appearance Finish | Texture painting |
| Dimensions(mm) | 500X800X610 |
