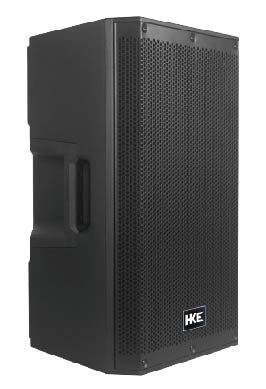

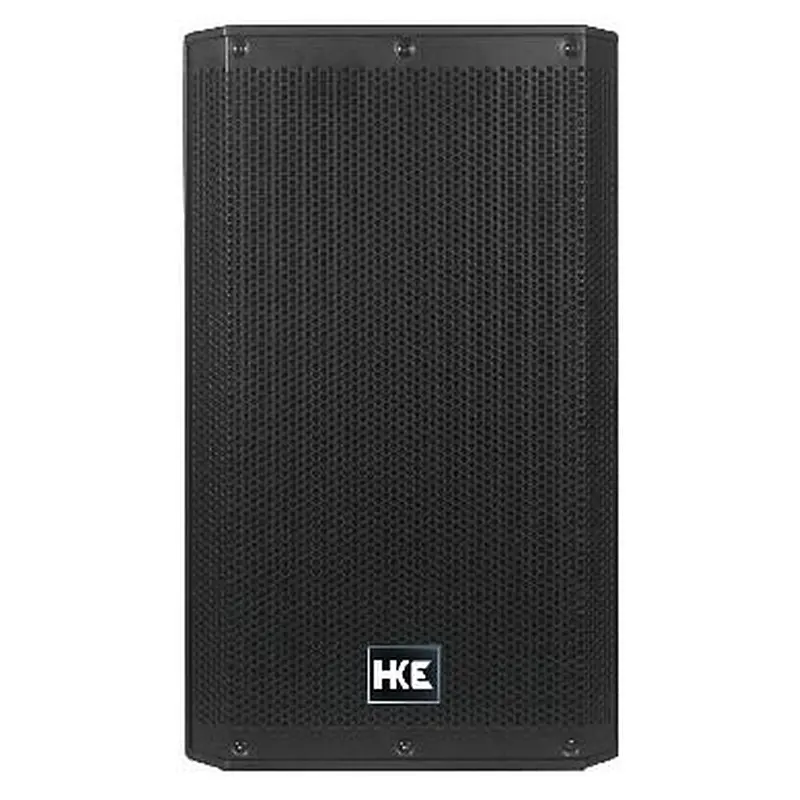

PCF-12A speaker 12inch full range speaker, active speaker with 2.38''VC, 63 OZ 12'' woofer and 1.75'' PEN.
500W Class-D, 400w to the woofer and 100w to the driver.
Drawing on the quality features of the RCF build quality and packaging, it is the most versatile speaker for professional applications - on the road, on the stage, and also suitable for fixed mounting.

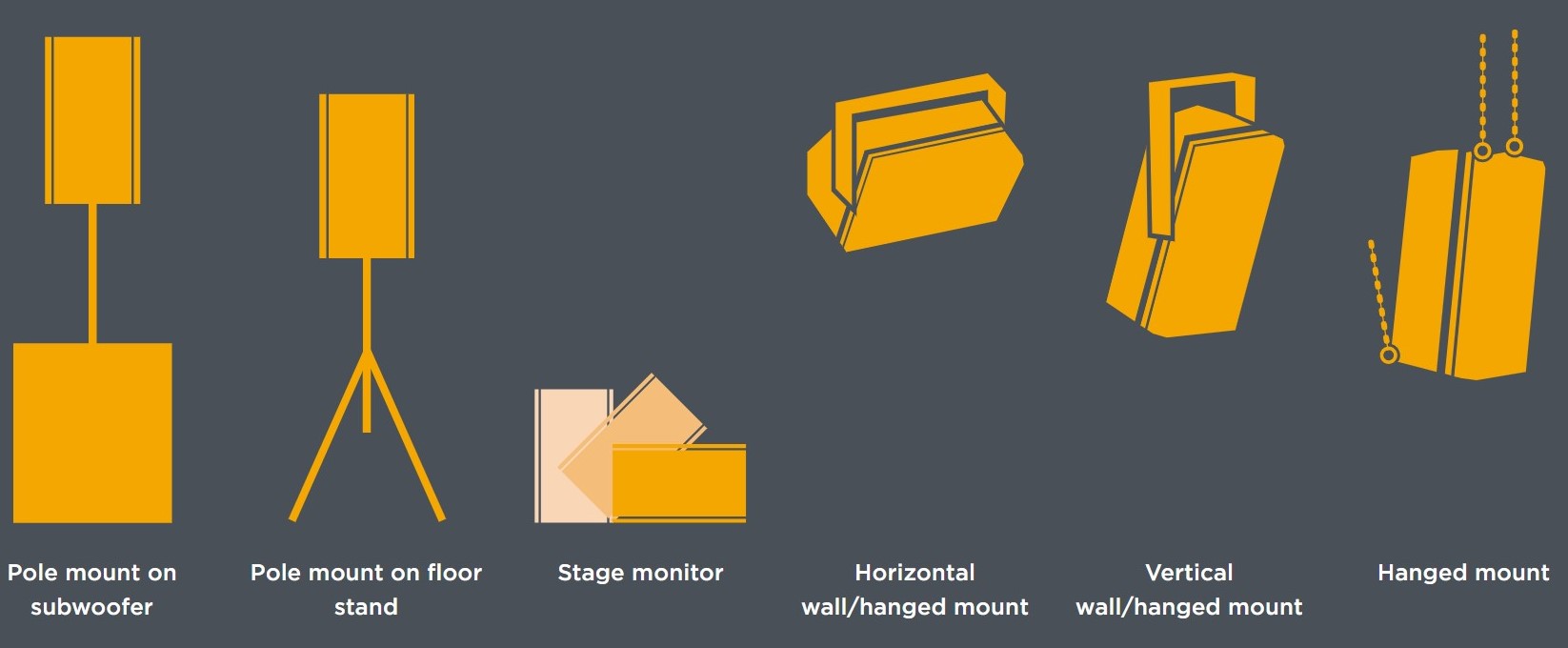

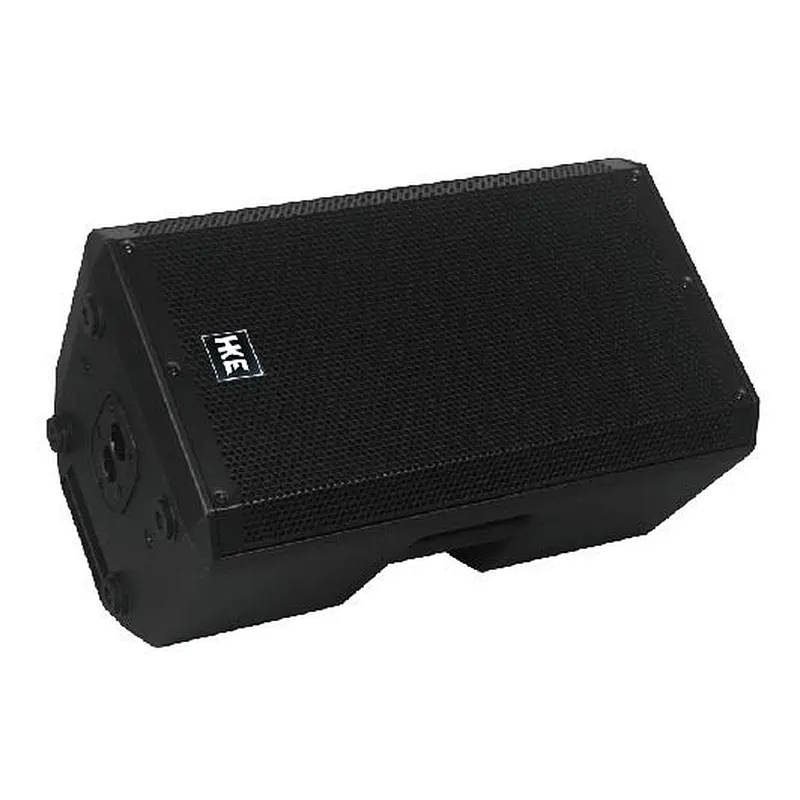

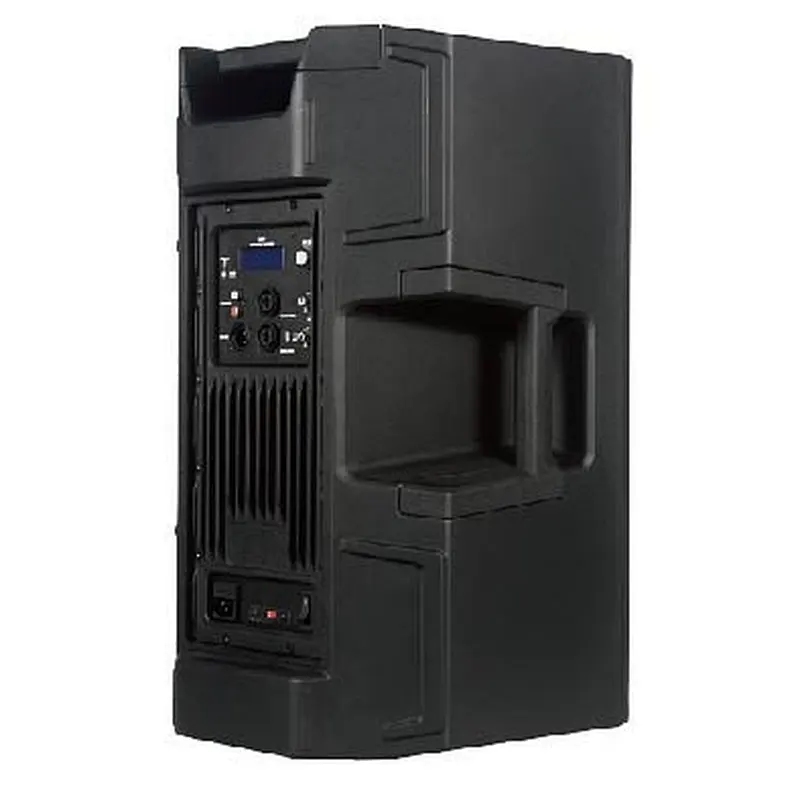

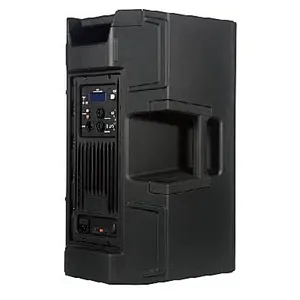

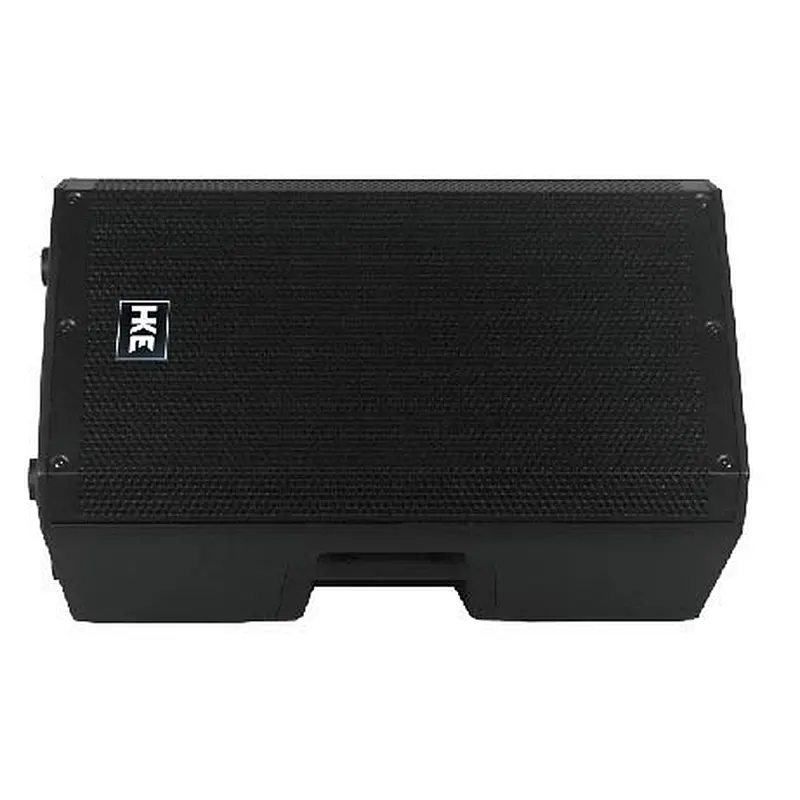

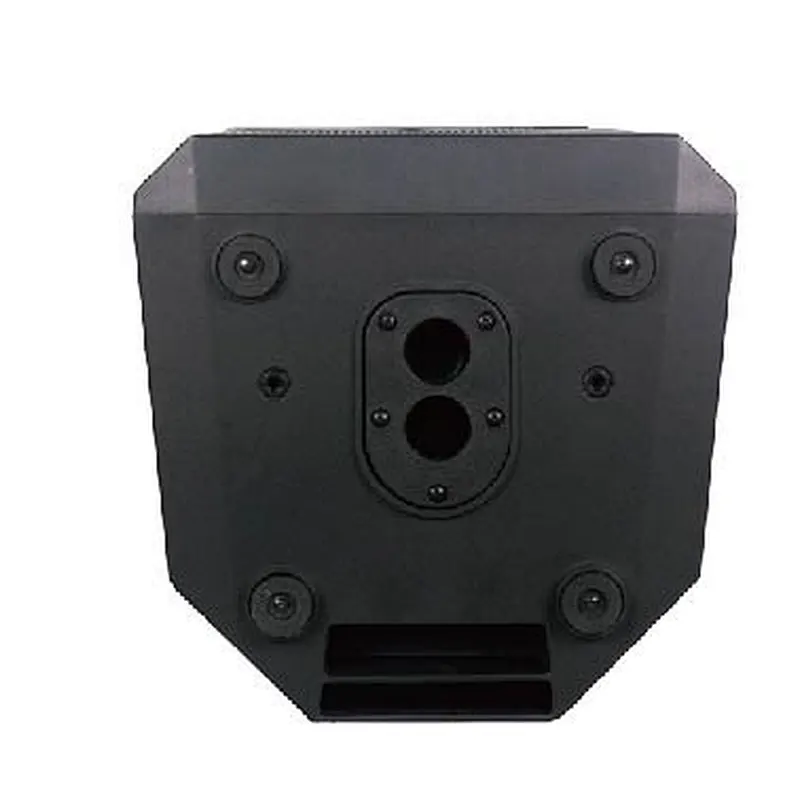

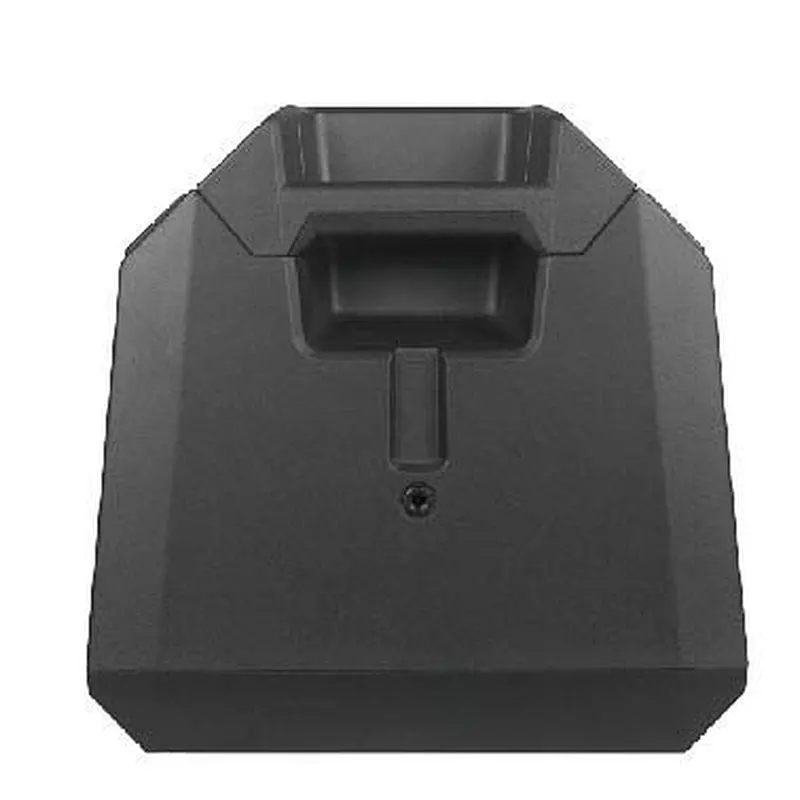

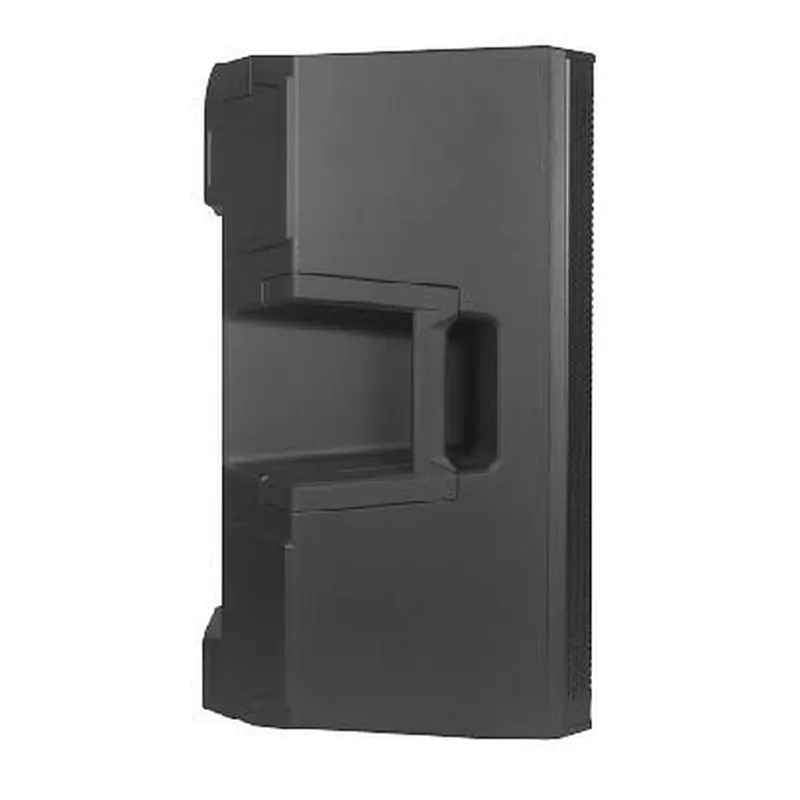

PCF-12A can operate as either the main system or as a floor monitor. This flexibility makes it a smart choice for a wide range of live sound applications. The cabinet is easy to carry, with ergonomic handles on both sides and the top. The lower side includes a steel pole support for mounting on a stand or subwoofer pole. Each model can also be flown, wall- or truss-mounted using multiple M10 rigging points and special accessories. From molding to the final texture, PCF-12A offers maximum strength for intensive use on the road, also perfect for fixed installation.
| Item No. | PCF-12A |
| Type | 12inch full range speaker |
| Freq.Response(-10dB) | 60-18K Hz |
| Sensitivity 1W@1M | 97 |
| Nominal Impedance | 4 OHM |

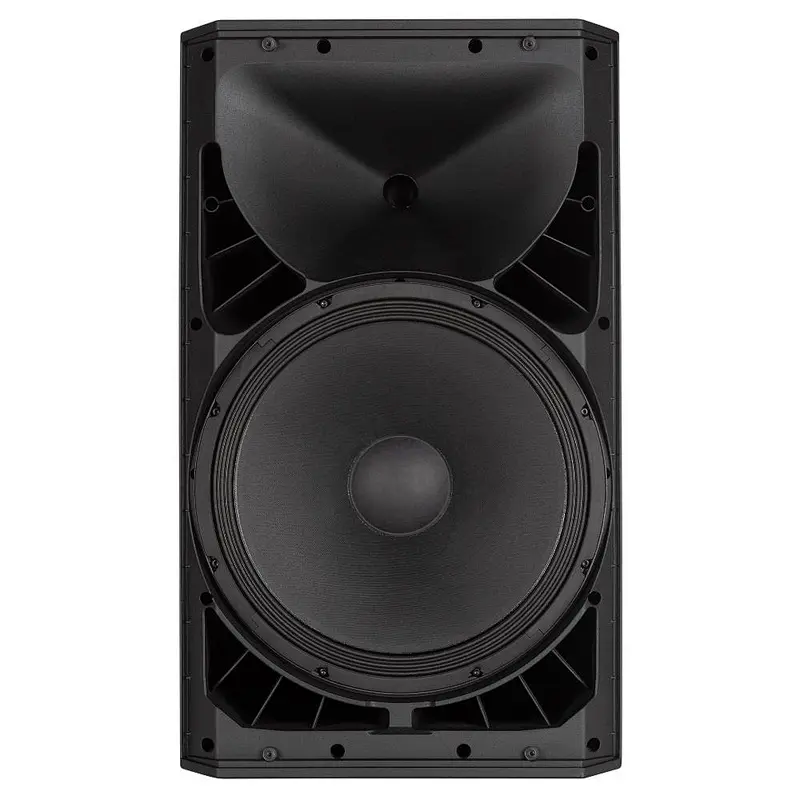

| LF | 12'' woofer,2.38''VC,63 OZ |
| HF | 1.75'' PEN |
| Enclosure | ABS/ Metal grille |

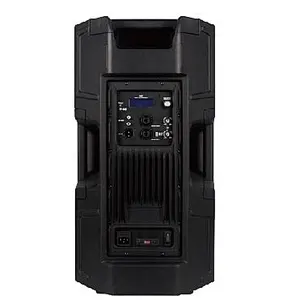

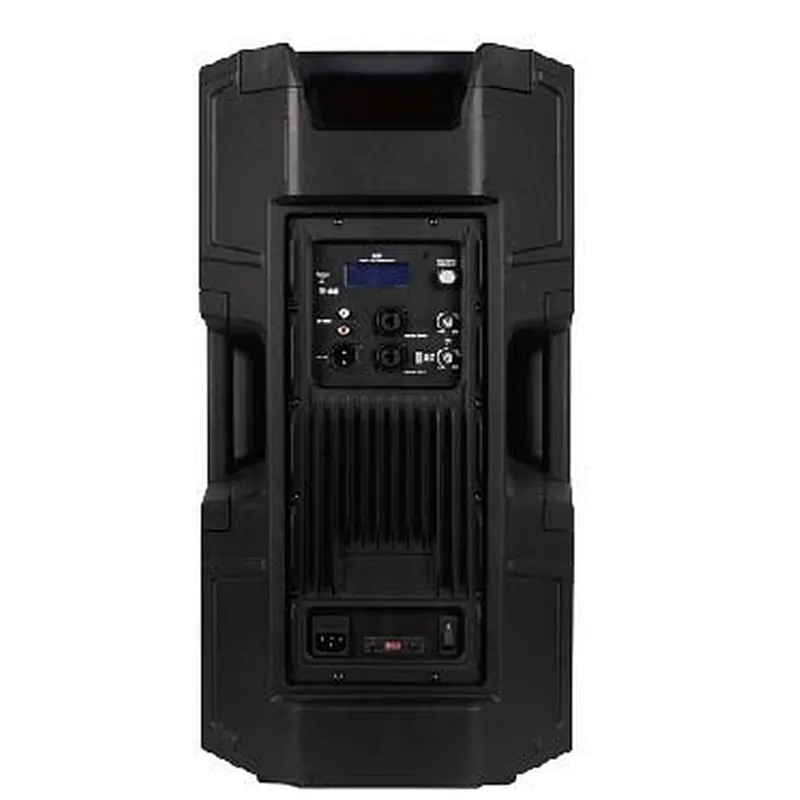

| Amp | Class-D with DSP, aluminum panel |
| Amp Power | LF 400W+ HF 100W |
| DSP | 96K HZ 48 bit sampling frequency DSP |
| Line output connectors | XLR |
| Line input connectors | XLR |
| Processor power supply | 230 V AC, 50 HZ |
