Model NO.
MXN-15A

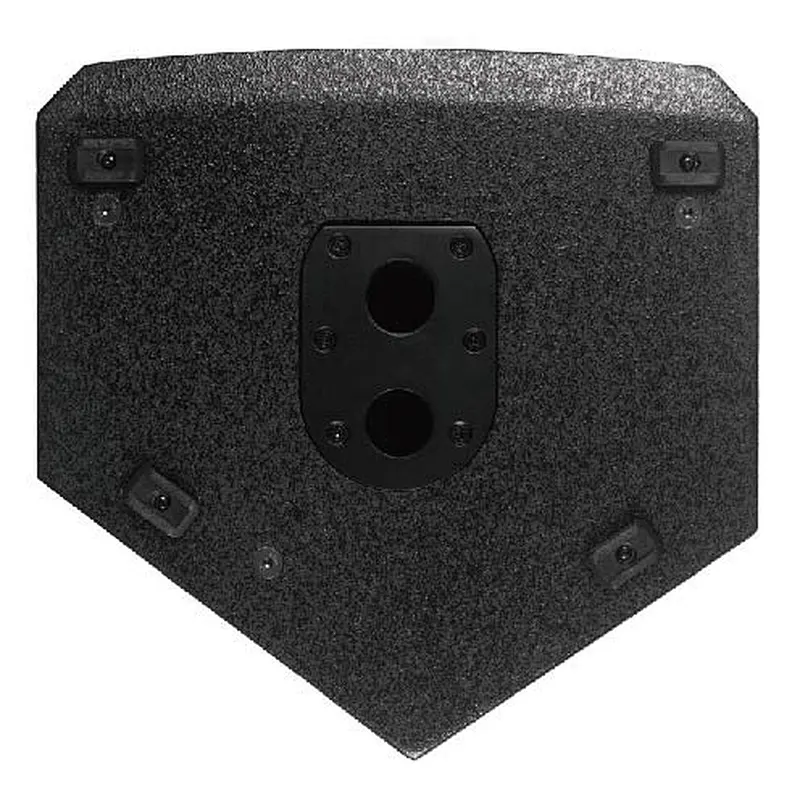

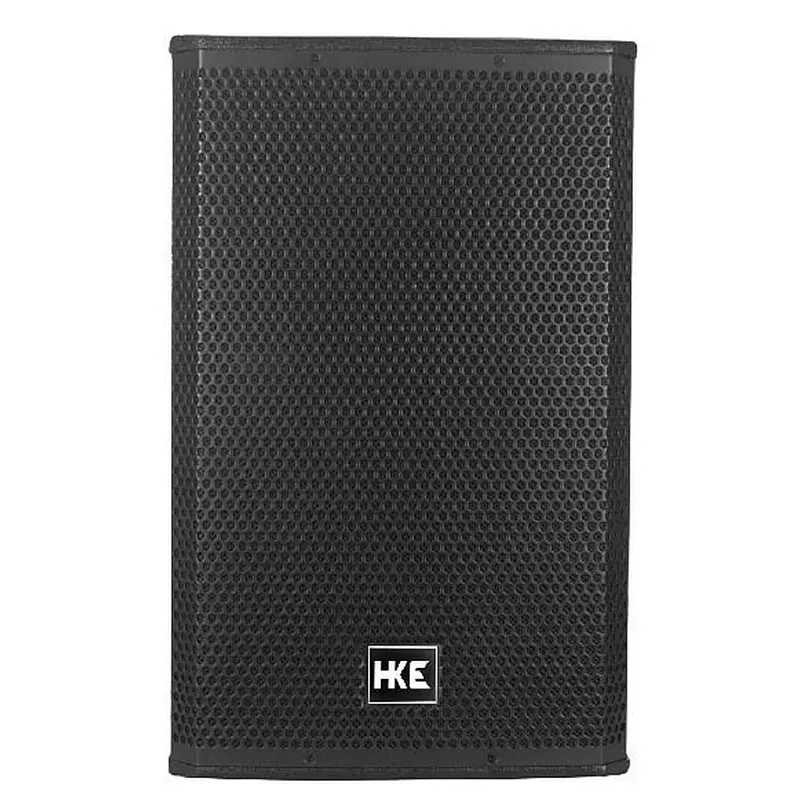

MXN-15A the new active 15inch wooden speaker, 15mm plywood, Class-H with 350W+60W. Ningbo Huake Sound professional speaker manufacturer.
Quantity:

MXN-12A: 15inch active wooden speaker/15inch wooden speaker

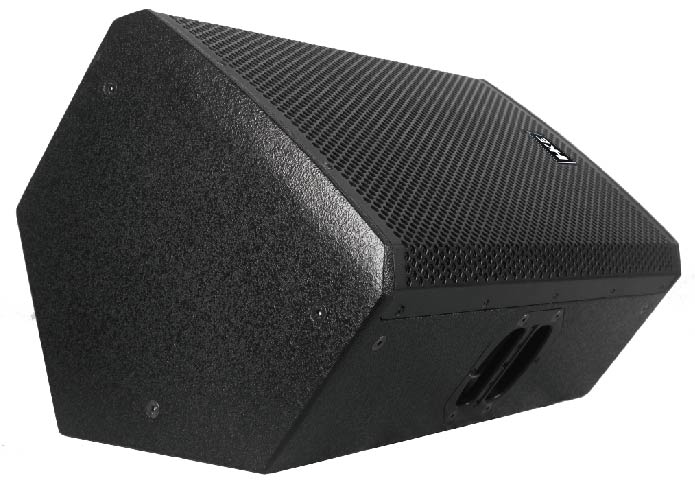

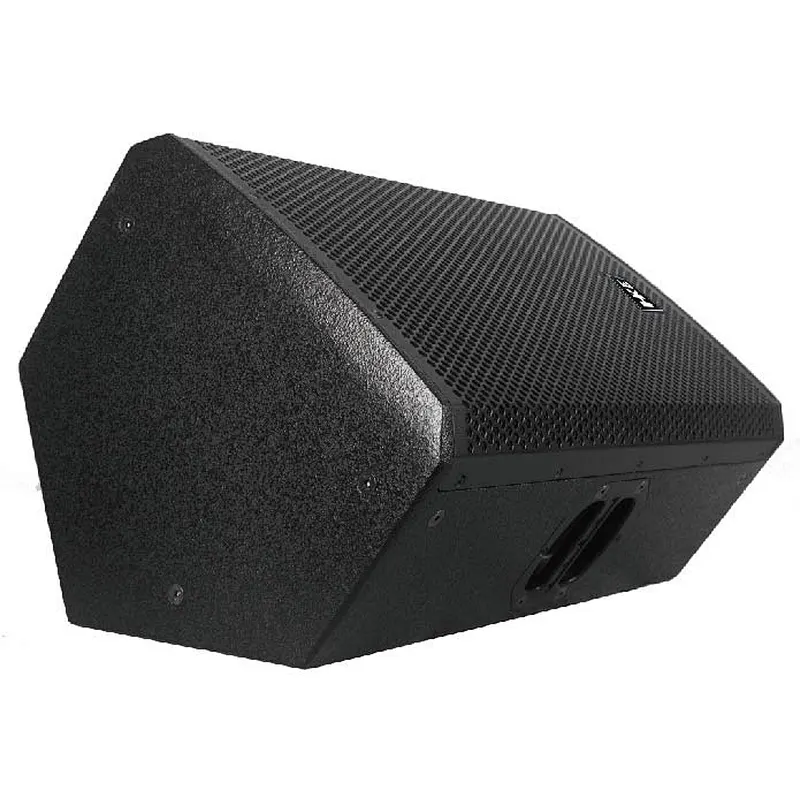

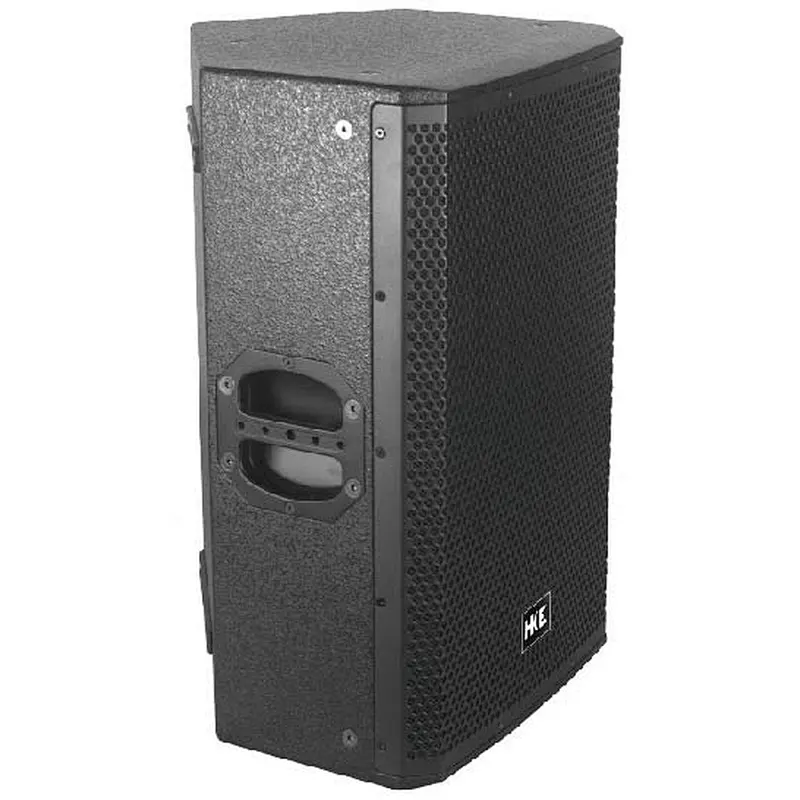

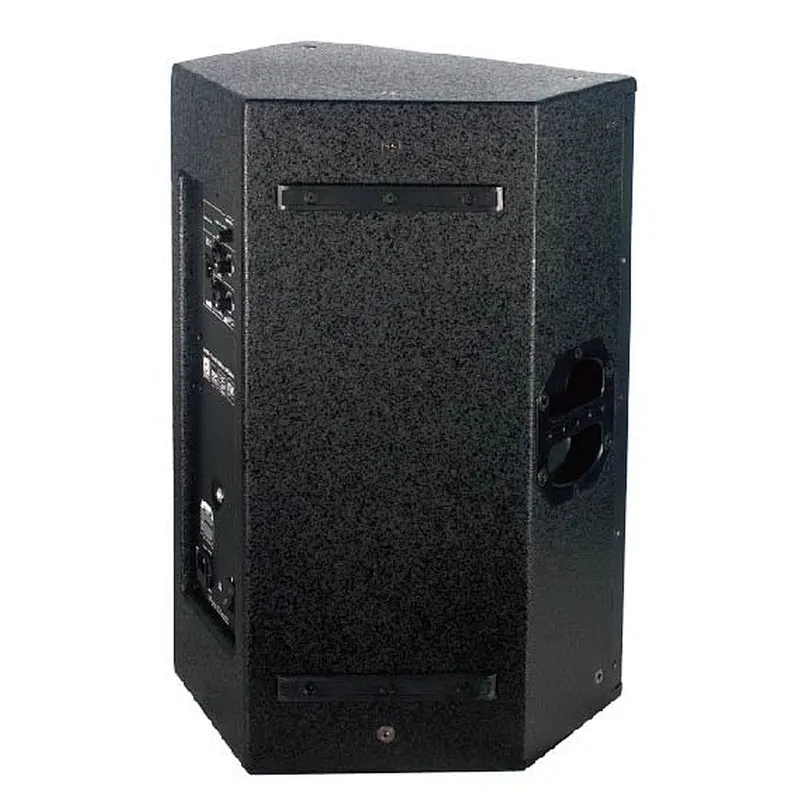

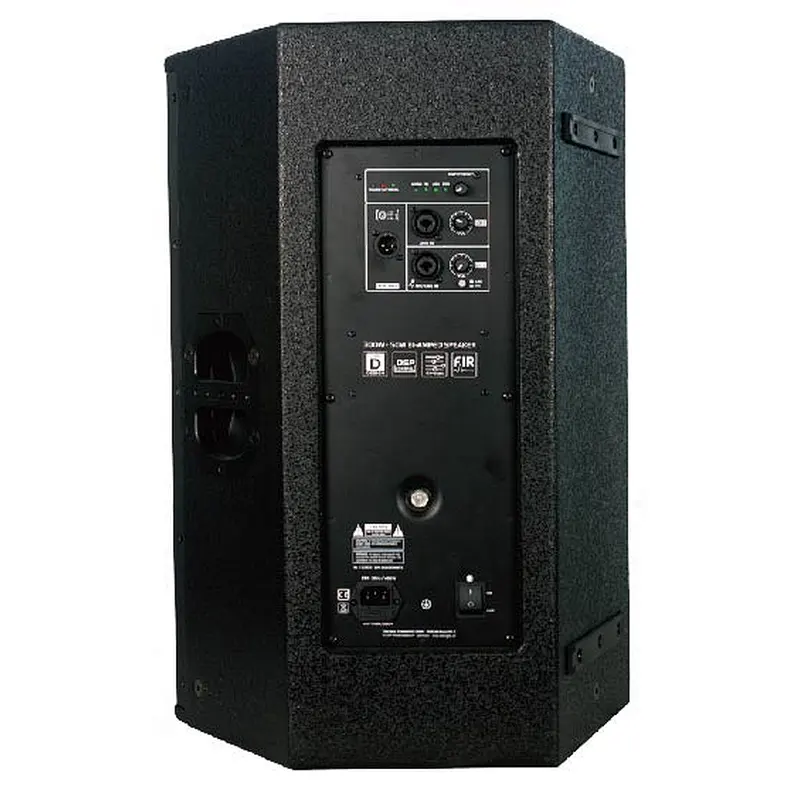

The 15inch active wooden speaker MXN-15A is the newest member of the full range wooden speaker family.15mm plywood compact package that is suitable for a wide range of sound reinforcement scenarios, including musicians, DJs, professional stage monitors, installations and other sound applications. The MXN-15A features a 15"LF driver and a 1.75"PEN compression driver, along with a 350W+60W Class-H power amplifier.

FEATURES

  • ·Speaker configuration
  • ·Active/passive: Active
  • ·Type: 2-Way full range
  • ·LF driver: 15"
  • ·MF driver: Not applicable
  • ·HF driver: 1.75"PEN
  • ·Power amp (active)
  • ·Amplifier type: H
  • ·Wattage: 500
  • ·Frequency response: 45Hz - 18K Hz
  • ·Max SPL: 98 dB
  • ·Enclosure: 15mm plywood

SPECIFICATIONS

ModelMXN-15A
Type15'' 2-way full range wooden speaker
Freq. Response (-10dB)45Hz-18KHz
Sensitivity 1W@1M98 dB
Power Handling500w
Nominal Impedance4 ohms
LF15'' woofer, 3'' VC, 90 OZ
HF1.75'' PEM
Enclosure15mm plywood
Appearance FinishTexture painting
AmplifierClass-H
Line outputXLR
Line inputXLR
DSP96K HZ 48 Bit sampling frequency DSP
Power supply230 V AC, 50Hz
